LBX9151H (3085659) - Giant-Vac 15" Extreme Leaf Blower, 9hp GIANT-VAC MODEL LBX9151H Parts Diagram

15" Extreme Leaf Blower, 9hp

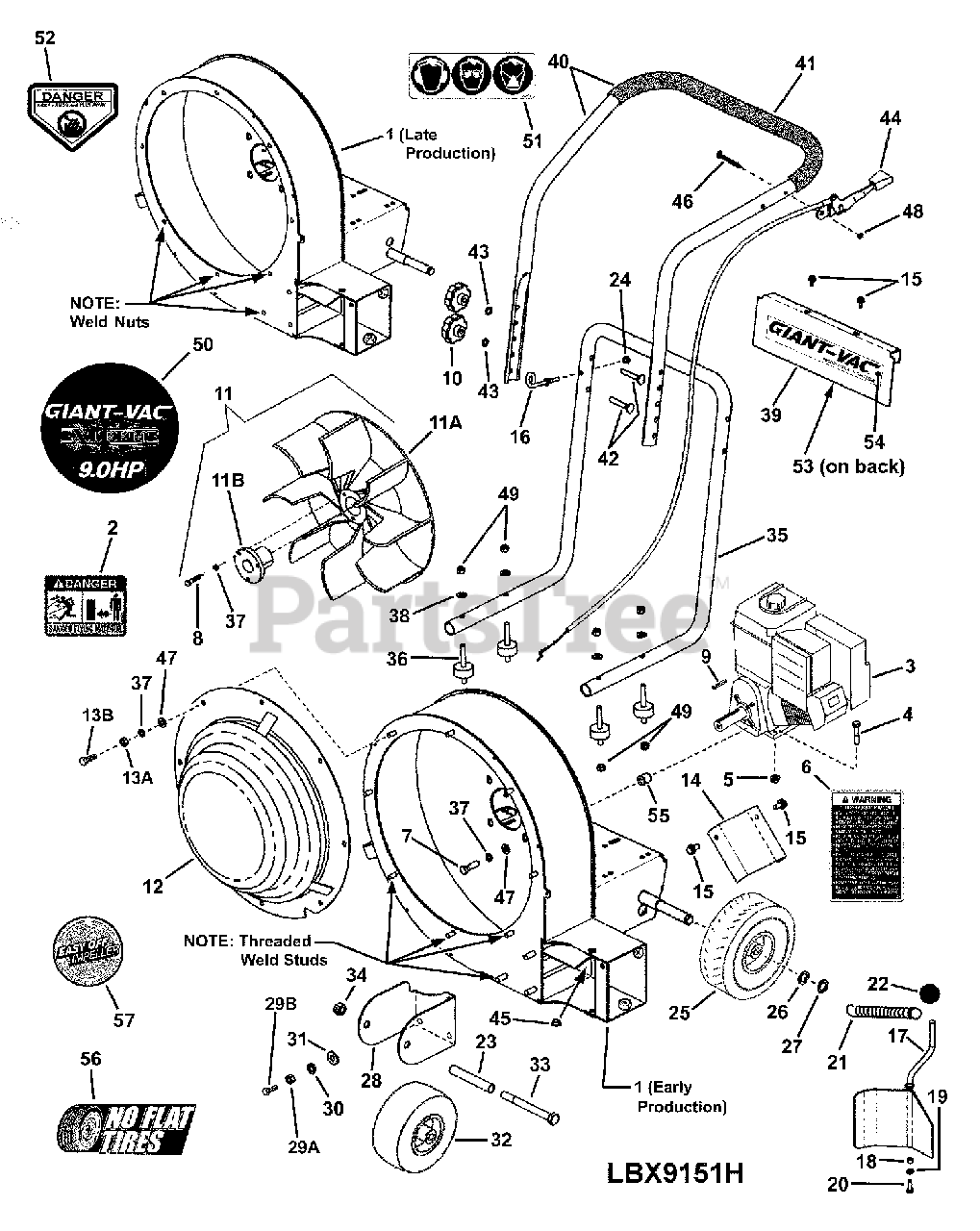

GIANT-VAC MODEL LBX9151H Parts Diagram

  • Title

1

Giant-Vac 3010268

WELDMENT, Housing - Extreme Blower

$

$

Currently unavailable

2

Giant-Vac 7033874

DECAL, Thrown Objects, Large
(Superseded to 7033874SM)

$

$

Not available

3

--

* ENGINE, Honda 9HP, Model GX270QAW

$

$

Not available

4

Giant-Vac 7091540

SCREW, 5/16-18 x 1-1/2 Hex Head Cap, GR 5
(Superseded to 703906)

$4.99

$

In Stock, Qty 7

0

5

Giant-Vac 7091601

NUT, 5/16-18 Hex Flange Lock, GR 5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

6

Giant-Vac 7033686

DECAL, Warning - Leaf Blower
(Superseded to 7033686SM)

$

$

Not available

7

Giant-Vac 7091513

SCREW, 5/16-24 x 1-3/4" Hex Head Cap, GR 5
(Superseded to 7091513YP)

$4.49

$

In Stock, Qty 14

0

8

Giant-Vac 7091527

SCREW, 5/16-18 x 1-1/4", Hex Head Cap, GR 5
(Superseded to 7091527YP)

$4.49

$

In Stock, only 4 left!

0

9

Giant-Vac 7010210

KEY, 1/4" Square x 2"
(Superseded to 703890)

Note: or 7012315 (1-7/16" long)

$4.99

$

In Stock, Qty 8

0

10

Giant-Vac 3071776

KNOB, Fluted (5/16-18 thread)
(Superseded to 3071776SM)

$

$

Not available

11

Giant-Vac 3021598

ASSEMBLY, 15" 9 Blade Impeller

Note: includes 11A, 11B & 3 ea. Items 8 & 37

$

$

Currently unavailable

11A

Giant-Vac 3021595

IMPELLER, Cast, 15" O.D.

Note: aluminum with 9 curved blades

$

$

Currently unavailable

11B

Giant-Vac 3021596

HUB, Taper-Lok, Type 1 - P1 x 1.000

Note: (1.938 OAL)

$

$

Currently unavailable

12

Giant-Vac 3020233

WELDMENT, Intake Baffle - Extreme
(Superseded to 3020233YP)

$230.99

$

Usually ships in 2-12 days

0

13A

Giant-Vac 7091511

NUT, 5/16-18 Hex, GR 5 or B
(Superseded to 7091511SM)

Note: Used on Early version Housing

$3.49

$

In Stock, Qty 20+

0

13B

Giant-Vac 7091318

SCREW, 5/16-18 x 3/4" Hex Head Cap, GR 5
(Superseded to 704287)

Note: Used on Late version Housing

$3.99

$

In Stock, Qty 19

0

14

Giant-Vac 3024500

DEFLECTOR, Side Air

$

$

Not available

15

Giant-Vac 7091523

SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, Qty 18

0

16

Giant-Vac 7046465

GUIDE, Rope (1/4-20 thread)

$

$

Not available

17

Giant-Vac 3024501

WELDMENT, Door Front/Side Discharge

$

$

Not available

18

Giant-Vac 3031014

BUSHING, Steel .250 IDx.375 ODx.25 Long
(Superseded to 3031014SM)

$11.99

$

Usually ships in 2-12 days

0

19

Giant-Vac 7027223

WASHER, 1/4" Split Lock
(Superseded to 7027223SM)

$3.99

$

Usually ships in 2-12 days

0

20

Giant-Vac 7091495

SCREW, 1/4-20 x 3/4" Hex Head Cap, GR 5
(Superseded to 703925)

$4.49

$

In Stock, Qty 7

0

21

Giant-Vac 3071782

SPRING, Extension
(Superseded to 3071782SM)

$

$

Not available

22

Giant-Vac 3031103

KNOB, Ball - 3/8-16 Metal Insert
(Superseded to 3031103SM)

$

$

Not available

23

Giant-Vac 3034053

TUBE, Front Wheel - Extreme

$

$

Not available

24

Giant-Vac 7090372

NUT, 1/4-20 Hex Center Lock, GR 5 or B
(Superseded to 703954)

$

$

Not available

25

Giant-Vac 3033276

ASSY., Wheel & Tire 4.10/3.50-4 "Flatfree"

$

$

Currently unavailable

--

Giant-Vac 3033151

BALL BEARING, 5/8 x1-3/8 (Not shown, part of 25)
(Superseded to 3033151SM)

Note: was 3033107

$4.49

$

Usually ships in 2-12 days

0

26

Giant-Vac 7091628

WASHER, .64 x .99 x .05 Flat
(Superseded to 7091628SM)

$4.49

$

In Stock, Qty 5

0

27

Giant-Vac 7012763

RING, External Retaining
(Superseded to 7012763SM)

Note: (TRU1500-62)

$4.49

$

In Stock, Qty 6

0

28

Giant-Vac 3033186

BRACKET, Front Wheel Mounting

$

$

Currently unavailable

29A

Giant-Vac 7091302

NUT, 3/8-16 Hex, GR 5 or B
(Superseded to 7091302SM)

$4.49

$

In Stock, Qty 9

0

29B

Giant-Vac 7091304

SCREW, 3/8-16 x 1" Hex Head Cap, GR 5
(Superseded to 703407)

$11.99

$

In Stock, Qty 5

0

30

Giant-Vac 7091320

WASHER, 3/8" Split Lock
(Superseded to 703454)

$3.49

$

In Stock, Qty 11

0

31

Giant-Vac 7090517

WASHER, 3/8" Flat
(Superseded to 7090517SM)

$4.49

$

In Stock, Qty 8

0

32

Giant-Vac 3033300

ASSY., Tire & Wheel 9 x 3.50-4 "Flatfree"

$

$

Not available

33

Giant-Vac 7091822

BOLT, 1/2-13 x 5" Hex Head Cap
(Superseded to 703886)

$6.49

$

In Stock, Qty 12

0

34

Giant-Vac 7091894

NUT, 1/2-13 Hex Center Lock, GR 5
(Superseded to 703894)

$3.49

$

In Stock, Qty 10

0

35

Giant-Vac 7033753

HANDLE, Lower Folding - Wide - Blower
(Superseded to 7033753YP)

$231.99

$

Usually ships in 2-12 days

0

36

Giant-Vac 3032160

MOUNT, Vibration (5/16-18, both ends)
(Superseded to 3032160YP)

$31.99

$

In Stock, only 3 left!

0

37

Giant-Vac 7091315

WASHER, 5/16" Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

38

Giant-Vac 1717312

WASHER, 5/16" Curved
(Superseded to 1717312SM)

$

$

Not available

39

Giant-Vac 7033866

DASH PANEL, Blower - Wide
(Superseded to 7033866YP)

$28.99

$

Usually ships in 2-12 days

0

40

Giant-Vac 3023276

ASSY, Upper Handle & Grip - Wide
(Superseded to 3023276YP)

Note: (p/n 7033696 + grip)

$188.99

$

Usually ships in 2-12 days

0

41

Giant-Vac 7074422

GRIP, 1.0 x 21-1/2" Foam
(Superseded to 7074422SM)

$16.99

$

Usually ships in 2-12 days

0

42

Giant-Vac 7091189

BOLT, 5/16-18 x 2", Curved Hd. Sq. Neck
(Superseded to 703059)

$4.49

$

In Stock, Qty 16

0

43

Giant-Vac 7090391

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

44

Giant-Vac 3071798

THROTTLE CONTROL, Honda (36/0.68)

$

$

Not available

45

Giant-Vac 3031220

BUSHING .375x.500x.25 (.625x.063 Flange)
(Superseded to 3031220SM)

Note: This bushing is part of item 17 on some models.

$8.49

$

Usually ships in 2-12 days

0

46

Giant-Vac 7090505

SCREW, 1/4-20 x 2" Hex Head Cap, GR 5
(Superseded to 703163)

$3.49

$

Usually ships in 2-12 days

0

47

Giant-Vac 7090188

WASHER, .34 x .69 x .08 Flat
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

48

Giant-Vac 7076978

NUT,1/4-20 Hex Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

49

Giant-Vac 7091298

NUT, 5/16-18 Hex Nyloc
(Superseded to 703902)

$3.99

$

In Stock, Qty 10

0

50

Giant-Vac 3046584

DECAL, 9 HP Extreme

$

$

Not available

51

Giant-Vac 7075893

DECAL, Personal Protection
(Superseded to 7075893SM)

$

$

Not available

52

Giant-Vac 7013010

DECAL, Danger, Cut Finger
(Superseded to 7013010SM)

$9.49

$

In Stock, Qty 20+

0

53

Giant-Vac 7029445

DECAL, GIANT-VAC (Small)

$

$

Currently unavailable

54

Giant-Vac 7075861

DECAL, GIANT VAC

$

$

Not available

55

Giant-Vac 3031814

SPACER, .375 ID x .750 OD x .805 LG ZP

$

$

Not available

56

Giant-Vac 3079268

DECAL, No Flat Tire

$

$

Currently unavailable

57

Giant-Vac 3079269

DECAL, Easy Off Impeller

$

$

Currently unavailable
