Scag LBXP17-GX390 - Scag Extreme Pro Wheeled Blower, 11.7hp Honda (SN: P4700001 - P4799999) EXTREME PRO BLOWER ASSEMBLY Parts Lookup with Diagrams

1

Scag 462738

Handle, Upper w/Grip (incl. #2)

$120.99

$

Usually ships in 2-12 days

2

Scag 485343

Grip, 1" x 21-1/2"

$15.99

$

Usually ships in 2-12 days

3

Scag 483533

Knob, Throttle

$10.99

$

Usually ships in 2-12 days

4

Scag 484935

Control Cable, Air Direction (incl. #3)

$59.99

$

In Stock, only 1 left!

5

Scag 04003-15

CARR BOLT, 5/16-18 X 1.75

$4.99

$

In Stock, Qty 8

6

Scag 04001-04

Bolt, Hex Head, 1/4-20 x 1-1/2"

$0.99

$

In Stock, Qty 17

7

Scag 462632

Mounting Bracket, Control Plate w/Decal

$101.99

$

Usually ships in 2-12 days

8

Scag 04003-43

Bolt, Carriage #10-24 x 1/2"

$0.99

$

In Stock, Qty 8

9

Scag 04021-26

Nut, Elastic Stop #10-24

$0.99

$

In Stock, Qty 9

10

Scag 04019-02

NUT, 1/4-20 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

11

Scag 485006

Cable, Throttle Control

$48.99

$

In Stock, only 1 left!

12

Scag 04021-08

HEX, NUT, ELASTIC STOP LOCK, 1/4-20

$0.99

$

In Stock, Qty 10

13

Scag 04001-206

Bolt, 1/4-20 x 2-1/2"

$0.99

$

Usually ships in 2-12 days

14

Scag 463082

Handle Bar Cover w/Decal

$53.99

$

Usually ships in 2-12 days

15

Scag 04017-19

Bolt, Serrated Flange Hex Head 5/16-18 x 1.50"

$1.49

$

Usually ships in 2-12 days

16

Scag 04117-01

Nut, Flange Head Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

17

Scag 04019-03

Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 16

18

Scag 484875

Handle, Lower - LBX

$75.99

$

Usually ships in 2-12 days

19

Scag 44200

Guide, Pull Rope

$5.49

$

Usually ships in 2-12 days

20

Scag 484840

Knob, 3/8-16 Thread

$6.49

$

Usually ships in 2-12 days

21

Scag 484843

Mount, Vibration

$11.99

$

In Stock, only 1 left!

22

Scag 484764

Spring, Air Discharge Door

$7.99

$

In Stock, only 1 left!

23

Scag 04020-04

HEX LOCKNUT, ELASTIC STOP, 3/8-16

$0.99

$

In Stock, Qty 20+

24

Scag 44202

Rod, Forward Air Control

$7.99

$

Usually ships in 2-12 days

25

Scag 481284

Bumper, Rubber 5/16-18 x 5/8"

$16.99

$

In Stock, only 2 left!

26

Scag 426743

Bracket, Limiter Plate

$60.99

$

Usually ships in 2-12 days

27

Scag 04003-15

CARR BOLT, 5/16-18 X 1.75

$4.99

$

In Stock, Qty 8

28

Scag 485071

Wheel Assembly, 13 x 5-6

$99.99

$

Usually ships in 2-12 days

28

Scag 485124

Tire

$77.99

$

Usually ships in 2-12 days

28

Scag 485123

Rim w/Valve

$55.99

$

Usually ships in 2-12 days

28

Scag 485010

Bearing

$5.49

$

Usually ships in 2-12 days

29

Scag 04050-09

RETAINING RING, 5/8 EXT. - BASIC

$0.99

$

In Stock, Qty 20+

30

Scag 452632

Door Weldment, Side Discharge Control

$25.99

$

Usually ships in 2-12 days

31

Scag 426163

Pivot Bracket, Side Discharge

$13.99

$

Usually ships in 2-12 days

32

Scag 483453-24

Bearing, .250 ID

$11.99

$

Usually ships in 2-12 days

33

Scag 04017-16

Capscrew, 5/16-18 x .75 Serrated Flange Hex Head

$0.99

$

In Stock, Qty 10

34

Scag 483453-25

Bearing, .375 ID

$11.99

$

Usually ships in 2-12 days

35

Scag 426211

Door, Forward Air Control

$21.99

$

Usually ships in 2-12 days

36

Scag 04003-07

Bolt, Carriage 1/4-20 x 1/2"

$0.99

$

In Stock, Qty 10

37

Scag 426871

Caster Bracket, Extreme

$33.99

$

Usually ships in 2-12 days

38

Scag 04001-119

BOLT, HEX HEAD, 5/8-11 X 5-1/2

$6.99

$

Usually ships in 2-12 days

39

Scag 04021-13

HEX LOCKNUT, ELASTIC STOP, 5/8-11

$1.49

$

In Stock, Qty 9

40

Scag 04117-02

Nut, Flange Elastic Stop Nut, 3/8-16

$0.99

$

In Stock, Qty 20+

41

Scag 484844

Wheel Assembly, 4.10 x 3.5-6

$89.99

$

Usually ships in 2-12 days

41

Scag 485008

Tire

$53.99

$

Usually ships in 2-12 days

41

Scag 485009

Rim w/Valve

$35.99

$

Usually ships in 2-12 days

41

Scag 485010

Bearing

$5.49

$

Usually ships in 2-12 days

42

Scag 463083

Baffle Assembly, Extreme Pro w/Decal

$206.99

$

Usually ships in 2-12 days

43

Scag 43952

Spacer, Wheel

$11.99

$

Usually ships in 2-12 days

44

Scag 04001-222

Bolt, Hex Head 5/16-18 x 3-3/4" Grade 8

$1.99

$

Usually ships in 2-12 days

45

Scag 04030-03

Lockwasher, 5/16 (.317 x .586 x .078) Helical Spring

$0.99

$

In Stock, Qty 20+

46

Scag 04063-08

Key, 1/4 x 1/4 x 2.0"

$1.49

$

In Stock, Qty 20+

47

Scag 485577

Tapered Hub, P2 - 1" Bore

$177.99

$

Usually ships in 2-12 days

48

Scag 452729

Impeller Weldment, 17" Extreme Pro

$737.99

$

Usually ships in 2-12 days

49

Scag 04001-205

Bolt, Hex Head 5/16-24 x 2-1/2"

$1.49

$

Usually ships in 2-12 days

50

Scag 463084

Housing Weldment, Extreme Pro with Decals

$915.99

$

Usually ships in 2-12 days

51

Scag 04001-12

Bolt, Hex Head 5/16-18 x 1-1/2" - Front

$0.99

$

In Stock, Qty 20+

52

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083 (35BV & 37BV-EFI)

$0.99

$

In Stock, Qty 9

53

Scag 484953

Engine, Honda GX390 (not available through Scag Power Equipment)

$

Currently unavailable 

54

Scag 43927

Spacer, Engine

$8.49

$

Usually ships in 2-12 days

55

Scag 426737

Bracket, Air Flow

$12.99

$

Usually ships in 2-12 days

56

Scag 04117-03

Nut, Flanged Elastic Stop 1/4-20

$0.99

$

In Stock, only 3 left!

57

Scag 04003-02

Serr. Fl. Hex Head CPSCR, 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

58

Scag 04024-04

NUT, PUSH-ON - .1/4 SHAFT

$1.49

$

In Stock, only 3 left!

59

Scag 04001-14

Capscrew, Hex Head 1/4-20 x 1"

$0.99

$

In Stock, Qty 10

60

Scag 427082

Guard, Impeller - LBXP

$29.99

$

Usually ships in 2-12 days

61

Scag 04021-08

HEX, NUT, ELASTIC STOP LOCK, 1/4-20

$0.99

$

In Stock, Qty 10

62

Scag 426361

Plate, Impeller Hub (not shown)

$58.99

$

Usually ships in 2-12 days

63

Scag 04040-03

Flatwasher, 1/4 (.281 x .625 x .065)

$0.99

$

In Stock, Qty 8

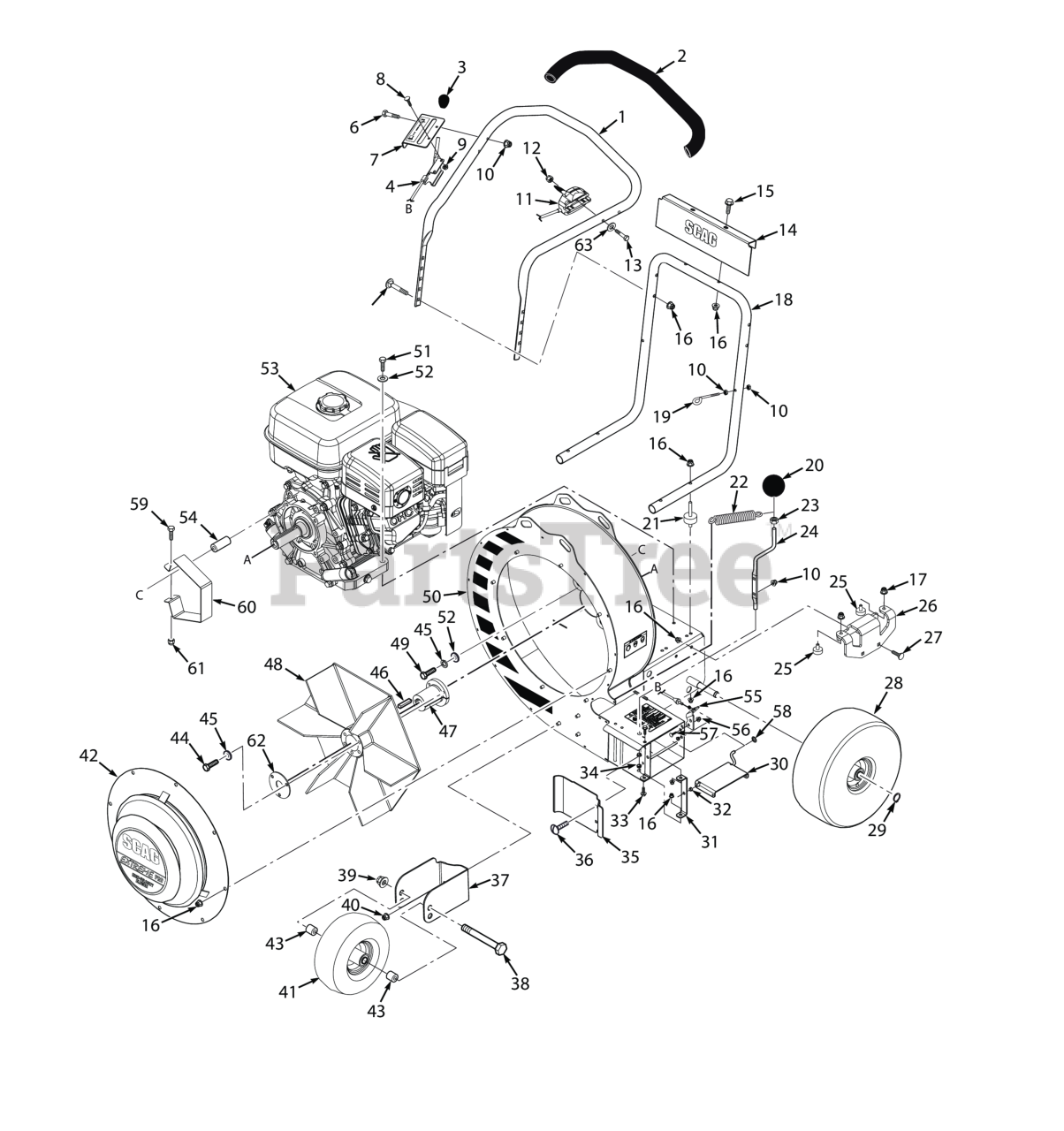

LBXP17-GX390 - Scag Extreme Pro Wheeled Blower, 11.7hp Honda (SN: P4700001 - P4799999) EXTREME PRO BLOWER ASSEMBLY Parts Diagram

EXTREME PRO BLOWER ASSEMBLY Parts Diagram
