LC-106 (11B-106F190) - White Outdoor 20" Walk-Behind Mower (1998) Control Handle And Engine Assembly Parts Diagram

20" Walk-Behind Mower

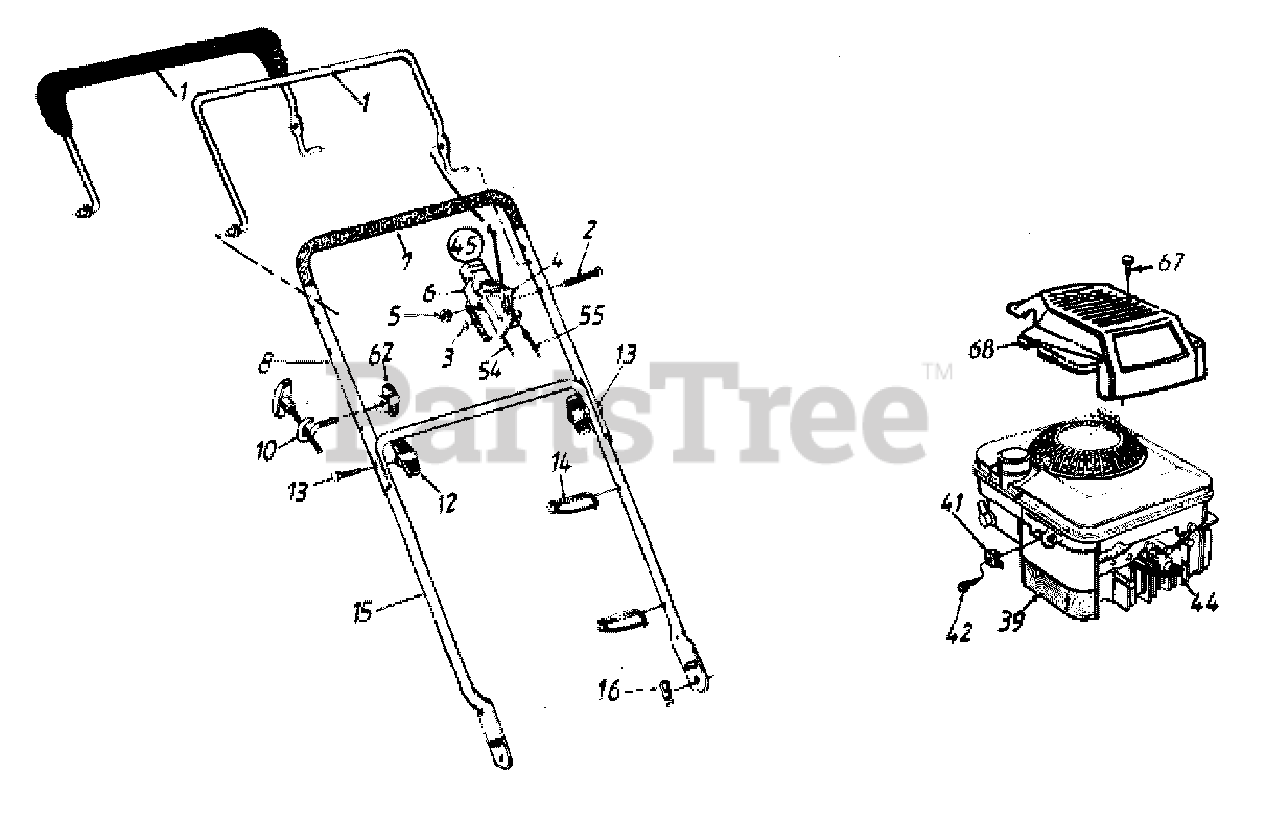

Control Handle And Engine Assembly Parts Diagram

  • Title

1

White Outdoor 647-0004

Control Handle Ass'y.
(Superseded to 747-0824B-0637)

Note: For model 106F only

$69.99

$

Usually ships in 3-6 days

0

White Outdoor 747-0824

Control Handle Ass'y.
(Superseded to 747-0824B-0637)

Note: For model 702A only

Variations

747-0824-0637

White Outdoor 747-0824-0637

Control Handle Assembly - POWDER BLACK (0637)

$69.99

$

Usually ships in 3-6 days

0

$69.99

$

Usually ships in 3-6 days

0

2

White Outdoor 710-0605

Oval C-Sunk Screw

$4.99

$

In Stock, only 2 left!

0

3

White Outdoor 736-0501

Spring Washer
(Superseded to 936-0501)

$7.49

$

Usually ships in 3-6 days

0

4

White Outdoor 746-0876

Throttle Lever
(Superseded to 946-0876)

$8.99

$

In Stock, only 2 left!

0

5

White Outdoor 712-0324

Hex Lock Nut

$3.99

$

In Stock, only 2 left!

0

6

White Outdoor 646-0875

Throttle Body
(Superseded to 946-0875)

$9.99

$

In Stock, Qty 5

0

7

White Outdoor 720-0226

Foam Grip
(Superseded to 720-0295)

$35.99

$

Usually ships in 3-6 days

0

8

White Outdoor 749-0538C-0637

Upper Handle
(Superseded to 749-0538E-0637)

$

$

Not available

10

White Outdoor 710-1205

Rope Guide

$4.49

$

In Stock, only 1 left!

0

12

White Outdoor 720-0276

Hand Knob
(Superseded to 920-0276)

$3.99

$

In Stock, Qty 6

0

13

White Outdoor 710-1174

Carriage Bolt

$7.99

$

In Stock, Qty 14

0

14

White Outdoor 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

15

White Outdoor 749-0928-0637

Lower Handle
(Superseded to 749-0928A)

$35.99

$

In Stock, only 1 left!

0

16

White Outdoor 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 12

0

39

Engine

$

$

Not available

41

White Outdoor 751B213146

Cable Clamp
(Superseded to BS-690798)

$5.49

$

In Stock, only 4 left!

0

42

White Outdoor 710-1237

Hex TT Screw #10-32 x .62"

$4.99

$

Usually ships in 3-6 days

0

44

White Outdoor 735-0639

Spark Plug Boot

$

$

Not available

45

White Outdoor 811-00185

Throttle Box Comp.
(Superseded to 811-0185)

Note: (Includes references 2, 3, 4, 5, and 6.)

$38.99

$

In Stock, only 4 left!

0

54

White Outdoor 746-0842

Throttle Cable
(Superseded to 946-0671A)

$14.99

$

In Stock, Qty 6

0

55

White Outdoor 746-0553

Control Cable
(Superseded to 946-0553)

$25.99

$

Usually ships in 3-6 days

0

62

White Outdoor 720-0279

Handle Knob

$4.99

$

In Stock, Qty 7

0

67

White Outdoor 710-1256

Hi-Lo Screw

$6.49

$

In Stock, only 2 left!

0

68

White Outdoor 751B281451

Engine Shroud

Note: For model 106F only

$

$

Not available

White Outdoor 777-0148

Throttle Instruction Label
(Superseded to 777I20287)

$

$

Not available

White Outdoor 777-0870

Danger Label (Behind Deck Opening)

$

$

Not available

White Outdoor 777-3047

Danger Label (Cut Hand)
(Superseded to 777S30181)

Note: For model 702A only

$10.99

$

Usually ships in 3-6 days

0

White Outdoor 777-1299

Warning Label (Chute Cover)
(Superseded to 777S30108)

$

$

Not available

White Outdoor 777-9341

Warning Label
(Superseded to 777S30295)

Note: For model 702A only

$22.99

$

Usually ships in 3-6 days

0

White Outdoor 777-3801A

Safety Label (Deck)
(Superseded to 777S30142)

Note: For model 106F only

$13.99

$

Usually ships in 3-6 days

0

MTD 777-1557

Danger Label (Deck)

Note: For model 702A only

$

$

Not available

777-4719

Decorative Label (Shroud)

Note: For model 106F only

$

$

Not available

777-4852

Decor. Label (Hubcap)

Note: For model 702A only

$

$

Not available
