LC 121 FH (961480061-00) - Husqvarna 21" Walk-Behind Mower (2017-10) HANDLE Parts Diagram

21" Walk-Behind Mower

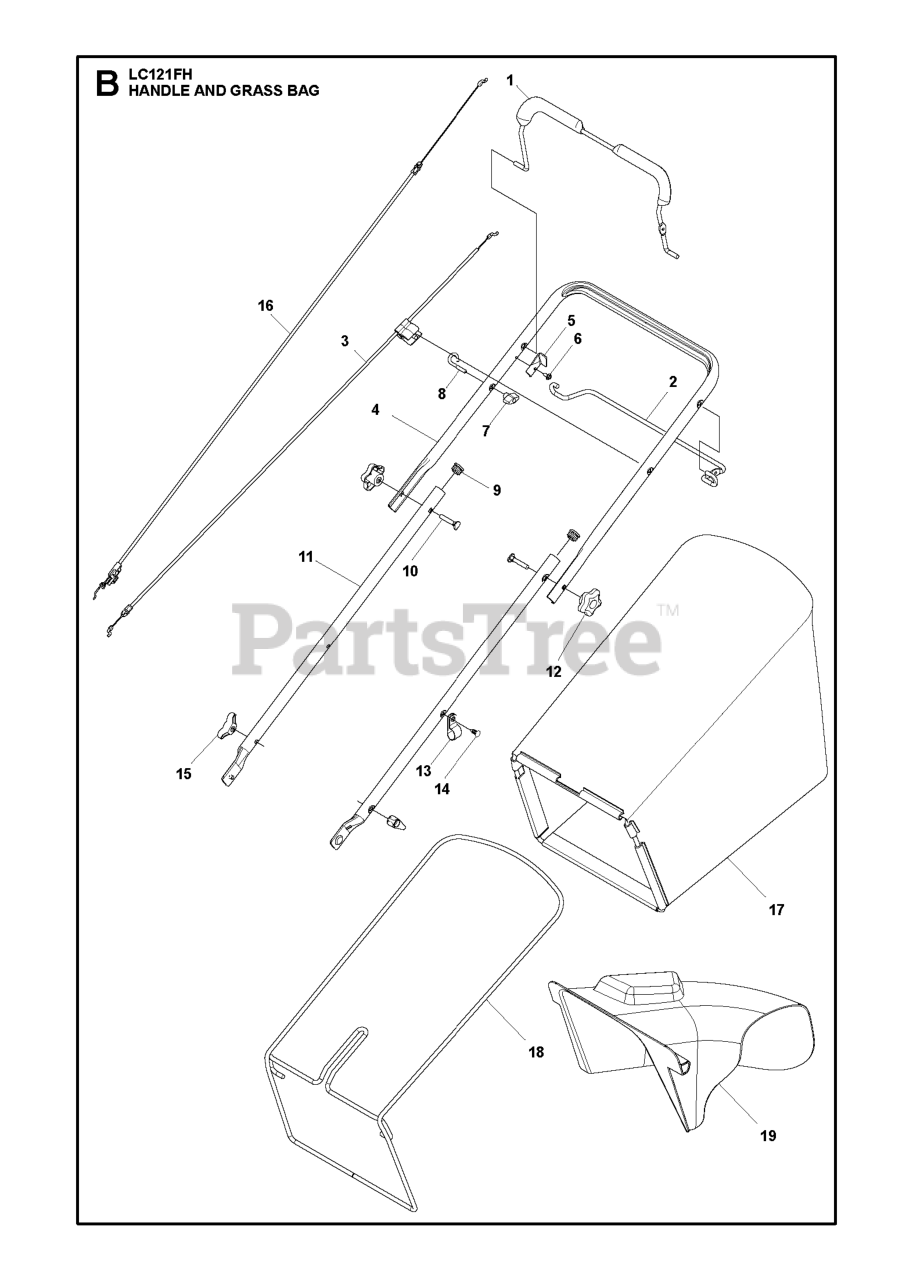

HANDLE Parts Diagram

  • Title

1

Husqvarna 587478302

BAIL.ARM.ASSY:STRAIGHT OM

Note: Straight

$33.99

$

In Stock, Qty 6

0

2

Husqvarna 532198453

BAIL.CONT.DR.S/S.ROUND.BLACK

Note: Drive, Straight

$27.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532440385

RP.CABLE.MZR.RGD.PLUS.STRT
(Superseded to 583547901)

Note: Operator Presence Bail

$23.99

$

In Stock, Qty 20+

0

4

Husqvarna 589197902

HANDLE.UPP.DST.EXTCR.SM.SP.498

Note: Straight

$

$

Not available

5

Husqvarna 532430034

BRACKET.UPSTOP.RT

Note: Upstop

$

$

Not available

6

Husqvarna 532178848

SCREW

Note: 10-16 X 5/8

$3.99

$

In Stock, Qty 14

0

7

Husqvarna 581912601

T-KNOB.NEW ROPE GUIDE

Note: T, Rope Guide

$4.99

$

In Stock, Qty 16

0

8

Husqvarna 581902101

GUIDE.ROPE.BLK.ZINC.CHROM

Note: Rope

$

$

Not available

9

Husqvarna 532437516

PLUG.PLASTIC.7/8".14-20.GAUGE

Note: Plastic, 7/8, 14-20 Gauge

$

$

Not available

10

Husqvarna 588040401

BOLT.CONCAVE.HEAD.RETAINING

Note: Concave Head, Retaining

$3.99

$

In Stock, Qty 6

0

11

Husqvarna 501064002

HANDLE.LOW.2PC.2POS.21EFF.498

Note: Lower 2 piece, 3 Position

$

$

Not available

12

Husqvarna 532182398

KNOB.HANDLE.PLASTIC.STAR.BLACK

Note: Handle, Star

$7.49

$

In Stock, Qty 15

0

13

Husqvarna 532197991

CLIP.CABLE.BLK

Note: P/Cable

$3.99

$

In Stock, Qty 11

0

14

Husqvarna 532428124

FASTENER.PUSH.O.250X0.783

Note: Push, 0.250 X 0.783

$2.49

$

In Stock, only 2 left!

0

15

Husqvarna 532191938

KNOB, DEFLECTOR
(Superseded to 532185577)

Note: Handle, Star

$9.99

$

In Stock, Qty 20+

0

16

Husqvarna 587395401

CABLE.DRIVE.21 EFF.FGD

Note: Drive, Under-bail

$14.99

$

In Stock, Qty 5

0

17

Husqvarna 587100408

GBAG.C361029ER.HUSQ.GRY.21EFF
(Superseded to 587100402)

Note: 21"

$47.99

$

In Stock, Qty 20+

0

18

Husqvarna 586929102

FRAME.GBAG.AWD.21.BLACK

Note: FRAME

$29.99

$

In Stock, Qty 15

0

19

Husqvarna 582261901

CHUTE.DISCHARGE.21EFF.HW

Note: Discharge Chute

$26.99

$

In Stock, only 4 left!

0
