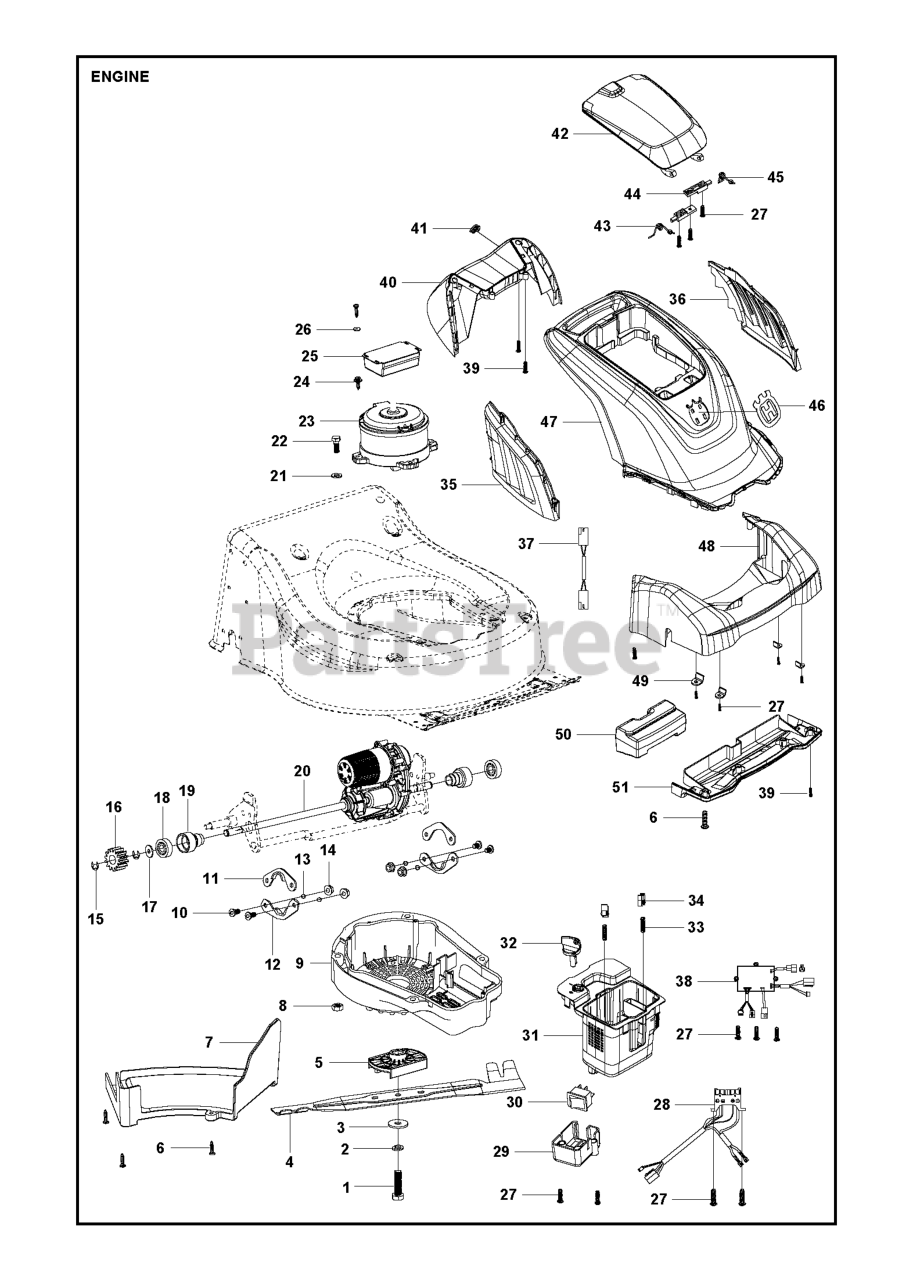

LC 141 iV (967099201) - Husqvarna Walk-Behind Mower (2019-01) ENGINE Parts Diagram

Walk-Behind Mower

ENGINE Parts Diagram

  • Title

7

Husqvarna 582894901

COVER LOW PROTECT # 2106100379

$9.99

$

Usually ships in 3-10 days

0

17

Husqvarna 587914501

WASHER Ï?12.8*Ï?20*0.8 #268007

$3.99

$

Usually ships in 3-10 days

0

1

Husqvarna 579684101

BOLT

$3.99

$

Usually ships in 3-10 days

0

43

Husqvarna 579687701

TORSION SPRING

$3.99

$

Usually ships in 3-10 days

0

40

Husqvarna 501488801

COVER BACK COVER

$29.99

$

Usually ships in 3-10 days

0

36

Husqvarna 501488501

COVER LEFT AIR WINDOW PLATE

$23.99

$

Usually ships in 3-10 days

0

18

Husqvarna 587913001

BEARING

$5.99

$

Usually ships in 3-10 days

0

26

Husqvarna 579686501

WASHER

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 579687501

SCREW

$4.99

$

Usually ships in 3-10 days

0

27

Husqvarna 579685501

SCREW

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 587914701

WASHER Ï?9,GB896 #26800900201

$4.99

$

Usually ships in 3-10 days

0

25

Husqvarna 598764501

NEEDS DESCRIPTION

Note: Local - 2108900031D

$

$

Currently unavailable

4

Husqvarna 501171601

MOWER BLADE MULCH 40CM PRODUCT
(Superseded to 501171610)

$33.99

$

Usually ships in 3-10 days

0

16

Husqvarna 589757901

GEAR #26900215601

$47.99

$

Usually ships in 3-10 days

0

44

Husqvarna 501489801

HINGE BATTERY LID HINGE

$4.99

$

Usually ships in 3-10 days

0

22

Husqvarna 579686101

BOLT

$4.99

$

Usually ships in 3-10 days

0

29

Husqvarna 579686801

PLATE

$4.99

$

Usually ships in 3-10 days

0

10

Husqvarna 587912601

SCREW M6*16 #26800204601

$4.99

$

Usually ships in 3-10 days

0

38

Husqvarna 589759303

NEEDS DESCRIPTION

Note: Use in models after S/N 20191500001. Tyco - 2108900016A.

$

$

Currently unavailable

9

Husqvarna 579685901

HOLDER

$47.99

$

Usually ships in 3-10 days

0

51

Husqvarna 501489501

COVER FRONT HANDLE (UNDER SIDE

$29.99

$

Usually ships in 3-10 days

0

23

Husqvarna 598764301

NEEDS DESCRIPTION

Note: 800W, 36V. Local - 2050100162D.

$

$

Currently unavailable

41

Husqvarna 579687101

WIRE

$3.99

$

Usually ships in 3-10 days

0

32

Husqvarna 501490101

KEY

$2.49

$

In Stock, only 1 left!

0

8

Husqvarna 579685801

NUT LOCKING

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 587915501

BEARING HOUSING #26900211501

$41.99

$

Usually ships in 3-10 days

0

35

Husqvarna 501488701

COVER RIGHT AIR WINDOW PLATE

$23.99

$

Usually ships in 3-10 days

0

38

Husqvarna 589759302

PRINTED CIRCUIT ASSY SEL-PROPE

Note: Local - 2108900161A

$119.99

$

Usually ships in 3-10 days

0

13

Husqvarna 587992501

O-RING #25100175201

$

$

Not available

20

Husqvarna 589758002

NEEDS DESCRIPTION

Note: Use in models after S/N 20210100001. If replacing from old gearbox, 589 75 82-02 and 579 68 52-01 are needed.

$

$

Currently unavailable

21

Husqvarna 579686001

WASHER

$4.99

$

Usually ships in 3-10 days

0

45

Husqvarna 579687801

TORSION SPRING LEFT

$5.99

$

Usually ships in 3-10 days

0

5

Husqvarna 579684501

BLADE SUPPORT

$17.99

$

Usually ships in 3-10 days

0

23

Husqvarna 598764302

NEEDS DESCRIPTION

Note: Use in models after S/N 20191500001. Tyco - 2050100244A.

$

$

Currently unavailable

37

Husqvarna 589759201

LINE CONNECTING # 27100124701

$35.99

$

Usually ships in 3-10 days

0

2

Husqvarna 579684201

SPRING WASHER

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 589758001

GEARBOX ASSY #23050206401

Note: Use in models before S/N 20210100001

$263.99

$

Usually ships in 3-10 days

0

28

Husqvarna 579686601

NEEDS DESCRIPTION

$

$

Currently unavailable

24

Husqvarna 579686301

SCREW

$3.99

$

Usually ships in 3-10 days

0

42

Husqvarna 501488301

COVER BATTERY LID

$29.99

$

Usually ships in 3-10 days

0

25

Husqvarna 598764502

NEEDS DESCRIPTION

Note: Use in models after S/N 20191500001. Tyco - 2108900031E.

$

$

Currently unavailable

33

Husqvarna 579687001

SPRING

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 501489602

BOX BATTERY BOX

$29.99

$

Usually ships in 3-10 days

0

30

Husqvarna 579686901

KEY SWITCH

$7.49

$

Usually ships in 3-10 days

0

3

Husqvarna 579684301

WASHER

$3.99

$

Usually ships in 3-10 days

0

47

Husqvarna 501488401

COVER MOTOR COVER

$47.99

$

Usually ships in 3-10 days

0

12

Husqvarna 587910901

FIXING PLATE #26300124401

$5.99

$

Usually ships in 3-10 days

0

39

Husqvarna 579686701

SCREW

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 587913401

LOCK NUT M6,GB/T6187.1-2000 #2

$3.99

$

Usually ships in 3-10 days

0

48

Husqvarna 501488901

COVER FRONT COVER

$35.99

$

Usually ships in 3-10 days

0

50

Husqvarna 579843901

WEIGHT # 25100184101

$29.99

$

Usually ships in 3-10 days

0

11

Husqvarna 587992401

FIXING PLATE #26300314601

$7.49

$

Usually ships in 3-10 days

0

46

Husqvarna 501489101

DECAL LOGO

$3.99

$

Usually ships in 3-10 days

0

49

Husqvarna 579687601

WASHER

$3.99

$

Usually ships in 3-10 days

0

34

Husqvarna 501490201

CAP COMPRESSION SPRING CAP

$2.49

$

Usually ships in 3-10 days

0
