LC-149 (12A-149D190) - White Outdoor Lawn Boss 21" Walk-Behind Mower (1997) Deck, Shaft Ass'y And Wheel Ass'y Parts Diagram

Lawn Boss 21" Walk-Behind Mower

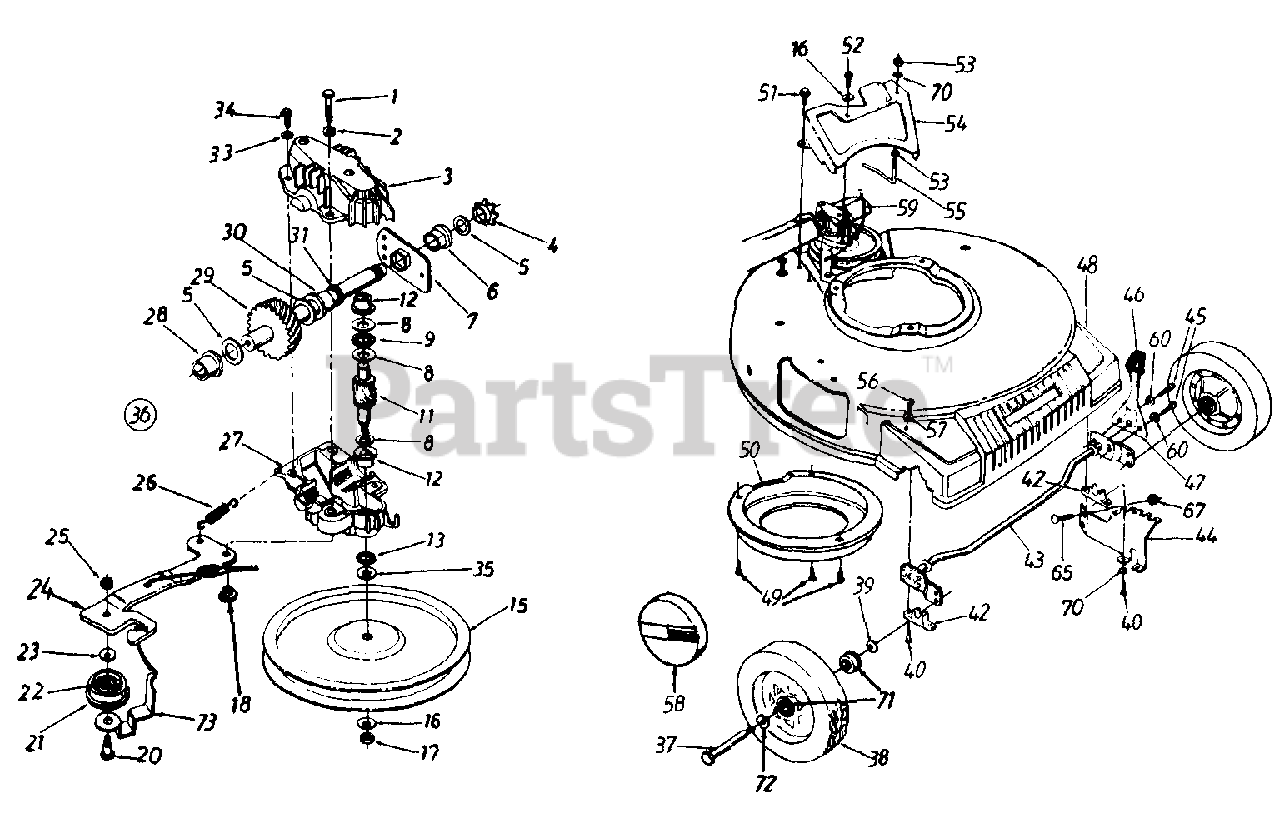

Deck, Shaft Ass'y And Wheel Ass'y Parts Diagram

  • Title

1

White Outdoor 710-1062

Hex Patch Bolt 1/4-20 x 1.25"

$5.99

$

Usually ships in 3-6 days

0

2

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

3

White Outdoor 717-0418A

Upper Hsg. Half

$

$

Not available

4

White Outdoor 713-0400

#48 Sprocket 7 T x 1/2 Pitch

$

$

Not available

5

White Outdoor 736-0336

Fl-Wash. 5/8" I.D. x .030
(Superseded to 936-0336)

$4.49

$

In Stock, Qty 20+

0

6

White Outdoor 741-0413

Hex Flange Brg. .631" I.D

$8.99

$

Usually ships in 3-6 days

0

7

White Outdoor 16500A

Hex Bearing Cup
(Superseded to 16500A-0637)

Variations

White Outdoor 16500A-0637

BEARING-CUP HEX - POWDER BLACK (0637)

$8.99

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0

8

White Outdoor 736-0314

Thrust Wash. .382" I.D. x .70" O.D.

$6.49

$

Usually ships in 3-6 days

0

9

White Outdoor 741-0479

Thrust Bearing .375" I.D. x .812" O.D.

$10.99

$

Usually ships in 3-6 days

0

11

White Outdoor 717-1216

11 Tooth Pinion Shafts
(Superseded to 917-1216)

$

$

Not available

12

White Outdoor 748-0208A

Flange Bearing

$4.49

$

Usually ships in 3-6 days

0

13

White Outdoor 721-0212

Oil Seals

$

$

Not available

15

White Outdoor 756-0330A

Fl-Pulley 5.06" O.D.

$

$

Not available

16

White Outdoor 736-0270

Bell-Wash. .265" I.D. x .75"

$3.99

$

In Stock, Qty 14

0

17

White Outdoor 712-0351

Hex L-Nut 1/4-28 L.H. Thd.
(Superseded to 712-04326)

$13.99

$

Usually ships in 3-6 days

0

18

White Outdoor 738-0440

Shld. Spacer .375" Dia. x .170

$5.49

$

In Stock, Qty 6

0

20

White Outdoor 738-0826

Shld. Bolt .375" Dia. x .40"

$11.99

$

Usually ships in 3-6 days

0

21

White Outdoor 656-0008

Fl-Idler Plastic 1.50" Dia.
(Superseded to 956-0008)

Note: (Incl. Ref. 22)

$18.99

$

In Stock, only 4 left!

0

22

White Outdoor 741-0556

Needle Brg. .375" x .31

$15.99

$

In Stock, only 4 left!

0

23

White Outdoor 736-0270

Bell-Wash. .265" I.D. x .75"

$3.99

$

In Stock, Qty 14

0

24

White Outdoor 782-7570

Idler Brkt. Assy.
(Superseded to 682-0054)

$23.99

$

Usually ships in 3-6 days

0

25

White Outdoor 712-0138

Hex Patch L-Nut 1/4-28 Thd.

$6.49

$

Usually ships in 3-6 days

0

26

White Outdoor 732-0357A

Extension Spring 1.12" Lg.

$3.99

$

In Stock, Qty 5

0

27

White Outdoor 717-0419B

Lower Hsg. Half

$

$

Not available

28

White Outdoor 741-0415

Flange Bearing .566 Dia.
(Superseded to 941-0415)

$9.99

$

Usually ships in 3-6 days

0

29

White Outdoor 717-0616A

Shaft Assy.

$

$

Not available

30

White Outdoor 741-0414

Flange Bearing .629 Dia.

$9.99

$

Usually ships in 3-6 days

0

31

White Outdoor 721-0213

Oil Seal .625 Dia.

$9.99

$

In Stock, Qty 9

0

33

UNKNOWN

$

$

Not available

34

White Outdoor 710-0589

Hex B-Tap Scr. #10 x .75"

$6.49

$

Usually ships in 3-6 days

0

35

White Outdoor 736-0410

Hex Washer .26" x .88"
(Superseded to 936-0410)

$

$

Not available

36

White Outdoor 717-0417B

Transmission Comp.
(Superseded to 917-0417B)

$234.99

$

Usually ships in 3-6 days

0

37

White Outdoor 738-0102

Front Axle Bolt

$9.49

$

In Stock, Qty 11

0

38

White Outdoor 734-1819

Wheel Assy. Comp.
(Superseded to 734-1978)

$45.99

$

In Stock, only 2 left!

0

39

White Outdoor 736-0105

Bell-Wash. .380" I.D. x .88

$3.99

$

In Stock, Qty 20+

0

40

White Outdoor 710-1241

Hex Wash. Hd. Scr. 1/4 x 1" Lg.

$6.49

$

In Stock, Qty 20+

0

42

White Outdoor 741-0492A

Block Bushing

$5.99

$

In Stock, Qty 12

0

43

White Outdoor 17733

Axle Assy.

Variations

White Outdoor 17733-0637

AXLE ASSY-FR - POWDER BLACK (0637)

$

$

Not available

$

$

44

White Outdoor 782-0516

Height Adj. Bracket

$

$

Not available

45

White Outdoor 710-0653

Hex TT-Tap Scr. 1/4-20 x .38"

$4.49

$

In Stock, Qty 16

0

46

White Outdoor 720-0190

Knob
(Superseded to 731-13116-1)

$12.99

$

In Stock, only 3 left!

0

47

White Outdoor 732-0639

Spring Lever

$

$

Not available

48

White Outdoor 731-1422A

Plastic Front End

$

$

Not available

49

White Outdoor 710-1005

Hex B-Tap Scr. 1/4" x .50"
(Superseded to 710-0599)

$3.99

$

In Stock, Qty 20+

0

50

White Outdoor 782-7558

Belt Cover

Variations

White Outdoor 782-7558-0637

COVER-BELT - POWDER BLACK (0637)

$

$

Not available

$

$

51

White Outdoor 710-0599

Hex Wash. Hd. TT-Scr. 1/4-20

$3.99

$

In Stock, Qty 20+

0

52

White Outdoor 710-0896

Hex Wash. Hd. B-Tap Scr.1/4 x .62" (Spec)

$3.99

$

In Stock, Qty 20+

0

53

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

54

White Outdoor 17058A

Transmission Belt Cover
(Superseded to 17058A-0637)

Variations

White Outdoor 17058A-0637

GUARD-BELT - POWDER BLACK (0637)

$

$

Not available

$

$

55

White Outdoor 747-0549

S.P. Belt Guard

$

$

Not available

56

White Outdoor 710-1242

Torx Truss Hd. Scr. 5/16 x .75"

$4.49

$

In Stock, Qty 19

0

57

White Outdoor 736-0242

Bell-Wash. .345" I.D. x .88"

$3.99

$

In Stock, Qty 20+

0

58

White Outdoor 731-0981A

Hub Cap
(Superseded to 731-0981C)

$9.99

$

In Stock, Qty 6

0

59

White Outdoor 746-0710A

S.P. Cable
(Superseded to 946-0710A)

$37.99

$

In Stock, Qty 7

0

60

White Outdoor 736-0222

External L-Wash. 1/4" I.D.

$5.49

$

In Stock, only 3 left!

0

65

White Outdoor 710-0167

Carr. Bolt 1/4-20 x .5" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

67

White Outdoor 712-3027

Hex Flange L-Nut 1/4-20 Thd.
(Superseded to 912-3027)

$3.99

$

In Stock, Qty 20+

0

70

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

71

White Outdoor 741-0484

Wheel Bearing
(Superseded to 941-0484)

$6.99

$

In Stock, only 2 left!

0

72

White Outdoor 736-0504

Wave Washer
(Superseded to 936-0504)

$4.49

$

In Stock, Qty 12

0

73

White Outdoor 782-7569

Belt Keeper

$6.99

$

Usually ships in 3-6 days

0
