LC 153 S (961410290-00) - Husqvarna Walk-Behind Mower (2013-10) FRAME ENGINE Parts Diagram

Walk-Behind Mower

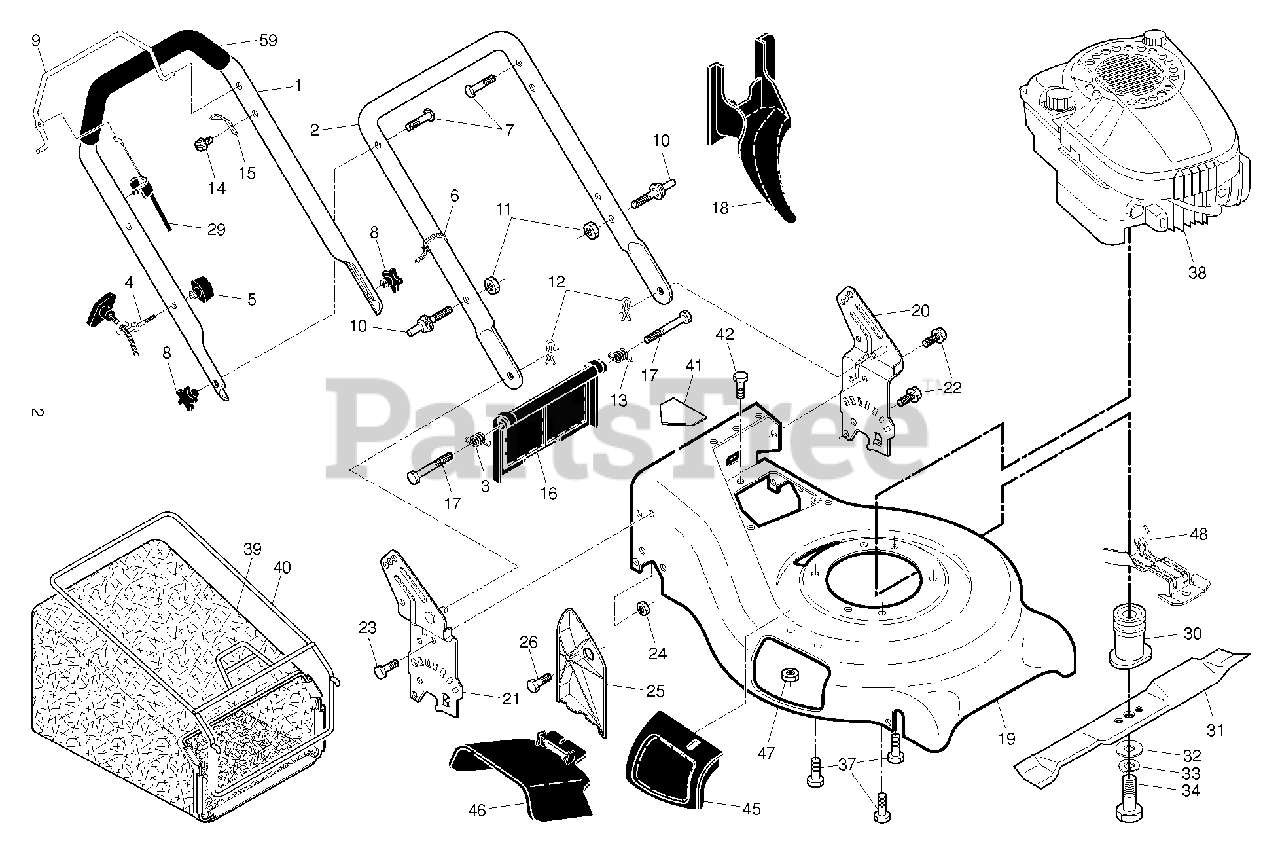

FRAME ENGINE Parts Diagram

  • Title

1

Husqvarna 580638708

HANDLE.ASM.UP.BS.PU/SS.GRP.GRE

Note: . 59

$

$

Not available

2

Husqvarna 532197202

HANDLE.LOWER.21.GREY

$

$

Not available

3

Husqvarna 532405416

SPRING.RH.REAR.DOOR.21.RWGD

Note: RH

$6.49

$

In Stock, only 1 left!

0

4

Husqvarna 581902101

GUIDE.ROPE.BLK.ZINC.CHROM

$4.99

$

In Stock, only 2 left!

0

5

Husqvarna 581912601

T-KNOB.NEW ROPE GUIDE

$4.99

$

In Stock, Qty 12

0

6

Husqvarna 532066426

TIE GUIDE
(Superseded to 532124756)

$6.49

$

Usually ships in 3-10 days

0

7

Husqvarna 532191574

BOLT, HANDLE 5/16-18X1.75

$3.99

$

In Stock, Qty 20+

0

8

Husqvarna 532182398

KNOB.HANDLE.PLASTIC.STAR.BLACK

$7.49

$

In Stock, only 1 left!

0

9

Husqvarna 532426812

BAIL.CONTROL.MZR.BS.ORANGE

$

$

Not available

10

Husqvarna 532188821

BOLT

$6.49

$

In Stock, only 1 left!

0

11

Husqvarna 532751153

NUT.LOCK.5/16-18

$4.99

$

In Stock, Qty 9

0

12

Husqvarna 532051793

HAIRPIN COTTER

$7.49

$

In Stock, only 1 left!

0

13

Husqvarna 532405415

SPRING.LH.REAR.DOOR.21.RWGD

Note: LH

$6.49

$

Usually ships in 3-10 days

0

14

Husqvarna 532178848

SCREW

$7.49

$

In Stock, Qty 20+

0

15

Husqvarna 532430034

BRACKET.UPSTOP.RT

$6.49

$

In Stock, Qty 7

0

16

Husqvarna 532190510

MULCHER DOOR ASM.
(Superseded to 532183058)

$34.99

$

In Stock, only 2 left!

0

17

Husqvarna 532184193

BOLT

$

$

Not available

18

Husqvarna 532198170

PLUG.MULCHER.RGD.21.

$37.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532408000

KIT.HSG.21.RGD.MC.ORG.CE
(Superseded to 583320001)

$157.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532418239

BRACKET.HNDL.ASM.21.RWGD.LT.OR

Note: LH

$15.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532418251

BRACKET.HNDL.ASM.21.RWGD.RT.OR

Note: RH

$14.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532428867

BOLT.HEX.HD.WASHER.5/16-18X.75

$6.49

$

In Stock, Qty 20+

0

23

Husqvarna 532163183

BOLT, HEX HEAD 5/16-18

$4.99

$

Usually ships in 3-10 days

0

24

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532161333

CLIPPING DEFLECTOR

$8.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532163409

SCREW

$7.49

$

In Stock, Qty 12

0

29

Husqvarna 532440386

CABLE.MZR.RGD.22.B&S/HON.ERGO

$18.99

$

In Stock, only 4 left!

0

30

Husqvarna 532421176

ADAPTER.BLADE/PULLEY.25M

$18.99

$

In Stock, Qty 6

0

31

Husqvarna 532199377

BLADE.21.PUSH

$27.99

$

In Stock, only 2 left!

0

32

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, Qty 20+

0

33

Husqvarna 532850263

LOCKWASHER
(Superseded to 810040600)

$3.99

$

In Stock, Qty 20+

0

34

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

37

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$7.49

$

In Stock, Qty 10

0

38

000000000

Note: B S 126T02-1616-H1 FOR SERVICE PARTS 1-800-233-3723

$

$

Not available

39

Husqvarna 581002904

GBAG.94710090.H-GRY.MS498.GEN
(Superseded to 581002901)

$47.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532411951

FRAME.GBAG.21.RWGD.SC

$

$

Not available

41

Husqvarna 532182166

DECAL.INTERNATIONL.CUTFINGER
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

42

Husqvarna 817060410

SCREW 14-20 X 5/8

$7.49

$

In Stock, only 2 left!

0

45

Husqvarna 532190510

MULCHER DOOR ASM.
(Superseded to 532183058)

$34.99

$

In Stock, only 2 left!

0

46

Husqvarna 532190512

DEFLECTOR, DISCHARGE
(Superseded to 532169699)

$

$

Not available

47

Husqvarna 532088349

NUT

$7.49

$

In Stock, only 3 left!

0

48

Husqvarna 532429001

BRACKET.ENG/BELTKEEPER.BZP

$7.49

$

In Stock, only 3 left!

0

59

Husqvarna 532186362

GRIP, FOAM

$12.99

$

In Stock, only 3 left!
