LC-210 (12C-959I190) - White Outdoor Lawn Boss 21" Walk-Behind Mower (2001) General Assembly Parts Diagram

Lawn Boss 21" Walk-Behind Mower

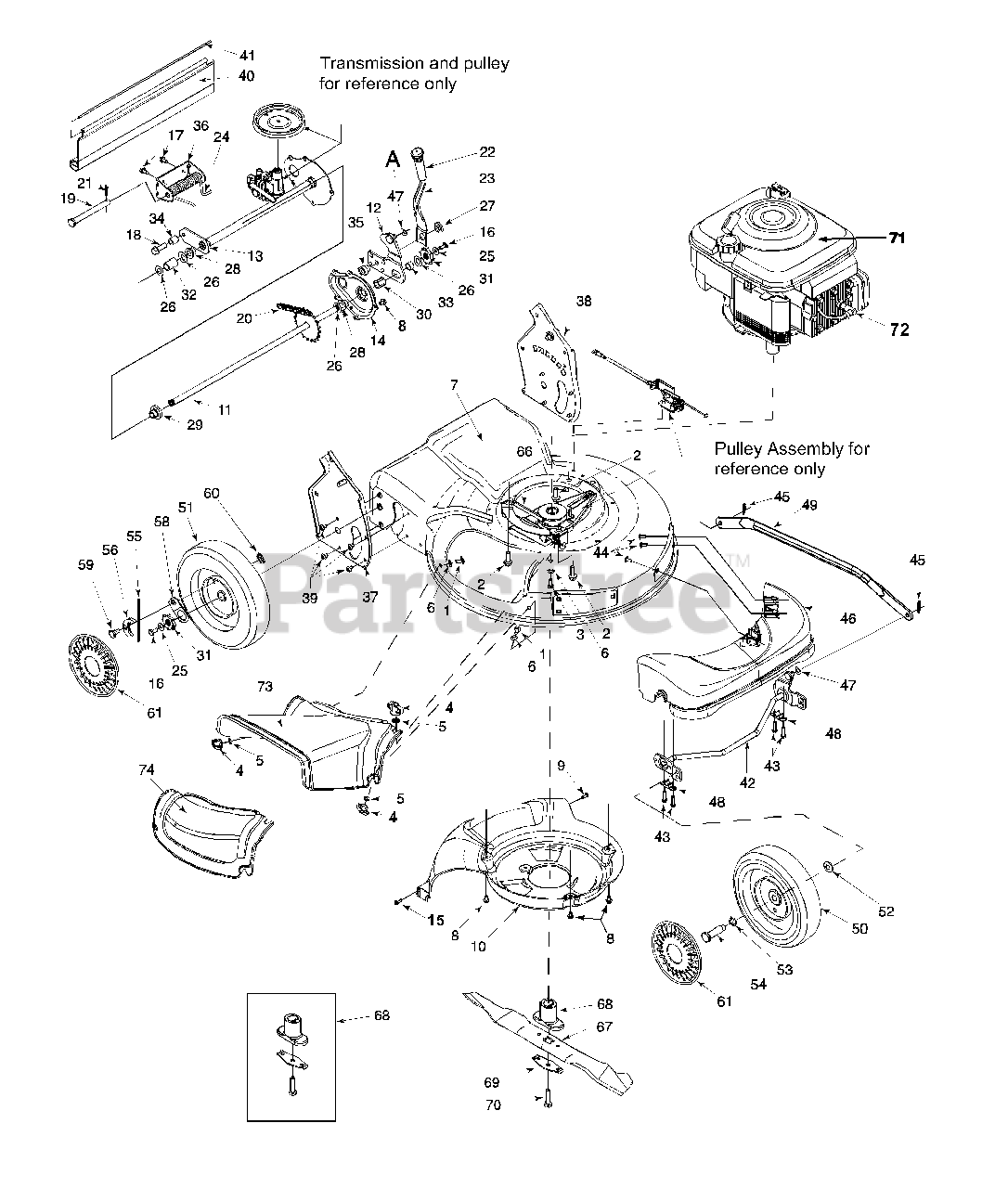

General Assembly Parts Diagram

  • Title

1

White Outdoor 710-0314

Carriage Bolt 1/4-20 x .62

$4.49

$

In Stock, only 3 left!

0

2

White Outdoor 710-0654A

TT Screw: 3/8-18:1.00

$3.99

$

In Stock, only 4 left!

0

3

White Outdoor 710-0703

Screw 1/4-20 x .750

$3.99

$

In Stock, Qty 20+

0

4

White Outdoor 712-0397

Wing Nut 1/4-20
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

5

White Outdoor 726-0233

Nut, Push .25 I.D. x .50 O.D.

$3.99

$

In Stock, Qty 11

0

6

White Outdoor 736-0204

Wash. Fl. .334 I.D.x .62 x.03

$3.99

$

In Stock, Qty 20+

0

7

White Outdoor 782-0046B

Deck - 21"

Variations

White Outdoor 782-0046B-0650

DECK-21" W/O ICON - RED METALLIC (0650)

$

$

Not available

White Outdoor 782-0046B-0665

DECK-21" W/O ICON - YARDMAN GREEN (0665)

$

$

Not available

$194.99

$

Usually ships in 3-6 days

0

8

White Outdoor 710-0653

TT Screw 1/4-20 x .375

$4.49

$

In Stock, Qty 16

0

9

UNKNOWN

$

$

Not available

10

White Outdoor 731-1828

Baffle
(Superseded to 731-08190A)

$34.99

$

In Stock, Qty 10

0

11

White Outdoor 638-0012

Rear Axle Ass'y
(Superseded to 938-0012A)

$69.99

$

Usually ships in 3-6 days

0

12

White Outdoor 682-0531

Pivot Arm Ass'y
(Superseded to 682-0531-0637)

Variations

White Outdoor 682-0531-0637

Pivot Arm, Rear - POWDER BLACK (0637)

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

13

White Outdoor 682-7526

Trans. Axle Ass'y
(Superseded to 682-7526-0637)

Variations

White Outdoor 682-7526-0637

AXLE CHAIN ASSEMBLY BLACK - POWDER BLACK (0637)

$122.99

$

Usually ships in 3-6 days

0

$122.99

$

Usually ships in 3-6 days

0

14

White Outdoor 682-7528

Chain Cover Ass'y
(Superseded to 682-7528-0637)

Variations

White Outdoor 682-7528-0637

Chain Assembly Cover, Black - POWDER BLACK (0637)

$

$

Not available

$

$

15

White Outdoor 710-0969

Truss Machine TT Screw, 1.0"

$4.49

$

In Stock, only 3 left!

0

16

White Outdoor 710-0751

Cap Screw HH 1/4-20 x .620

$3.99

$

In Stock, Qty 20+

0

17

White Outdoor 710-0896

AB Screw 1/4-14 x .825

$3.99

$

In Stock, Qty 20+

0

18

White Outdoor 710-1315

Screw, 3/8 116 x .25

$3.99

$

In Stock, Qty 20+

0

19

White Outdoor 711-0835

Clevis Pin .50 Dia. x 4.82 Lg.
(Superseded to 911-0835)

$11.99

$

In Stock, Qty 6

0

20

White Outdoor 713-0453

Chain-Endls. #48 .500P x 24L
(Superseded to 913-0453)

$11.99

$

In Stock, only 3 left!

0

21

White Outdoor 714-0474

Cotter Pin .125O.D. x .75

$4.49

$

In Stock, Qty 16

0

22

White Outdoor 720-0223

Foam Grip

$13.99

$

In Stock, Qty 10

0

23

White Outdoor 732-0803A

Spring Lever

$14.99

$

In Stock, Qty 20+

0

24

White Outdoor 732-0832

Torsion Spring

$17.99

$

Usually ships in 3-6 days

0

25

White Outdoor 736-0270

Bell Washer

$3.99

$

In Stock, Qty 13

0

26

White Outdoor 736-0369

Flat Washer

$4.49

$

In Stock, Qty 6

0

27

White Outdoor 738-0529

Shoulder Nut .825 Dia. x .165 Lg.
(Superseded to 938-0529)

$10.99

$

In Stock, Qty 5

0

28

White Outdoor 741-0324

Hx.Flg. Bearing
(Superseded to 741-0324A)

$7.49

$

In Stock, Qty 8

0

29

White Outdoor 741-0522

Hx.Flg. Bearing

$7.99

$

In Stock, only 2 left!

0

30

White Outdoor 741-0978

Hx. Slv. Bearing

$4.49

$

In Stock, Qty 6

0

31

White Outdoor 748-0318

Wheel Rachet
(Superseded to 948-0318)

$9.99

$

In Stock, Qty 8

0

32

White Outdoor 750-0151

Spacer
(Superseded to 950-0151)

$9.99

$

In Stock, Qty 20+

0

33

White Outdoor 750-0515

Spacer

$4.49

$

In Stock, Qty 7

0

34

White Outdoor 750-0807

Spacer

$5.99

$

Usually ships in 3-6 days

0

35

White Outdoor 750-1056

Shoulder Spacer
(Superseded to 950-1056)

$6.99

$

In Stock, only 2 left!

0

36

White Outdoor 782-0568

Bracket:Height Adjustment
(Superseded to 782-0568B-0637)

Variations

White Outdoor 782-0568-0637

BRACKET.LIFT ASSY. - POWDER BLACK (0637)

$

$

Not available

$

$

37

White Outdoor 682-3052

Handle Brkt. Assembly R.H.

Variations

White Outdoor 682-3052-0637

BRACKET HANDLE RH - POWDER BLACK (0637)

$

$

Not available

White Outdoor 682-3052-0665

BRACKET HANDLE RH - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 682-3052-0716

BRACKET HANDLE RH - CUB YELLOW-99 (0716)

$

$

Not available

White Outdoor 682-3052-0650

BRACKET HANDLE RH - RED METALLIC (0650)

$

$

Not available

White Outdoor 682-3052-0662

BRACKET HANDLE RH - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 682-3052-4015

BRACKET HANDLE RH - FIRE RED (4015)

$

$

Not available

$

$

38

White Outdoor 682-3053

Handle Brkt. Assembly L.H.

Variations

White Outdoor 682-3053-0637

BRACKET HANDLE LH - POWDER BLACK (0637)

$

$

Not available

White Outdoor 682-3053-0650

BRACKET HANDLE LH - RED METALLIC (0650)

$

$

Not available

White Outdoor 682-3053-0716

BRACKET HANDLE LH - CUB YELLOW-99 (0716)

$

$

Not available

White Outdoor 682-3053-0638

BRACKET HANDLE LH - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 682-3053-0662

BRACKET HANDLE LH - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 682-3053-0665

BRACKET HANDLE LH - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 682-3053-0689

BRACKET HANDLE LH - POLO GREEN (0689)

$

$

Not available

White Outdoor 682-3053-4015

BRACKET HANDLE LH - FIRE RED (4015)

$

$

Not available

$

$

39

White Outdoor 710-1348

AB Screw 1/4-14 x .500

$6.49

$

In Stock, only 3 left!

0

40

White Outdoor 731-1901

Trail Shield
(Superseded to 731-1901A)

$37.99

$

In Stock, only 4 left!

0

41

White Outdoor 732-0842

Trail Shield Wire

$5.99

$

In Stock, Qty 11

0

42

White Outdoor 611-0064

Front Axle Assembly
(Superseded to 611-0064-0637)

Variations

White Outdoor 611-0064-0498

Front Axle Assembly, Black - OLD CUB YELLOW (0498)

$91.99

$

Usually ships in 3-6 days

0

White Outdoor 611-0064-0637

Front Axle Assembly, Black - POWDER BLACK (0637)

$91.99

$

Usually ships in 3-6 days

0

White Outdoor 611-0064-0665

Front Axle Assembly, Black - YARDMAN GREEN (0665)

$91.99

$

Usually ships in 3-6 days

0

$91.99

$

Usually ships in 3-6 days

0

43

White Outdoor 710-1241

Wash Hd. Hx Screw

$6.49

$

In Stock, Qty 20+

0

44

White Outdoor 710-1242

Truss Torx Screw

$4.49

$

In Stock, Qty 19

0

45

White Outdoor 714-0104

Cotter Pin .072 x 1.12 Lg.

$3.99

$

In Stock, Qty 20+

0

46

White Outdoor 731-1834

Front Axle Cover

$117.99

$

Usually ships in 3-6 days

0

47

White Outdoor 736-0286

Bowed Washer
(Superseded to 936-0286)

$6.49

$

In Stock, only 2 left!

0

48

White Outdoor 741-0492A

Bush. Block .505 Dia. x .62

$5.99

$

In Stock, Qty 12

0

49

White Outdoor 782-0565

Control Arm
(Superseded to 782-0565-0637)

Variations

White Outdoor 782-0565-0498

ARM-CONTROL SGL LV - OLD CUB YELLOW (0498)

$34.99

$

Usually ships in 3-6 days

0

White Outdoor 782-0565-0637

ARM-CONTROL SGL LV - POWDER BLACK (0637)

$34.99

$

Usually ships in 3-6 days

0

White Outdoor 782-0565-0665

ARM-CONTROL SGL LV - YARDMAN GREEN (0665)

$34.99

$

Usually ships in 3-6 days

0

$34.99

$

Usually ships in 3-6 days

0

50

White Outdoor 734-2008

Wheel 8 x 2
(Superseded to 734-2008A)

$54.99

$

Usually ships in 3-6 days

0

51

White Outdoor 734-2010

Wheel 9 x 2
(Superseded to 734-2010B)

$47.99

$

In Stock, Qty 20+

0

52

White Outdoor 736-0105

Spring Washer .401 x .870 x .o63

$3.99

$

In Stock, Qty 20+

0

53

White Outdoor 736-0504

Wave Washer .510 x .750 x .017
(Superseded to 936-0504)

$4.49

$

In Stock, Qty 12

0

54

White Outdoor 738-0102

Shoulder Screw

$9.49

$

In Stock, Qty 11

0

55

White Outdoor 10622B

Ratchet Spring

$4.49

$

In Stock, Qty 20+

0

56

White Outdoor 748-0381

Pawl - R.H.

$11.99

$

In Stock, Qty 12

0

?57

White Outdoor 748-0188B

Pawl - L.H.
(Superseded to 948-0188B)

Note: (Not Illustrated)

$10.99

$

In Stock, Qty 18

0

58

White Outdoor 16855

Ratchet Pawl Plate

$5.99

$

In Stock, Qty 20+

0

59

White Outdoor 738-0137A

Hubcap - Gray

$9.49

$

In Stock, Qty 19

0

60

White Outdoor 712-0414

Top Lock Tab Weld Nut 1/4-20

$3.99

$

In Stock, Qty 20+

0

61

White Outdoor 731-0981A

Hubcap - Gray
(Superseded to 731-0981C)

$9.99

$

In Stock, Qty 6

0

66

White Outdoor 754-0460

Belt
(Superseded to 954-0460)

$19.99

$

In Stock, Qty 15

0

67

White Outdoor 742-0741

21" Mulching Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

68

White Outdoor 753-0609

Blade Adapter Kit

$37.99

$

In Stock, Qty 15

0

69

White Outdoor 736-0524A

Blade Bell Support
(Superseded to 736-0524B-1)

$5.49

$

In Stock, Qty 20+

0

70

White Outdoor 710-1257

Hex Bolt 3/8-24x2.5' Lg.

$7.49

$

In Stock, Qty 20+

0

71

Engine

$

$

Not available

72

White Outdoor 735-0639

Spark Plug Insulator

$

$

Not available

73

White Outdoor 731-1832

Side Discharge Chute

$

$

Not available

74

White Outdoor 731-1833

Mulch Cover
(Superseded to 931-1833A)

$41.99

$

In Stock, Qty 8

0
