LC-215 E (12BE999M190) - White Outdoor Lawn Boss 21" Walk-Behind Mower (2000) Drive & Transmission Parts Diagram

Lawn Boss 21" Walk-Behind Mower

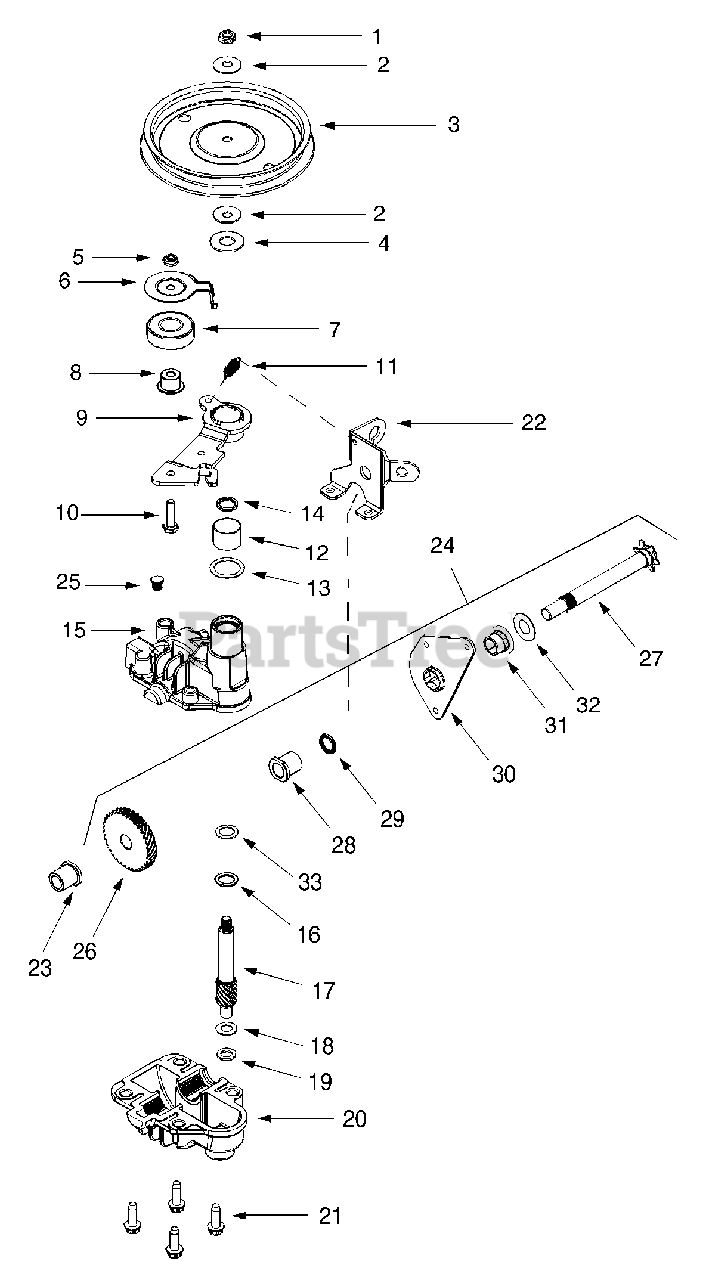

Drive & Transmission Parts Diagram

  • Title

1

White Outdoor 712-3025

Hx. Jam Nut, 5/16-24

$6.99

$

Usually ships in 3-6 days

0

2

White Outdoor 736-0425

Bell Wash. .325 x .930 x .045

$4.49

$

In Stock, Qty 16

0

3

White Outdoor 756-0656

Pulley

$34.99

$

Usually ships in 3-6 days

0

4

White Outdoor 736-3084

Fl. Wash. .510 x 1.120 x .060

$4.49

$

In Stock, Qty 20+

0

5

White Outdoor 712-0896

Hx. Jam Nut , 1/4-28

$4.49

$

In Stock, Qty 6

0

6

White Outdoor 782-7598

Belt Keeper

$14.99

$

In Stock, only 1 left!

0

7

White Outdoor 741-0600

Bearing
(Superseded to 941-0600)

$23.99

$

In Stock, Qty 20+

0

8

White Outdoor 750-1050

Flange Spacer

$4.99

$

Usually ships in 3-6 days

0

9

White Outdoor 682-0027A

Idler Bracket Assembly
(Superseded to 982-0027A)

$17.99

$

Usually ships in 3-6 days

0

10

White Outdoor 710-0299

Hx. Cap Scr. 1/4-28 x 1.00

$4.49

$

Usually ships in 3-6 days

0

11

White Outdoor 732-0849A

Extension Spring
(Superseded to 932-0849A)

$3.99

$

In Stock, Qty 5

0

12

White Outdoor 741-0682A

Bearing Sleeve

$10.99

$

In Stock, only 2 left!

0

13

White Outdoor 736-0570

Fl. Wash. .885 x 1.145 x.030
(Superseded to 936-0570)

$5.99

$

Usually ships in 3-6 days

0

14

White Outdoor 721-0329

Oil Seal
(Superseded to 921-0329)

$9.49

$

Usually ships in 3-6 days

0

15

White Outdoor 618-0253

Upper Housing Assembly

$

$

Not available

16

White Outdoor 736-0616

Thrust Washer
(Superseded to 936-0616)

$4.49

$

Usually ships in 3-6 days

0

17

White Outdoor 717-1487

Pinion Shaft, 10 T.
(Superseded to 917-1487)

$63.99

$

Usually ships in 3-6 days

0

18

White Outdoor 736-0314

Thr. Wash. 3/8 x .70 x .030

$6.49

$

Usually ships in 3-6 days

0

19

White Outdoor 736-0569

Thr. Wash. .388 x .625 x .062
(Superseded to 936-0569)

$

$

Not available

20

White Outdoor 618-0252

Lower Housing Assembly
(Superseded to 918-0252)

$42.99

$

Usually ships in 3-6 days

0

21

White Outdoor 710-0642

Hx. Scr. 1/2-20 x .75

$4.49

$

In Stock, Qty 20+

0

22

White Outdoor 782-7601A

Cable Bracket
(Superseded to 782-7601A-0637)

Variations

White Outdoor 782-7601A-0637

BRACKET. CABLE GUARD - POWDER BLACK (0637)

$

$

Not available

$

$

23

White Outdoor 741-0674

Bearing
(Superseded to 941-0674)

$8.99

$

Usually ships in 3-6 days

0

24

White Outdoor 611-0066

Shaft Assembly
(Superseded to 911-0066)

$

$

Not available

25

White Outdoor 721-0325

Plug

$4.49

$

In Stock, only 2 left!

0

26

White Outdoor 717-1469

Gear 34 T.

$58.99

$

Usually ships in 3-6 days

0

27

White Outdoor 711-1168

Output Shaft, 6 T.

$31.99

$

In Stock, only 1 left!

0

28

White Outdoor 741-0672

Flange Bearing

$

$

Not available

29

White Outdoor 721-0329

Oil Seal
(Superseded to 921-0329)

$9.49

$

Usually ships in 3-6 days

0

30

White Outdoor 782-7595

Pivot Bracket

$24.99

$

Usually ships in 3-6 days

0

31

White Outdoor 741-0324

Flange Bearing
(Superseded to 741-0324A)

$7.49

$

In Stock, Qty 8

0

32

White Outdoor 736-0369

Flat Washer

$4.49

$

In Stock, Qty 6

0

33

White Outdoor 741-0690

Bearing

$4.49

$

Usually ships in 3-6 days

0
