LC 221 A (961450026-01) - Husqvarna 21" Walk-Behind Mower (2016-09) HANDLE Parts Diagram

21" Walk-Behind Mower

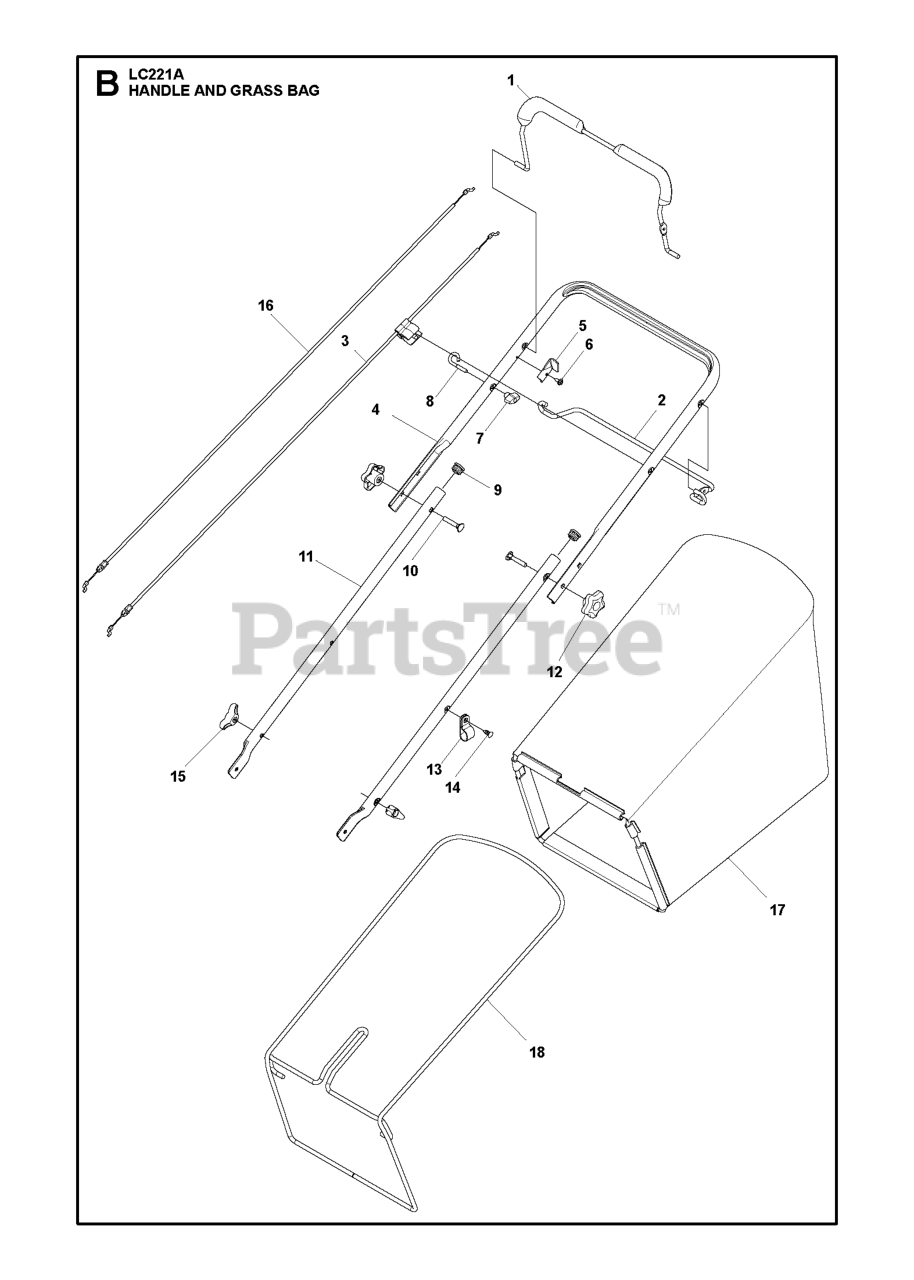

HANDLE Parts Diagram

  • Title

1

Husqvarna 587478302

BAIL.ARM.ASSY:STRAIGHT OM

Note: Straight

$33.99

$

In Stock, Qty 6

0

2

Husqvarna 532198453

BAIL.CONT.DR.S/S.ROUND.BLACK

Note: Drive Straight

$27.99

$

Usually ships in 3-10 days

0

3

Husqvarna 501188801

CABLE.MZR.DUAL.5.95EXT45.92CON

Note: Operator Presence Bail

$7.99

$

In Stock, Qty 20+

0

4

Husqvarna 589197902

HANDLE.UPP.DST.EXTCR.SM.SP.498

Note: Straight

$

$

Not available

5

Husqvarna 532430034

BRACKET.UPSTOP.RT

Note: Upstop

$

$

Not available

6

Husqvarna 532178848

SCREW

Note: 10-16 X 5 /8

$3.99

$

In Stock, Qty 14

0

7

Husqvarna 581912601

T-KNOB.NEW ROPE GUIDE

Note: T Rope Guide

$4.99

$

In Stock, Qty 16

0

8

Husqvarna 581902101

GUIDE.ROPE.BLK.ZINC.CHROM

Note: Rope

$

$

Not available

9

Husqvarna 532437516

PLUG.PLASTIC.7/8".14-20.GAUGE

Note: Plastic 7 /8 14-20 Gauge

$

$

Not available

10

Husqvarna 588040401

BOLT.CONCAVE.HEAD.RETAINING

Note: Concave Head Retaining

$3.99

$

In Stock, Qty 6

0

11

Husqvarna 501064002

HANDLE.LOW.2PC.2POS.21EFF.498

Note: Lower 2 piece 3 Position

$

$

Not available

12

Husqvarna 532182398

KNOB.HANDLE.PLASTIC.STAR.BLACK

Note: Handle Star

$7.49

$

In Stock, Qty 15

0

13

Husqvarna 532197991

CLIP.CABLE.BLK

Note: P /Cable

$3.99

$

In Stock, Qty 11

0

14

Husqvarna 532428124

FASTENER.PUSH.O.250X0.783

Note: Push 0 250 X 0 783

$2.49

$

In Stock, only 2 left!

0

15

Husqvarna 532191938

KNOB, DEFLECTOR
(Superseded to 532185577)

Note: Handle STANDARD

$9.99

$

In Stock, Qty 20+

0

16

Husqvarna 582598601

CABLE.DRIVE.UB.NA.21EFF.AW

Note: Drive Under-bail 21 AWD

$27.99

$

In Stock, Qty 20+

0

17

Husqvarna 587100409

GBAG.C361029EM.HUSQ.GRY.21EFF
(Superseded to 587100402)

Note: Husqvarna 21 AWD

$47.99

$

In Stock, Qty 20+

0

18

Husqvarna 586929102

FRAME.GBAG.AWD.21.BLACK

Note: Grass bag

$29.99

$

In Stock, Qty 14

0
