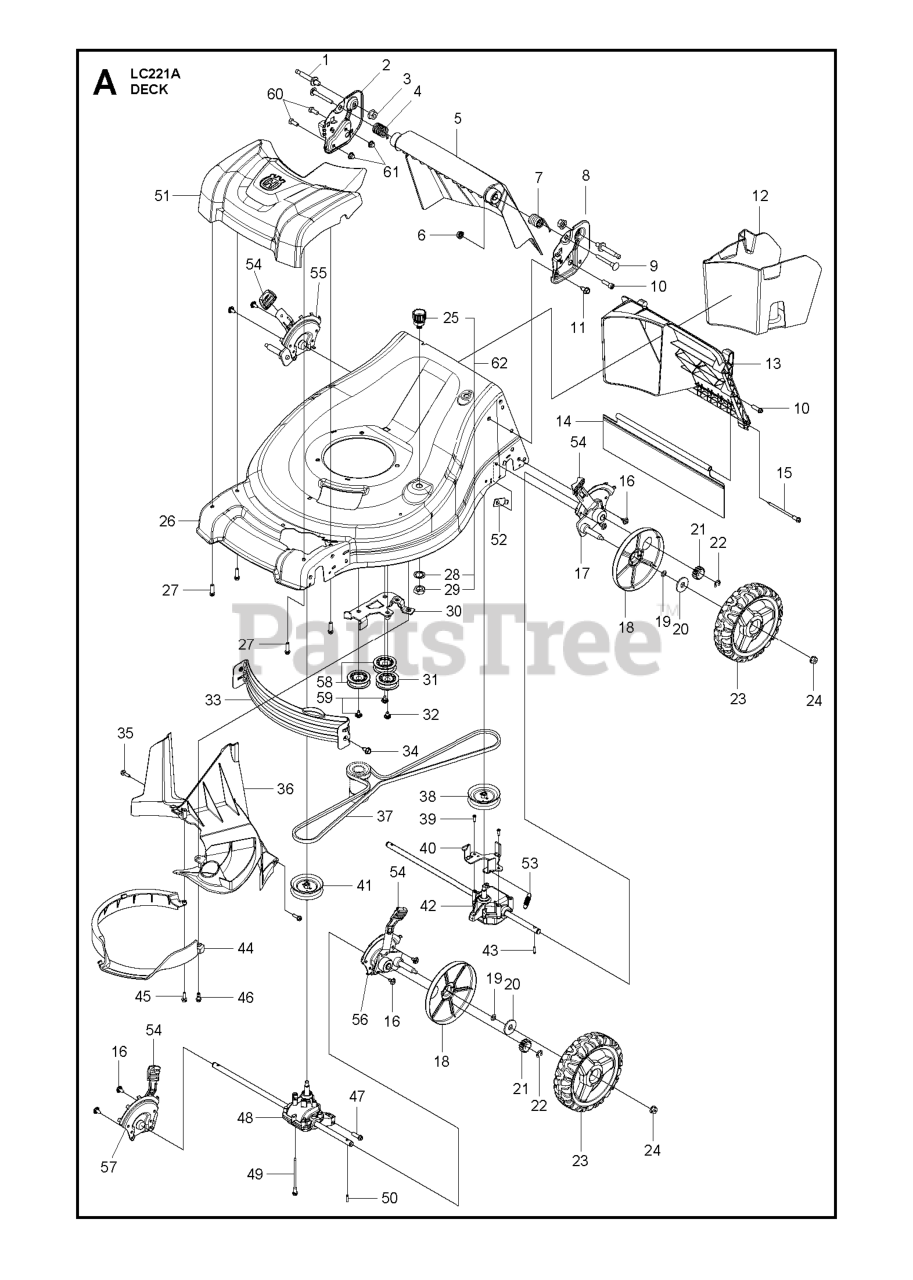

LC 221 A (967992601-00) - Husqvarna 21" Walk-Behind Mower MOWER DECK / CUTTING DECK Parts Diagram

21" Walk-Behind Mower

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

532421114

Husqvarna 532421114

KIT.WASH-OUT.PORT

Note: WASHOUT

$20.99

$

In Stock, only 3 left!

0

532409148

Husqvarna 532409148

NUT.HEX.FLANGE.3/8-16.LO(3 2)
(Superseded to 532409149)

Note: NUT

$1.49

$

In Stock, Qty 20+

0

598454101

Husqvarna 598454101

Guards

Note: REAR GUARD KIT

$17.99

$

Usually ships in 3-10 days

0

532404845

Husqvarna 532404845

PAWL, DRIVE

Note: PAWL

$5.99

$

In Stock, Qty 18

0

584299401

Husqvarna 584299401

SCREW.HI-LO. 5/16 X 1.00

Note: SCREW

$3.49

$

In Stock, Qty 20+

0

532163409

Husqvarna 532163409

SCREW

Note: SCREW

$3.49

$

Usually ships in 3-10 days

0

598453601

Husqvarna 598453601

Handles

Note: HANDLE BRACKET KIT

$43.99

$

In Stock, only 3 left!

0

587969201

Husqvarna 587969201

PULLEY.RWD.IDLER.DBL SEAL

Note: PULLEY

$20.99

$

In Stock, Qty 20+

0

580364609

Husqvarna 580364609

BELT.DRIVE.21EFF.AWD

Note: BELT

$17.99

$

In Stock, Qty 20+

0

598454301

Husqvarna 598454301

Baffles

Note: FRONT BAFFLE KIT

$22.99

$

Usually ships in 3-10 days

0

598453901

Husqvarna 598453901

Wheels

Note: 8" WHEEL ADJUSTER KIT

$193.99

$

Usually ships in 3-10 days

0

598454701

Husqvarna 598454701

Wheels
(Superseded to 580365301)

Note: 8" WHEEL KIT

$45.99

$

In Stock, Qty 11

0

598455001

Husqvarna 598455001

NEEDS DESCRIPTION

Note: REAR TRANSMISSION KIT

$

$

Currently unavailable

598454401

Husqvarna 598454401

Pulleys

Note: PULLEY KIT

$45.99

$

In Stock, only 1 left!

0

598453701

Husqvarna 598453701

Doors

Note: REAR DOOR KIT

$39.99

$

Usually ships in 3-10 days

0

598454201

Husqvarna 598454201

Inserts

Note: REAR INSERT KIT

$62.99

$

In Stock, only 3 left!

0

598453801

Husqvarna 598453801

Covers

Note: FRONT COVER KIT

$28.99

$

Usually ships in 3-10 days

0

587973001

Husqvarna 587973001

PULLEY.ASM.22+ AWD

Note: PULLEY

$26.99

$

In Stock, Qty 20+

0

598454901

Husqvarna 598454901

NEEDS DESCRIPTION

Note: FRONT TRANSMISSION KIT

$

$

Currently unavailable

598454501

Husqvarna 598454501

Wheels

Note: 8" WHEEL DRIVE KIT

$14.99

$

Usually ships in 3-10 days

0

598453501

Husqvarna 598453501

Grass Bags

Note: GRASS BAG, SIDE CHUTE, & MULCH PLUG KIT

$125.99

$

Usually ships in 3-10 days

0
