LC 247 iX (967862201) - Husqvarna Walk-Behind Mower (2019-01) MOTOR Parts Diagram

Walk-Behind Mower

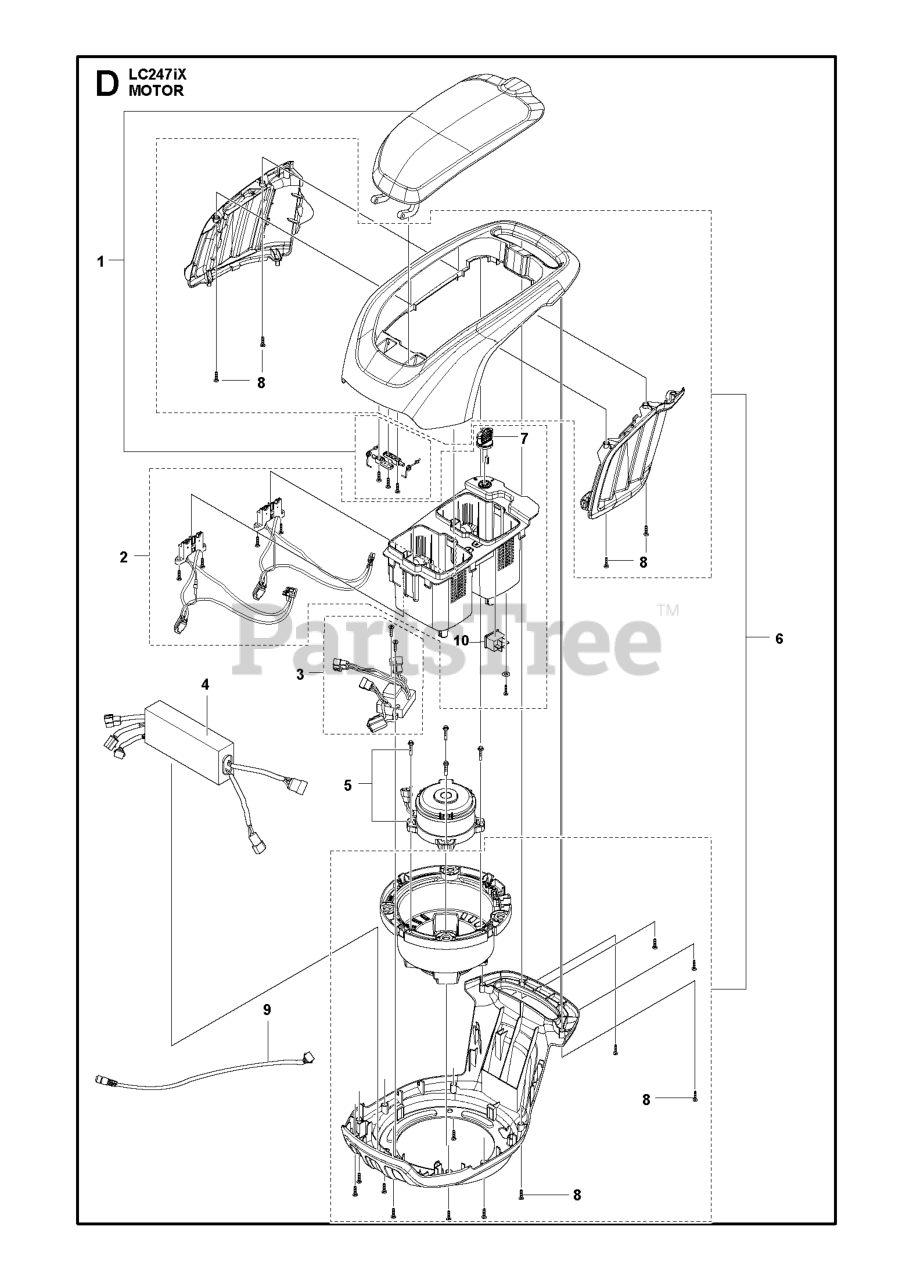

MOTOR Parts Diagram

  • Title

7

Husqvarna 501490101

KEY

Note: battery pocket key

$10.99

$

Usually ships in 3-10 days

0

4

Husqvarna 593132602

NEEDS DESCRIPTION

Note: Motor control box. Tyco - 2106300271A.

$

$

Currently unavailable

4

Husqvarna 593132601

NEEDS DESCRIPTION

Note: Motor control box. Local - 2108200014A.

$

$

Currently unavailable

2

Husqvarna 593124501

BATTERY BOX SPARE PART ASSY LC

Note: Battery pocket. Local - 90000309801.

$84.99

$

Usually ships in 3-10 days

0

9

Husqvarna 593722801

NEEDS DESCRIPTION

Note: handle

$

$

Currently unavailable

2

Husqvarna 593124504

NEEDS DESCRIPTION

Note: Battery pocket. Tyco - 2900200324.

$

$

Currently unavailable

3

Husqvarna 593133601

CONTACT PLATE SPARE PART ASSY

Note: Battery control plate

$66.99

$

Usually ships in 3-10 days

0

1

Husqvarna 593124301

LID ASSY SPARE PART ASSY LC247

Note: Powerhead lid and hinge

$12.99

$

Usually ships in 3-10 days

0

6

Husqvarna 593203901

ENGINE HOOD ASSY POWER UNIT LC

Note: Power unit cover

$182.99

$

Usually ships in 3-10 days

0

8

Husqvarna 593755501

SCREW SELF TAPPING DAYE# A2680

Note: Engine hood screws

$3.49

$

Usually ships in 3-10 days

0

10

Husqvarna 579686901

KEY SWITCH

$8.99

$

Usually ships in 3-10 days

0

5

Husqvarna 592749301

NEEDS DESCRIPTION

Note: Brushless motor 750W

$

$

Currently unavailable
