LC 247 Li (967662901) - Husqvarna Walk-Behind Mower (2018-01) BLADE MOTOR & CUTTING EQUIPMENT Parts Diagram

Walk-Behind Mower

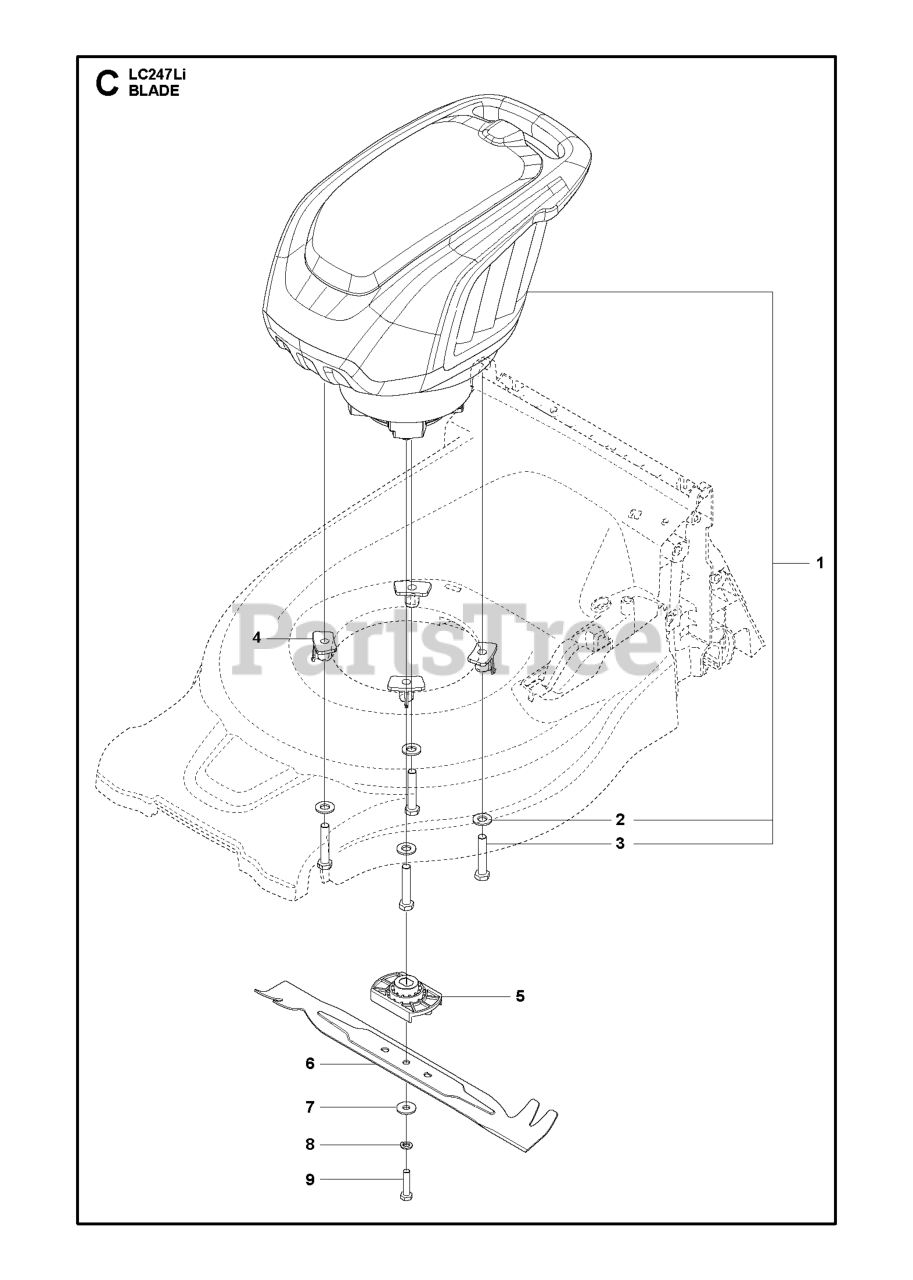

BLADE MOTOR & CUTTING EQUIPMENT Parts Diagram

  • Title

4

Husqvarna 578295101

NEEDS DESCRIPTION

Note: For engine screws, Plastic chassis

$

$

Currently unavailable

2

Husqvarna 504466801

NEEDS DESCRIPTION

Note: 10.5x22x2 BRB ZPB

$

$

Currently unavailable

5

Husqvarna 591084301

BLADE SUPPORT TRANSMISSION SYS

Note: Transmission system

$3.99

$

Usually ships in 3-10 days

0

1

Husqvarna 590531401

NEEDS DESCRIPTION

Note: Powerhead

$

$

Currently unavailable

7

Husqvarna 734116441

SPACER

$6.99

$

Usually ships in 3-10 days

0

9

Husqvarna 725245571

SCREW

Note: M8x30 8.8 ZBP

$5.99

$

In Stock, Qty 10

0

3

Husqvarna 725250271

SCREW

Note: M10x55 8.8 ZPB,ISO 4017

$

$

Not available

8

Husqvarna 579684201

SPRING WASHER

$4.99

$

Usually ships in 3-10 days

0

6

Husqvarna 590593410

NEEDS DESCRIPTION

Note: 47cm

$

$

Currently unavailable
