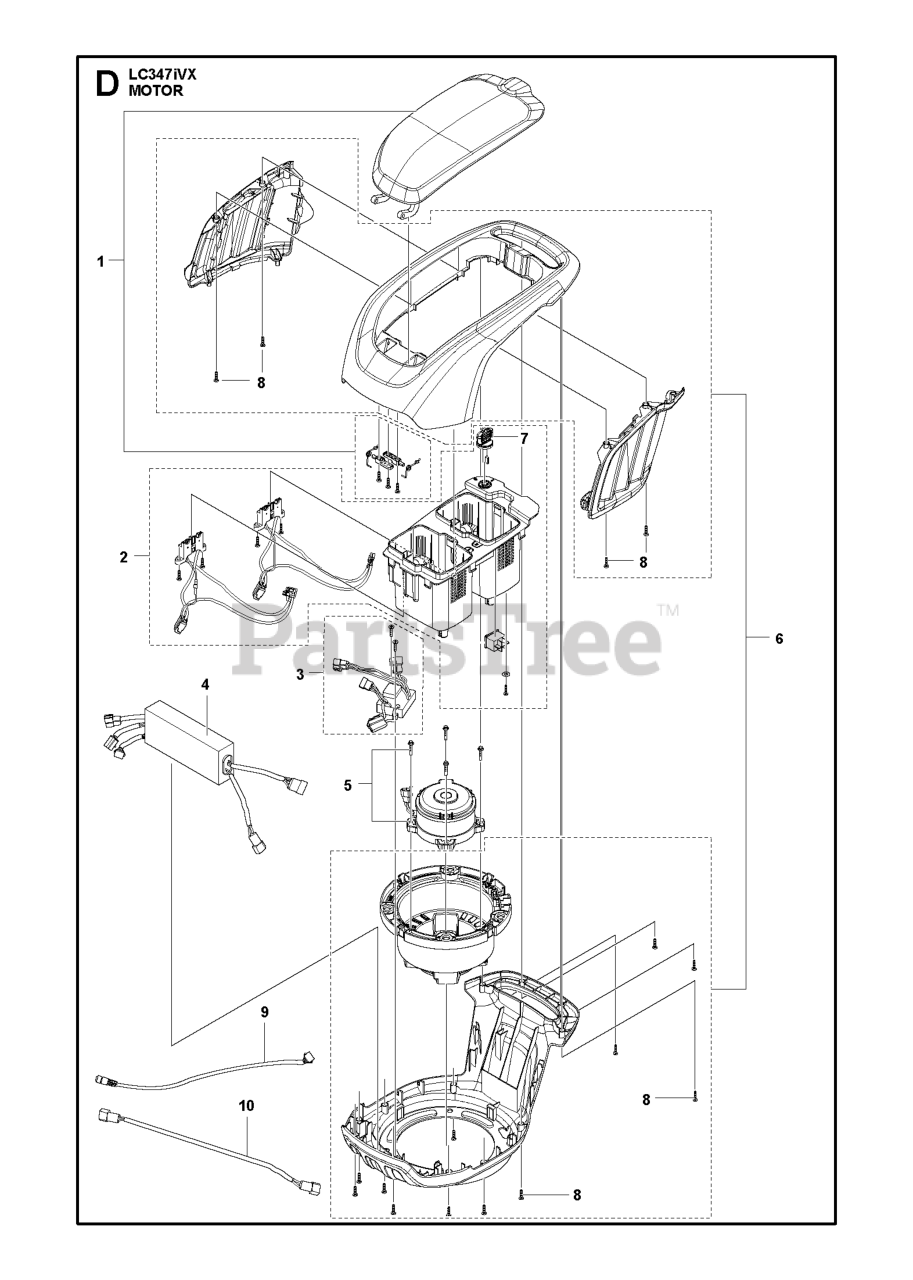

LC 347 iVX - Husqvarna Walk-Behind Mower (Original) MOTOR Parts Diagram

Walk-Behind Mower

MOTOR Parts Diagram

  • Title

10

Husqvarna 593722601

CABLE TRANSMISSION LC347VLI

Note: transmission

$26.99

$

Usually ships in 3-10 days

0

5

Husqvarna 592749302

NEEDS DESCRIPTION

Note: Use in models after S/N 20191900001. Tyco - 2102300183A.

$

$

Currently unavailable

8

Husqvarna 593755501

SCREW SELF TAPPING DAYE# A2680

Note: Engine hood screws

$3.49

$

Usually ships in 3-10 days

0

3

Husqvarna 593133601

CONTACT PLATE SPARE PART ASSY

Note: Battery control plate. Local - 2108200011A.

$102.99

$

Usually ships in 3-10 days

0

7

Husqvarna 501490101

KEY

Note: battery pocket key

$6.99

$

Usually ships in 3-10 days

0

4

Husqvarna 593132701

NEEDS DESCRIPTION

Note: Motor control box. Local - 2108200009A.

$

$

Currently unavailable

2

Husqvarna 593124501

BATTERY BOX SPARE PART ASSY LC

Note: Battery pocket

$84.99

$

Usually ships in 3-10 days

0

1

Husqvarna 593124301

LID ASSY SPARE PART ASSY LC247

Note: Powerhead lid and hinge

$22.99

$

Usually ships in 3-10 days

0

4

Husqvarna 593132703

NEEDS DESCRIPTION

Note: Use in models after S/N 20191900001. Tyco - 2106300272A.

$

$

Currently unavailable

6

Husqvarna 593203901

ENGINE HOOD ASSY POWER UNIT LC

Note: Power unit cover

$182.99

$

Usually ships in 3-10 days

0

3

Husqvarna 593133603

NEEDS DESCRIPTION

Note: Use in models after S/N 20191900001. Tyco - 2108900172A.

$

$

Currently unavailable

9

Husqvarna 593722801

NEEDS DESCRIPTION

Note: handle

$

$

Currently unavailable

5

Husqvarna 592749301

NEEDS DESCRIPTION

Note: Brushless motor 750W. Local - 2102200005A.

$

$

Currently unavailable
