LC 353 iV (967979801) - Husqvarna Walk-Behind Mower (2020-01) MOTOR Parts Diagram

Walk-Behind Mower

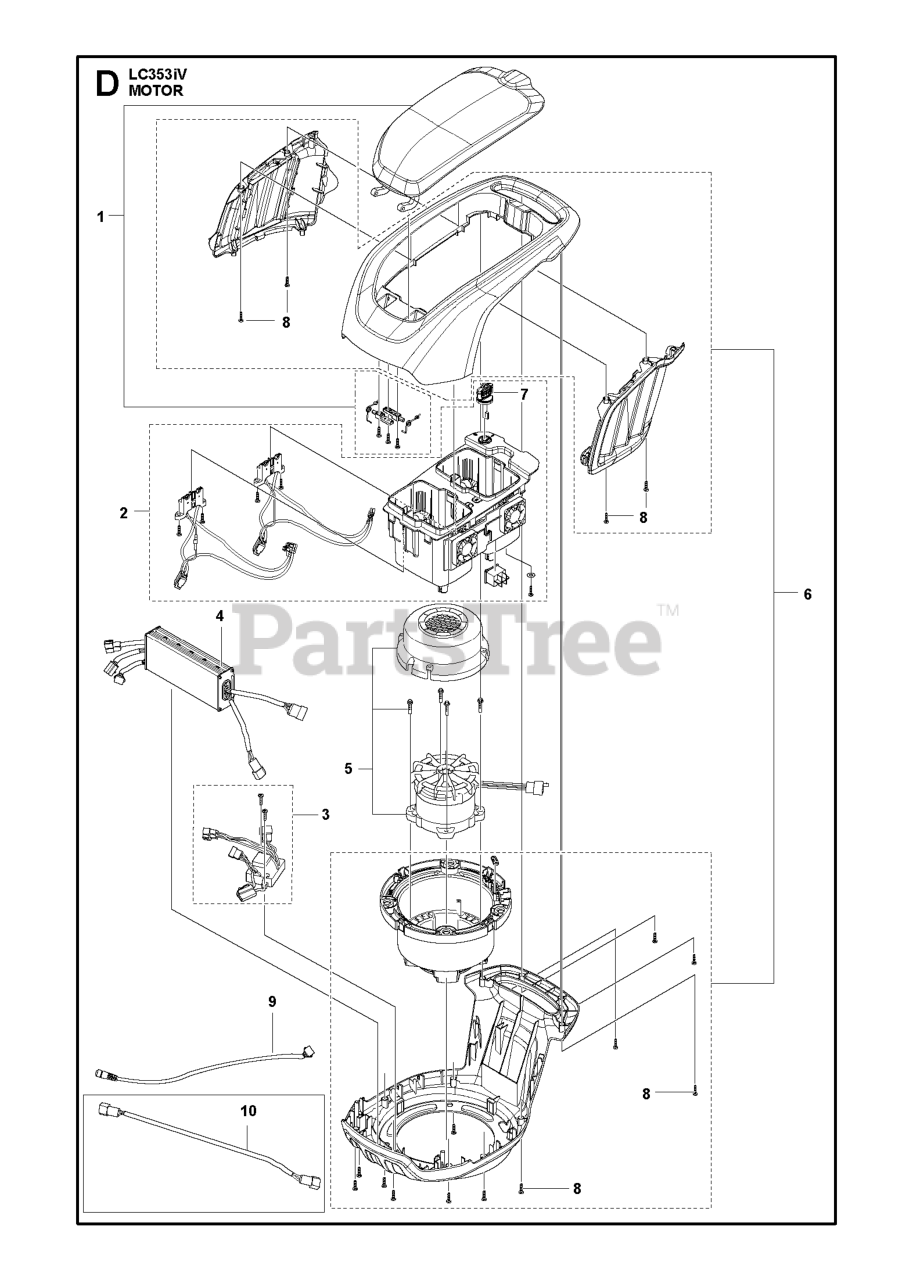

MOTOR Parts Diagram

  • Title

6

Husqvarna 593203901

ENGINE HOOD ASSY POWER UNIT LC

Note: Power unit cover

$182.99

$

Usually ships in 3-10 days

0

3

Husqvarna 593133602

NEEDS DESCRIPTION

Note: Battery control plate

$

$

Currently unavailable

1

Husqvarna 593124301

LID ASSY SPARE PART ASSY LC247

Note: Powerhead lid and hinge

$12.99

$

Usually ships in 3-10 days

0

4

Husqvarna 593132702

NEEDS DESCRIPTION

Note: Motor control box

$

$

Currently unavailable

5

Husqvarna 593783802

NEEDS DESCRIPTION

Note: Brushless motor 900W

$

$

Currently unavailable

9

Husqvarna 593722801

NEEDS DESCRIPTION

Note: handle

$

$

Currently unavailable

7

Husqvarna 501490101

KEY

Note: battery pocket key

$10.99

$

Usually ships in 3-10 days

0

8

Husqvarna 593755501

SCREW SELF TAPPING DAYE# A2680

Note: Engine hood screws

$3.49

$

Usually ships in 3-10 days

0

2

Husqvarna 593124502

NEEDS DESCRIPTION

Note: Battery pocket

$

$

Currently unavailable

10

Husqvarna 593722601

CABLE TRANSMISSION LC347VLI

Note: transmission

$14.99

$

Usually ships in 3-10 days

0
