LC 353 iVX (967862001) - Husqvarna Walk-Behind Mower (2019-01) HANDLE Parts Diagram

Walk-Behind Mower

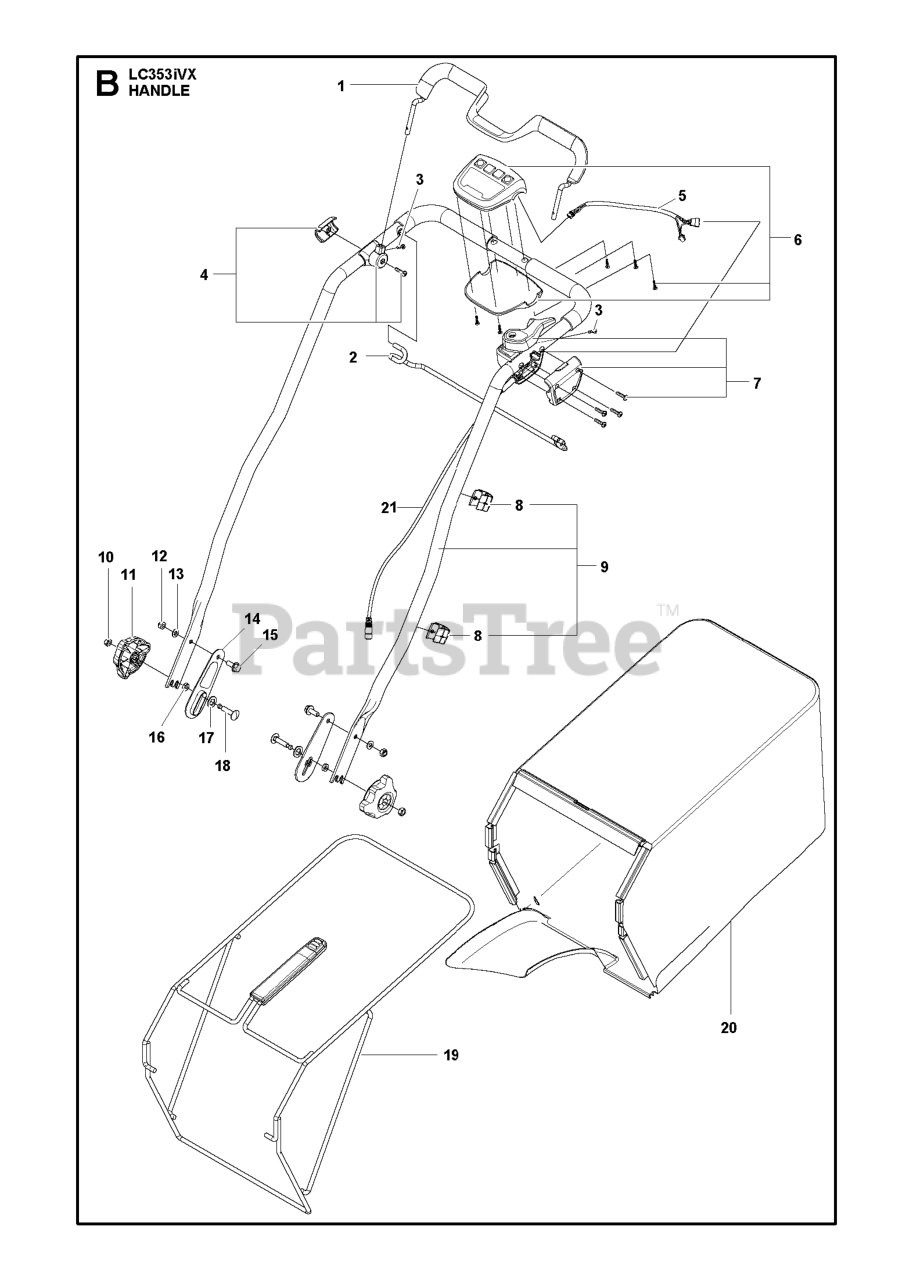

HANDLE Parts Diagram

  • Title

1

Husqvarna 596253601

Bails

Note: Handle assy, OPC bail kit

$33.99

$

Usually ships in 3-10 days

0

14

Husqvarna 587780401

Washers

Note: Washer handle/handlesupport

$5.99

$

Usually ships in 3-10 days

0

20

Husqvarna 501856601

NEEDS DESCRIPTION

Note: Grassbag

$

$

Currently unavailable

8

Husqvarna 591086401

CABLE HOLDER HANDLE ASSY

Note: Handle mounted clip

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 593198601

EXTENSION CABLE CONTROL PANEL

Note: Control panel assy cable

$8.49

$

Usually ships in 3-10 days

0

18

Husqvarna 588157302

Bolts

Note: Esloc,Carriage Bolt M8

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 731231801

NUT
(Superseded to 695008078)

Note: M8 8 ZPB,ISO 4032

$

$

Not available

16

Husqvarna 731431801

NUT ML6M M8

Note: M8 St 04 ZPB,ISO 4035

$3.99

$

In Stock, only 2 left!

0

7

Husqvarna 593118001

SWITCHBOX ASSY SPARE PART ASSY

Note: Push

$71.99

$

Usually ships in 3-10 days

0

11

Husqvarna 587237201

Knobs

Note: handle

$11.99

$

Usually ships in 3-10 days

0

13

Husqvarna 734182051

WASHERS

Note: 8x16x1.5 St ZPB,Type NB

$3.99

$

Usually ships in 3-10 days

0

4

Husqvarna 593118701

BAIL ARM ASSY SPARE PART ASSY

Note: Bail support assembly

$14.99

$

Usually ships in 3-10 days

0

12

Husqvarna 732211801

LOCKNUT M8

Note: M8-8

$3.99

$

In Stock, only 4 left!

0

15

Husqvarna 506570104

BOLT

Note: M8x20 8.8 ZPB,EHHFM

$7.99

$

Usually ships in 3-10 days

0

2

Husqvarna 587101802

Bails

Note: Drive bail

$27.99

$

Usually ships in 3-10 days

0

6

Husqvarna 596253002

NEEDS DESCRIPTION

Note: Control board, Drive

$

$

Currently unavailable

21

Husqvarna 597688701

Cables

$21.99

$

In Stock, only 2 left!

0

19

Husqvarna 501716001

NEEDS DESCRIPTION

Note: Bag frame

$

$

Currently unavailable

3

Husqvarna 593198701

DRIVE SCREW HANDLE ASSY M4 BAI

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 596280301

NEEDS DESCRIPTION

Note: Handle assy

$

$

Currently unavailable

17

Husqvarna 588157401

Washers

Note: Nylon Washer

$3.99

$

Usually ships in 3-10 days

0
