LC 353 iVX (967862002) - Husqvarna Walk-Behind Mower (2019-01) MOWER DECK / CUTTING DECK Parts Diagram

Walk-Behind Mower

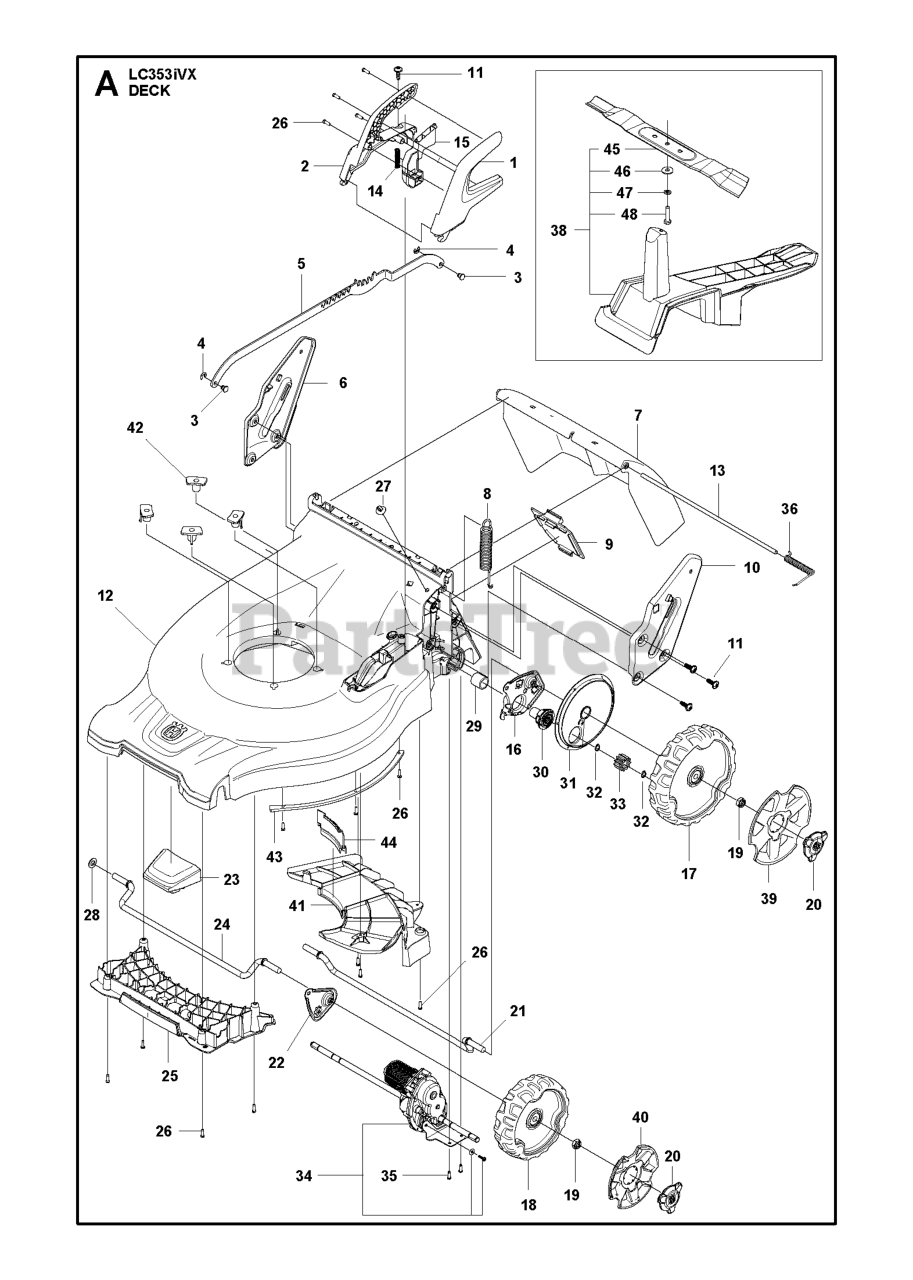

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

45

Husqvarna 595007210

NEEDS DESCRIPTION

$

$

Currently unavailable

25

Husqvarna 501910301

NEEDS DESCRIPTION

Note: Husqvarna, Front

$

$

Currently unavailable

23

Husqvarna 594727201

NEEDS DESCRIPTION

Note: COUNTERWEIGHT

$

$

Currently unavailable

13

Husqvarna 586984602

NEEDS DESCRIPTION

Note: Hatch rear door

$

$

Currently unavailable

46

Husqvarna 734116441

SPACER

Note: SRKB 8.4/25X2

$6.99

$

Usually ships in 3-10 days

0

39

Husqvarna 588752001

NEEDS DESCRIPTION

Note: 230 Husqvarna

$

$

Currently unavailable

44

Husqvarna 594099001

NEEDS DESCRIPTION

Note: 53cm electric

$

$

Currently unavailable

2

Husqvarna 587203801

NEEDS DESCRIPTION

Note: Husqvarna, Suspension - Right - Height adjustment

$

$

Currently unavailable

22

Husqvarna 587072401

NEEDS DESCRIPTION

Note: Front idler 170

$

$

Currently unavailable

47

Husqvarna 579684201

SPRING WASHER

$4.99

$

Usually ships in 3-10 days

0

3

Husqvarna 587687001

NEEDS DESCRIPTION

Note: Suspension

$

$

Currently unavailable

4

Husqvarna 735311220

Retaining Ring

Note: 7x0.9 St PP,SHAFTS

$

$

Not available

42

Husqvarna 578295101

NEEDS DESCRIPTION

Note: For engine screws, Plastic chassis

$

$

Currently unavailable

7

Husqvarna 501716102

NEEDS DESCRIPTION

Note: Rear door 53cm, Powerhead

$

$

Currently unavailable

15

Husqvarna 587697401

NEEDS DESCRIPTION

Note: ASSY - Suspension - Height adjustment

$

$

Currently unavailable

34

Husqvarna 594728801

NEEDS DESCRIPTION

Note: Assy

$

$

Currently unavailable

41

Husqvarna 501715501

NEEDS DESCRIPTION

Note: Belt cover 53 cm

$

$

Currently unavailable

26

Husqvarna 502435301

SCREW ITXPANT T50X16 ZN/FE (A

Note: T50x16 Zn/Fe (A009)

$2.49

$

Usually ships in 3-10 days

0

11

Husqvarna 578175802

NEEDS DESCRIPTION

Note: 8x24, TBO, For Thermoplastics

$

$

Currently unavailable

33

Husqvarna 544342301

Pinions

Note: Full Width, PM, 11 T, 21.25mm Root Diam

$14.99

$

Usually ships in 3-10 days

0

27

Husqvarna 579317401

NEEDS DESCRIPTION

Note: FIR TREE 170x5

$

$

Currently unavailable

43

Husqvarna 582022801

NEEDS DESCRIPTION

Note: Chassis 53 cm

$

$

Currently unavailable

8

Husqvarna 588827701

NEEDS DESCRIPTION

Note: 53 cm,Balance - Suspension

$

$

Currently unavailable

40

Husqvarna 588752101

NEEDS DESCRIPTION

Note: 190 Husqvarna

$

$

Currently unavailable

31

Husqvarna 589639801

NEEDS DESCRIPTION

Note: Dust cover, 230

$

$

Currently unavailable

9

Husqvarna 587095402

NEEDS DESCRIPTION

Note: Service door

$

$

Currently unavailable

1

Husqvarna 587203701

NEEDS DESCRIPTION

Note: Husqvarna, Suspension - Left - Height adjustment

$

$

Currently unavailable

21

Husqvarna 587072603

NEEDS DESCRIPTION

Note: Rear 53 cm,Suspension

$

$

Currently unavailable

36

Husqvarna 587101501

NEEDS DESCRIPTION

Note: hatch

$

$

Currently unavailable

14

Husqvarna 589597601

NEEDS DESCRIPTION

Note: HA Button

$

$

Currently unavailable

32

Husqvarna 735311401

NEEDS DESCRIPTION

Note: 12x1 st ZPB, SGA

$

$

Not available

17

Husqvarna 588749601

NEEDS DESCRIPTION

Note: Husqvarna, With Sleeve, 230, Drive

$

$

Currently unavailable

29

Husqvarna 579682802

NEEDS DESCRIPTION

Note: Rubber

$

$

Currently unavailable

30

Husqvarna 501861001

Note: ASSY

$

$

Currently unavailable

6

Husqvarna 587212302

NEEDS DESCRIPTION

Note: right

$

$

Currently unavailable

10

Husqvarna 587212102

NEEDS DESCRIPTION

Note: left

$

$

Currently unavailable

38

Husqvarna 595001101

NEEDS DESCRIPTION

Note: Mulch plug and combi blade kit

$

$

Currently unavailable

12

Husqvarna 501704801

NEEDS DESCRIPTION

Note: Husqvarna, 53 cm

$

$

Currently unavailable

18

Husqvarna 588749701

NEEDS DESCRIPTION

Note: Husqvarna, With Sleeve, 190, Idler

$

$

Currently unavailable

24

Husqvarna 587072604

NEEDS DESCRIPTION

Note: Front 47 cm, Suspension

$

$

Currently unavailable

5

Husqvarna 588827801

NEEDS DESCRIPTION

Note: Suspension 190/230

$

$

Currently unavailable

28

Husqvarna 577092801

Washers

Note: 12/22/2 FZB ISO7089

$2.49

$

Usually ships in 3-10 days

0

35

Husqvarna 502435301

SCREW ITXPANT T50X16 ZN/FE (A

Note: T50x16 Zn/Fe (A009)

$2.49

$

Usually ships in 3-10 days

0

19

Husqvarna 587990901

NEEDS DESCRIPTION

Note: Lock, M12x10

$

$

Currently unavailable

20

Husqvarna 584159401

NUT CAP

Note: Nut cap

$6.99

$

Usually ships in 3-10 days

0

48

Husqvarna 725245571

SCREW

Note: M8x30 8.8 ZPB

$5.99

$

In Stock, Qty 10

0

16

Husqvarna 587072501

NEEDS DESCRIPTION

Note: Rear idler 210

$

$

Currently unavailable
