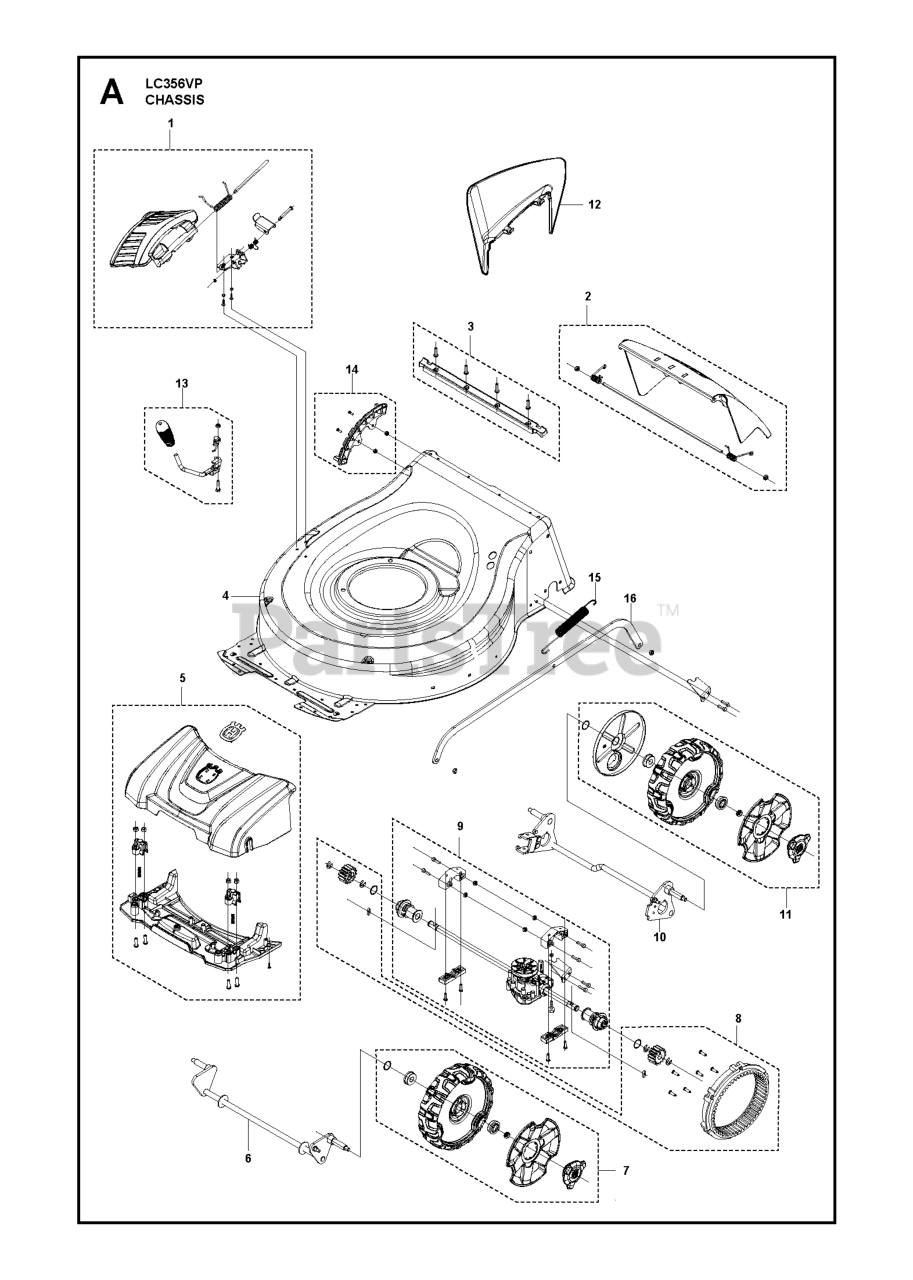

LC 356 VP (967988801) - Husqvarna Walk-Behind Mower (2019-11) CHASSIS Parts Diagram

Walk-Behind Mower

CHASSIS Parts Diagram

  • Title

3

Husqvarna 598825701

NEEDS DESCRIPTION

Note: SEALING PLATE

$

$

Currently unavailable

7

Husqvarna 598512901

Wheels

Note: FRONT WHEEL

$37.99

$

Usually ships in 3-10 days

0

6

Husqvarna 598818801

NEEDS DESCRIPTION

Note: WHEEL AXLE

$

$

Currently unavailable

16

Husqvarna 599139201

NEEDS DESCRIPTION

Note: connecting rod

$

$

Currently unavailable

2

Husqvarna 598684118

NEEDS DESCRIPTION

Note: REAR DOOR

$

$

Currently unavailable

10

Husqvarna 534207001

NEEDS DESCRIPTION

Note: WHEEL AXLE. Use in models after S/N 20204900021.

$

$

Currently unavailable

15

Husqvarna 599138901

NEEDS DESCRIPTION

Note: tension spring of connecting rod

$

$

Currently unavailable

1

Husqvarna 598684112

NEEDS DESCRIPTION

Note: SIDE DISCHARGE PLATE

$

$

Currently unavailable

5

Husqvarna 598684123

NEEDS DESCRIPTION

Note: FRONT COVER

$

$

Currently unavailable

4

Husqvarna 598861101

NEEDS DESCRIPTION

Note: chassis

$

$

Currently unavailable

8

Husqvarna 598684117

NEEDS DESCRIPTION

Note: WHEEL DRIVE

$

$

Currently unavailable

9

Husqvarna 598684116

NEEDS DESCRIPTION

Note: REAR TRANSMISSION. See SB: B1210019A-07.

$

$

Currently unavailable

10

Husqvarna 598684110

NEEDS DESCRIPTION

Note: WHEEL AXLE. Use in models before S/N 20204900021.

$

$

Currently unavailable

14

Husqvarna 599139001

NEEDS DESCRIPTION

Note: HEIGHT ADJUSTMENT PLATE

$

$

Currently unavailable

13

Husqvarna 599139101

NEEDS DESCRIPTION

Note: HEIGHT ADJUSTMENT HANDLE

$

$

Currently unavailable

9

Husqvarna 534204901

NEEDS DESCRIPTION

Note: REAR TRANSMISSION. Use in models after S/N 20204900021.

$

$

Currently unavailable

12

Husqvarna 598597301

NEEDS DESCRIPTION

Note: SIDE DISCHARGE PROTECTIVE COVER

$

$

Currently unavailable

11

Husqvarna 598684103

NEEDS DESCRIPTION

Note: FRONT WHEEL

$

$

Currently unavailable
