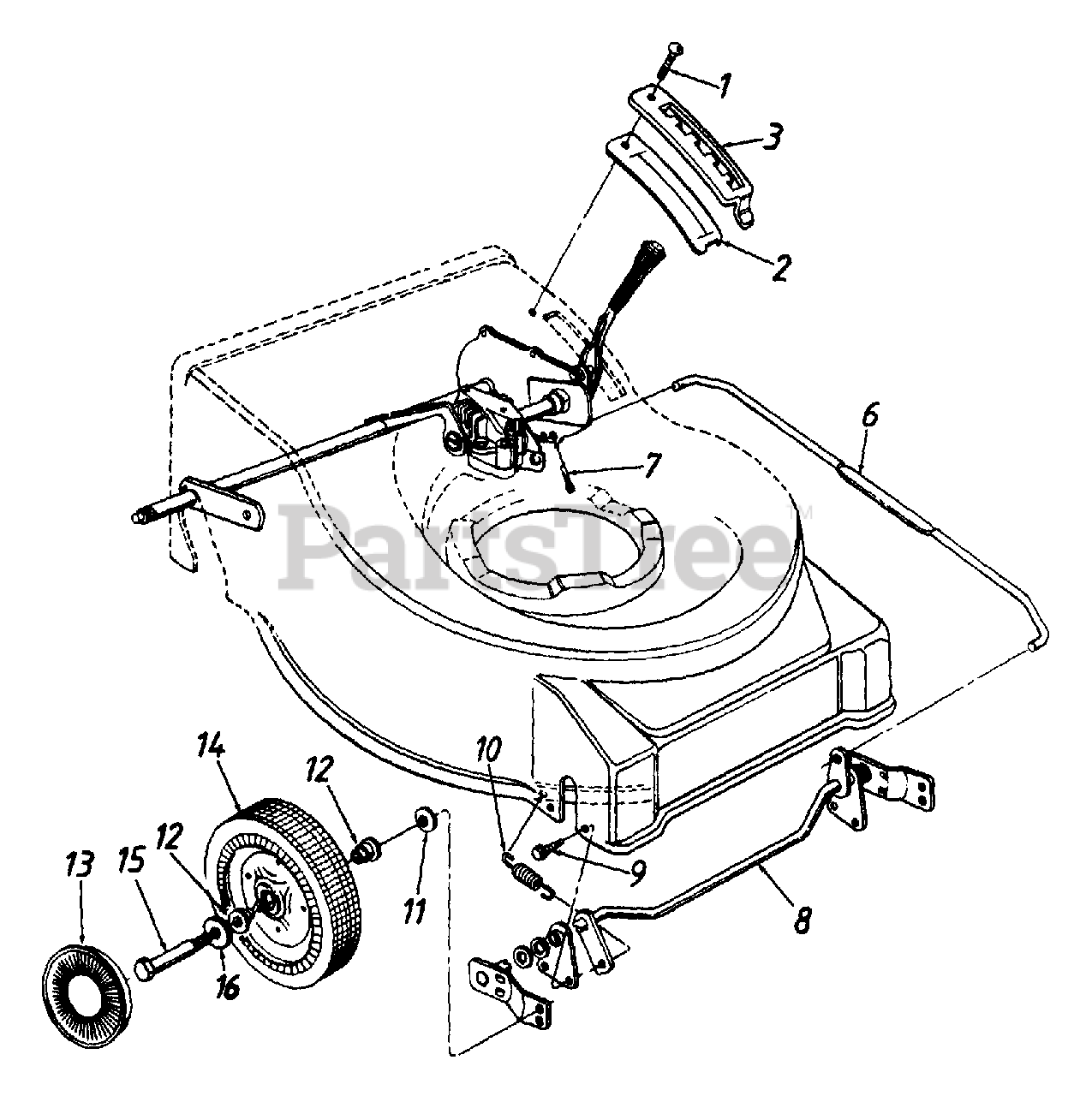

LC-488 N (125-488N190) - White Outdoor Lawn Boss 21" Walk-Behind Mower (1995) Height Adjustment & Wheel Assembly Parts Diagram

Lawn Boss 21" Walk-Behind Mower

Height Adjustment & Wheel Assembly Parts Diagram

  • Title

1

White Outdoor 710-1017

Torx Mach. AB-Tap Scr. 1/4 x .62" Lg.

$8.99

$

In Stock, Qty 6

0

2

White Outdoor 721-0216

Height Adjustment Support

$

$

Not available

3

White Outdoor 17323

Height Adjustment Plate

$

$

Not available

6

White Outdoor 747-0699

Height Adj. Connecting Rod

$

$

Not available

7

White Outdoor 714-0507

Cotter Pin 3/32" Dia.

$4.99

$

In Stock, only 3 left!

0

8

White Outdoor 17022

Front Axle Ass'y.
(Superseded to 17022-0637)

Variations

17022-0637

White Outdoor 17022-0637

AXLE ASSEMBLY BLACK - POWDER BLACK (0637)

$144.99

$

Usually ships in 3-6 days

0

$144.99

$

Usually ships in 3-6 days

0

9

White Outdoor 710-0352

Hex L-Wash. Hd. AB-Tap Scr. 1/4 x .38" Lg.

$4.99

$

Usually ships in 3-6 days

0

10

White Outdoor 732-0589

Extension Spring 2.39" Lg.

$

$

Not available

11

White Outdoor 736-0105

Bell-Wash. .380" I.D. x .88"

$4.99

$

In Stock, Qty 14

0

12

White Outdoor 741-0484

Ball Bearing 1/2" I.D.
(Superseded to 941-0484)

$7.99

$

Usually ships in 3-6 days

0

13

White Outdoor 731-0981A

Hub Cap
(Superseded to 731-0981C)

$11.99

$

In Stock, Qty 5

0

14

White Outdoor 734-1793

Wheel Ass'y. Comp. - Front

$

$

Not available

15

White Outdoor 738-0102

Shld. Bolt .498" Dia. x 1.45"

$10.99

$

In Stock, Qty 5

0

16

White Outdoor 736-0504

Wave Wash. .51" I.D. x .78"
(Superseded to 936-0504)

$4.99

$

Usually ships in 3-6 days

0
