LC-538 A (125-694A190) - White Outdoor Lawn Boss 18" Walk-Behind Mower (1995) Main Assembly Parts Diagram

Lawn Boss 18" Walk-Behind Mower

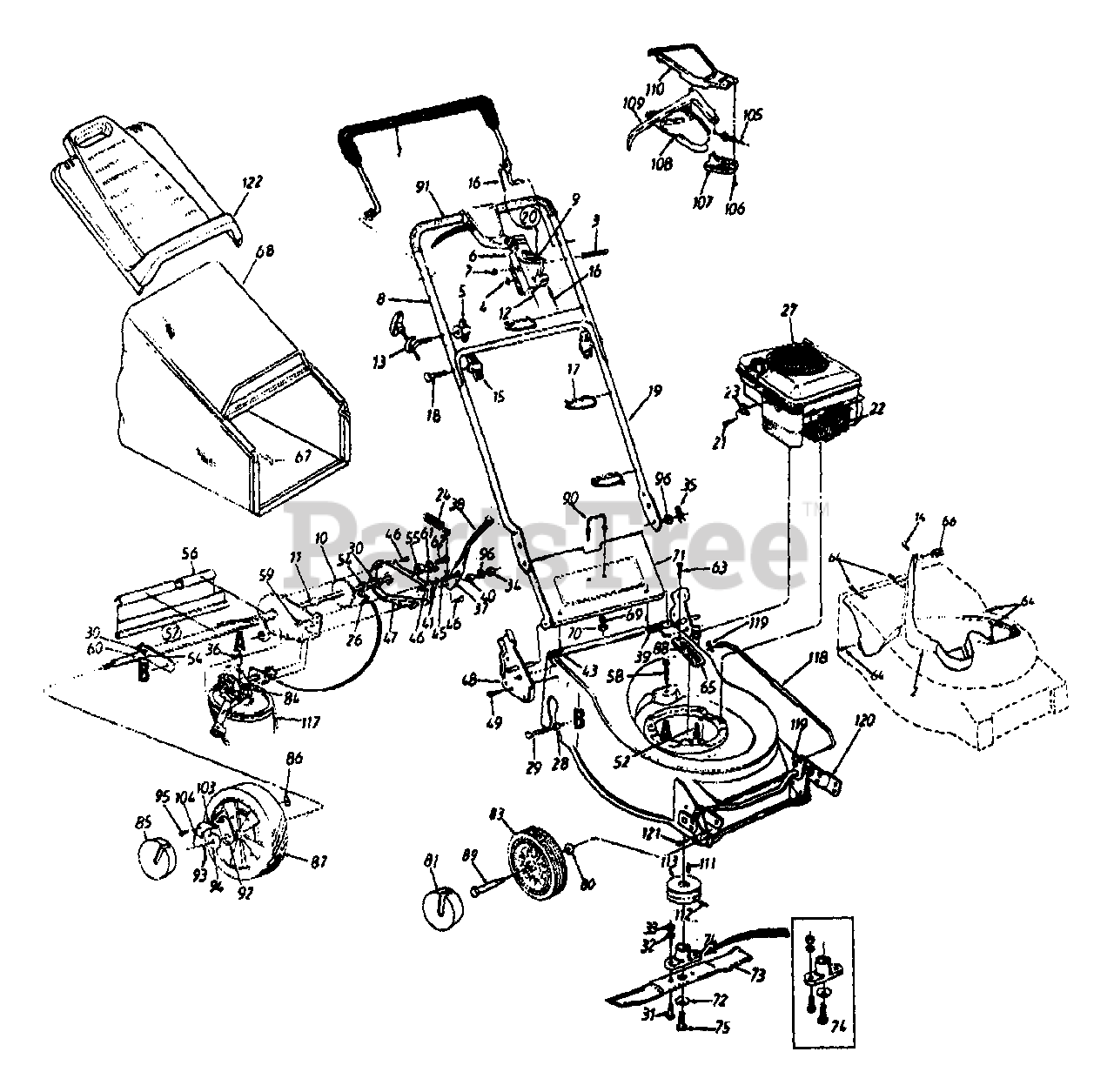

Main Assembly Parts Diagram

  • Title

1

White Outdoor 647-0004

Control Handle Ass'y
(Superseded to 747-0824B-0637)

$61.99

$

In Stock, only 1 left!

0

2

White Outdoor 731-1633

Rear Baffle

Note: Code: N notates a new part (not previously existing).

$

$

Not available

3

White Outdoor 710-0605

Oval C-Sunk Mach. Scr.

$4.49

$

In Stock, only 4 left!

0

4

White Outdoor 736-0501

Spr. Wash. .66" I.D.
(Superseded to 936-0501)

$6.49

$

Usually ships in 3-6 days

0

5

712-0279

Wing Nut 1/4-20 Thd.

$

$

Not available

6

White Outdoor 646-0875

Throttle Body
(Superseded to 946-0875)

$8.99

$

In Stock, Qty 14

0

7

White Outdoor 712-0324

Hex L-Nut 1/4-20 Thd.

$3.49

$

In Stock, Qty 20+

0

8

White Outdoor 749-0539B

Upper Handle
(Superseded to 749-0539C-0637)

Variations

White Outdoor 749-0539B-0637

UPPER HANDLE BLACK - POWDER BLACK (0637)

$49.99

$

Usually ships in 3-6 days

0

$49.99

$

Usually ships in 3-6 days

0

9

White Outdoor 746-0876

Throttle Lever
(Superseded to 946-0876)

$7.99

$

In Stock, Qty 10

0

10

White Outdoor 638-0002

Axle Ass'y. 19.12" Lg.

$

$

Not available

11

White Outdoor 741-0522

Hex Flange Brg. .506" I.D.

$7.99

$

In Stock, only 2 left!

0

12

White Outdoor 746-0841

Throttle Control Wire - 60"
(Superseded to 946-0674A)

$17.99

$

In Stock, Qty 5

0

13

White Outdoor 710-1205

Rope Guide

$3.99

$

In Stock, Qty 15

0

?14

White Outdoor 710-0351

Recess Hd. B-Tap Scr. #10-16 Thd.

$4.49

$

In Stock, only 4 left!

0

15

White Outdoor 720-0276

Hand Knob
(Superseded to 920-0276)

$3.49

$

In Stock, Qty 9

0

16

White Outdoor 746-0557

Control Cable - 47"
(Superseded to 946-0557)

$25.99

$

In Stock, Qty 8

0

17

White Outdoor 726-0240

Cable Tie
(Superseded to 725-0157)

$3.49

$

In Stock, only 4 left!

0

18

White Outdoor 710-1174

Curved Hd. Bolt 5/16-18 x 2" Lg.

$6.99

$

In Stock, Qty 20+

0

19

White Outdoor 749-0928

Lower Handle
(Superseded to 749-0928A)

Variations

White Outdoor 749-0928-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, Qty 10

0

$33.99

$

In Stock, Qty 10

0

20

White Outdoor 811-00185

Throttle Box Comp.
(Superseded to 811-0185)

Note: Incl. Ref 3, 4, 5, 6, 9

$34.99

$

In Stock, Qty 9

0

21

White Outdoor 710-1237

Hex Self-Tap Scr. #10-32 x .62" Lg.

$4.49

$

Usually ships in 3-6 days

0

22

White Outdoor 735-0639

Spark Plug Boot

$

$

Not available

23

White Outdoor 751B213146

Casing Clamp
(Superseded to BS-690798)

$5.49

$

In Stock, only 2 left!

0

24

White Outdoor 732-0740

Ext. Spring 4.28" Lg.

$

$

Not available

?25

White Outdoor 710-0252

Hex Bolt 1/4-20 x .85" Lg.
(Superseded to 710-3015)

$3.99

$

In Stock, Qty 20+

0

26

White Outdoor 713-0443

Chain - Endless #48 x 28 Links

$

$

Not available

27

Engine

$

$

Not available

28

White Outdoor 750-0736

Shld. Spacer .383" I.D.
(Superseded to 950-0736)

$5.49

$

Usually ships in 3-6 days

0

29

White Outdoor 710-1006

Hex L-Wash. TT-Tap Scr. 3/8-16 x .75" Lg.
(Superseded to 910-1006)

$

$

Not available

30

White Outdoor 741-0324

Hex Flange Brg. .506" I.D.
(Superseded to 741-0324A)

$7.49

$

In Stock, Qty 8

0

31

White Outdoor 710-1055

Hex Bolt 3/8-24 x 1" Lg.

$4.49

$

Usually ships in 3-6 days

0

32

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.49

$

In Stock, Qty 20+

0

33

White Outdoor 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

34

White Outdoor 712-0296

Hex Patch L-Nut 3/8-24 Thd.
(Superseded to 912-0296)

$2.99

$

In Stock, only 1 left!

0

35

White Outdoor 714-0104

Int. Cotter Pin 5/16" Dia.

$3.99

$

In Stock, Qty 20+

0

36

White Outdoor 750-0589

Spacer .325" I.D. x .88" Lg.
(Superseded to 950-0589)

$5.99

$

Usually ships in 3-6 days

0

37

White Outdoor 732-0580

Spring Lever

$7.99

$

In Stock, only 1 left!

0

38

White Outdoor 720-0223

Grip

$13.99

$

In Stock, Qty 10

0

39

White Outdoor 732-0677

Torsion Spring - L.H.
(Superseded to 932-0677)

$7.49

$

Usually ships in 3-6 days

0

40

White Outdoor 750-0624

Shld. Spacer .387" I.D. x .285" Lg.

$

$

Not available

41

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.49

$

In Stock, Qty 20+

0

?42

White Outdoor 712-0711

Hex Jam Nut 3/8-24 Thd.

$3.99

$

In Stock, Qty 20+

0

43

White Outdoor 732-0678

Torsion Spring - R.H.

$7.99

$

Usually ships in 3-6 days

0

?44

White Outdoor 682-3027A

Handle Brkt. Ass'y.- L.H.

$

$

Not available

45

White Outdoor 711-0805

Shld. Pin 3/8-24 x 1.43" Lg.

$

$

Not available

46

White Outdoor 710-0352

Hex Tap Scr. 1/4 x .38" Lg.

$4.49

$

Usually ships in 3-6 days

0

47

White Outdoor 682-7516

Cover Ass'y.

$

$

Not available

48

White Outdoor 682-3028A

Handle Brkt. Ass'y. - R.H.

$

$

Not available

49

White Outdoor 710-0892

Hex L-Wash. AB-Tap Scr. 1/4 x .62" Lg.
(Superseded to 910-0892)

$

$

Not available

52

White Outdoor 710-0654A

Hex L-Wash. Hd. Scr. 3/8-16 x 1" Lg.

$3.99

$

In Stock, only 4 left!

0

?53

White Outdoor 682-0034

18" Deck Ass'y.

Variations

White Outdoor 682-0034-0499

No Longer Available DECK ASSY-18IN RD - CUB BEIGE (0499)

$

$

Not available

White Outdoor 682-0034-0638

DECK ASSY-18IN RD - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 682-0034-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

54

White Outdoor 736-0160

Fl-Wash. .531" I.D. x .93"

$3.99

$

In Stock, only 2 left!

0

55

White Outdoor 750-0664

Spacer .5" I.D. x .88" O.D.

$6.49

$

Usually ships in 3-6 days

0

56

White Outdoor 731-1486

Rear Flap

$

$

Not available

57

White Outdoor 682-7517

Rear Axle Ass'y. Comp.

$

$

Not available

58

White Outdoor 710-0778

Hex Wash. Hd. Scr. 1/4-20 x 1.5" Lg.

$3.99

$

In Stock, Qty 16

0

59

White Outdoor 712-0711

Hex Jam Nut 3/8-24 Thd.

$3.99

$

In Stock, Qty 20+

0

60

White Outdoor 750-0289

Spacer .510" I.D. x .875"

$

$

Not available

61

White Outdoor 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 13

0

62

White Outdoor 710-0751

Hex Bolt 1/4-20 x .62" Lg. (Gr. 5)

$3.99

$

In Stock, Qty 20+

0

63

White Outdoor 710-1017

Torx Mach. Scr. 1/4 x .62" Lg.

$7.99

$

In Stock, Qty 20+

0

64

White Outdoor 710-0969

Truss Mach. Scr. #12 x 1" Lg.

$4.49

$

In Stock, only 3 left!

0

65

White Outdoor 17323

Height Adj. Plate

$

$

Not available

66

White Outdoor 712-0400

"U"-Nut #10-16 Thd.
(Superseded to 912-0400)

$5.99

$

Usually ships in 3-6 days

0

67

White Outdoor 747-0913

Grass Bag Frame
(Superseded to 747-0913-0637)

Variations

White Outdoor 747-0913-0637

FRAME-GRASS BAG - POWDER BLACK (0637)

$

$

Not available

$

$

68

764-0458

Grass Bag

$

$

Not available

69

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

70

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

71

White Outdoor 782-7568

Chute Door

Variations

White Outdoor 782-7568-0637

No Longer Available CHUTE DOOR - POWDER BLACK (0637)

$

$

Not available

$

$

72

White Outdoor 736-0452

Bell-Wash. .39" I.D.

$4.49

$

In Stock, Qty 16

0

73

White Outdoor 742-0618

18" Blade

$

$

Not available

74

White Outdoor 753-0484

Blade Adapter Kit

$21.99

$

In Stock, only 1 left!

0

75

White Outdoor 710-1044

Hex Bolt 3/8-24 x 1.5" Lg.

$3.99

$

In Stock, Qty 20+

0

80

White Outdoor 736-0105

Bell-Wash. .38" I.D. x .88" O.D.

$3.99

$

In Stock, Qty 20+

0

81

White Outdoor 720-0251

Hub Cap

$

$

Not available

83

White Outdoor 734-1797

Wheel Ass'y. Comp.

$

$

Not available

84

White Outdoor 618-0134

Transaxle Ass'y.

Note: See Breakdown

$

$

Not available

85

White Outdoor 720-0282

Rear Hub Cap

$

$

Not available

86

White Outdoor 712-0414

Weld Top L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 20+

0

87

White Outdoor 634-0020

Wheel Ass'y. Comp.

$37.99

$

In Stock, Qty 15

0

88

White Outdoor 721-0216

Height Adj. Seal

$

$

Not available

89

White Outdoor 738-0102

Axle Bolt

$9.49

$

In Stock, Qty 11

0

90

White Outdoor 747-0623

Chute Door Handle

$

$

Not available

91

White Outdoor 720-0225

Foam Grip
(Superseded to 720-0294A)

Note: Optional

$6.99

$

In Stock, Qty 6

0

92

White Outdoor 16855

Pawl Plate

$5.99

$

In Stock, Qty 20+

0

93

White Outdoor 714-0115

Cotter Pin

$3.99

$

In Stock, only 1 left!

0

94

White Outdoor 748-0318

Ratchet Wheel
(Superseded to 948-0318)

$9.99

$

In Stock, Qty 8

0

95

White Outdoor 738-0137

Shld. Bolt .342" Dia. x .268"

$

$

Not available

96

White Outdoor 736-0105

Bell-Wash. .38" I.D.

$3.99

$

In Stock, Qty 20+

0

103

White Outdoor 748-0188B

Pawl
(Superseded to 948-0188B)

$10.99

$

In Stock, Qty 18

0

?104

White Outdoor 10622B

Plastic Spring

$4.49

$

In Stock, Qty 20+

0

105

White Outdoor 746-0713

S.P. Cable 52.5" Lg.
(Superseded to 946-0713A)

$29.99

$

In Stock, only 3 left!

0

106

White Outdoor 710-0841

Flat C-Sunk Hd. Tap Scr. #10 x .75" Lg.

$3.99

$

Usually ships in 3-6 days

0

107

White Outdoor 731-1059

Cable Mtg. Cap
(Superseded to 753-0833)

$47.99

$

In Stock, only 4 left!

0

108

White Outdoor 731-1058

Control Cover Half - Lower
(Superseded to 753-0833)

$47.99

$

In Stock, only 4 left!

0

109

White Outdoor 731-0620

Control Lever
(Superseded to 731-0620A)

$14.99

$

In Stock, only 3 left!

0

110

White Outdoor 731-1057

Control Cover Half - Upper
(Superseded to 753-0833)

$47.99

$

In Stock, only 4 left!

0

111

White Outdoor 714-0122

Sq. Key 3/16" x 3/4" Lg.

$3.49

$

In Stock, Qty 17

0

112

710-0497

Set Scr. #10-32 x .25" Lg.

$

$

Not available

113

White Outdoor 756-0554

Pulley

$

$

Not available

117

White Outdoor 754-0327

"V"-Belt
(Superseded to 954-0327)

$

$

Not available

118

White Outdoor 747-0914

Single Lever Adj. Rod
(Superseded to 747-0914-0637)

Variations

White Outdoor 747-0914-0637

ROD-ADJ 18" SGL LE - POWDER BLACK (0637)

$

$

Not available

$

$

119

White Outdoor 714-0507

Cotter Pin 3/32" Dia.

$4.49

$

In Stock, only 4 left!

0

120

White Outdoor 638-0001

Front Axle Ass'y.

$

$

Not available

121

White Outdoor 710-0352

Hex B-Tap Scr. 1/4" x .38" Lg.

$4.49

$

Usually ships in 3-6 days

0

122

White Outdoor 731-1514

Hardtop Cover

$

$

Not available
