LCP-2147-1 - Toro Regal IV Walk-Behind Mower (1968) PARTS LIST FOR LCP-2147-1 Parts Diagram

Regal IV Walk-Behind Mower

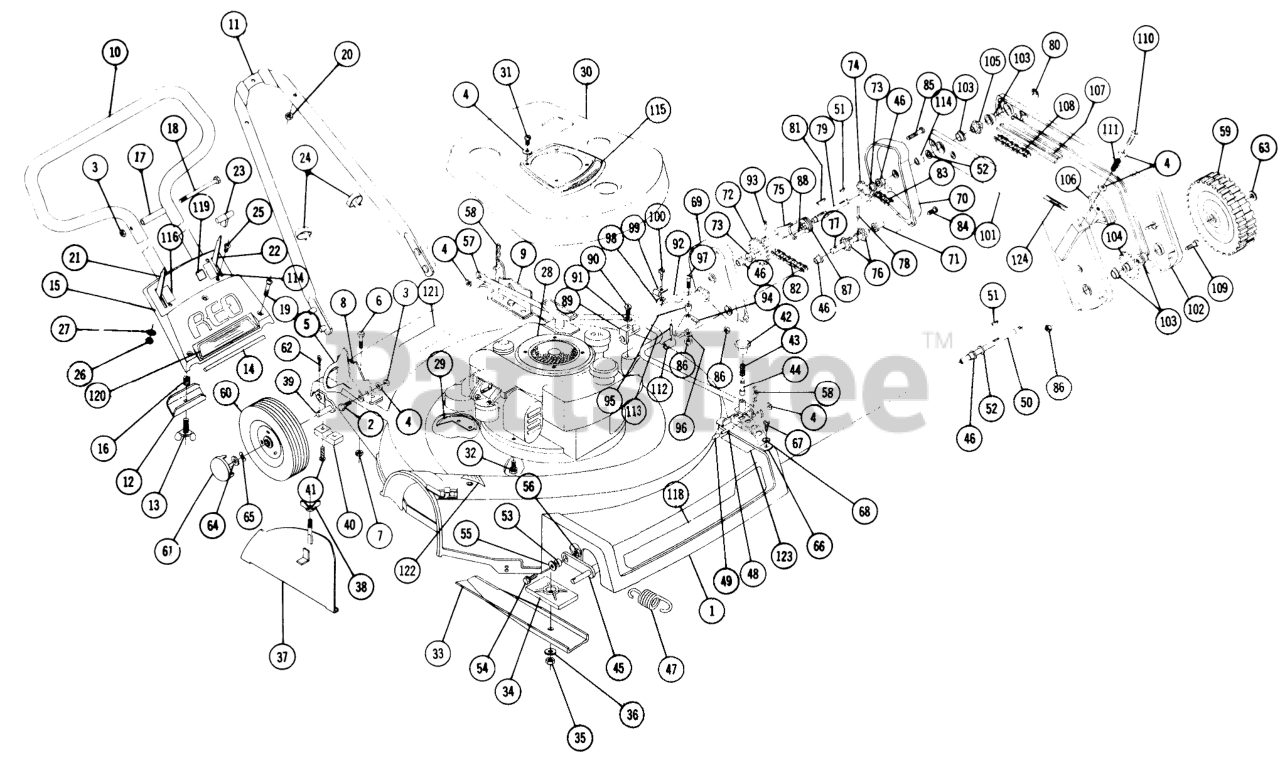

PARTS LIST FOR LCP-2147-1 Parts Diagram

  • Title

1

Toro 7134

Ass-y Deck

$

$

Currently unavailable

2

Toro 908002-4

Bolt-1/4-20 x 5/8

$

$

Currently unavailable

3

Toro 915111-6

Nut-Nylok

$

$

Currently unavailable

4

Toro 920007-4

Washer

$

$

Currently unavailable

5

Toro 7090

Latch-Handle Mounting

$

$

Currently unavailable

6

Toro 908017-4

Bolt 5/16-18 x

$

$

Currently unavailable

7

Toro 915112-6

Nut-Nylok

$

$

Currently unavailable

8

Toro 7088

Bracket Handle R.H.

$

$

Currently unavailable

9

Toro 7089

Bracket Handle L.H.

$

$

Currently unavailable

10

Toro 7141

Handle-Upper

$

$

Currently unavailable

11

Toro 7142

Handle-Lower

$

$

Currently unavailable

12

Toro 7143

Channel-Clamp

$

$

Currently unavailable

13

Toro 7144

Thumb Screw

$

$

Currently unavailable

14

Toro 7145

Pin-Handle Pivot

$

$

Currently unavailable

15

Toro 7146

Panel-Handle

$

$

Currently unavailable

16

Toro 3624

SPRING-COMPRESSION

$4.99

$

In Stock, only 2 left!

0

17

Toro 7102

20210 '60&UP 21 SP

$

$

Not available

18

Toro 908148-4

Bolt Hex 1/4-20 x 4 1/2

$

$

Currently unavailable

19

Toro 7132

Screw Oval Head 1/4-20 x 1 1/2

$

$

Currently unavailable

20

Toro 960008-4

Nut Hex 5/4-20 Nylok

$

$

Currently unavailable

21

Toro 7097

Ass-y Throttle Control

$

$

Currently unavailable

22

Toro 7921

Ass-y. Shift Control

$

$

Not available

23

Toro 6161

Knob

$

$

Currently unavailable

24

Toro 7098

Clip-Control

$

$

Currently unavailable

25

Toro 910775-4

Screw #2 Phillips #8-32 x 3/8

$

$

Currently unavailable

26

Toro 915537-4

Nut Hex #8-32

$

$

Currently unavailable

27

Toro 920078-4

Lockwasher

$

$

Currently unavailable

28

Toro 7151

Engine

$

$

Currently unavailable

29

Toro 7851

Deflector-Muffler

$

$

Not available

30

Toro 7114

Shroud-Engine

$

$

Currently unavailable

31

Toro 911563-4

Screw 1/4-28 x 3/8

$

$

Currently unavailable

32

Toro 910501-4

Screw Hex 5/16-18 x 1

$

$

Currently unavailable

33

Toro 6744

Blade

$

$

Not available

34

Toro 6650

Drive Blade

$

$

Currently unavailable

35

Toro 915639-4

Nut Hex 5/8-18 Thin

$

$

Currently unavailable

36

Toro 920013-4

Washer, 5/8

$

$

Currently unavailable

37

Toro 6228

Ass-y Leaf Mulcher

$

$

Currently unavailable

38

Toro 915584-4

Nut Wing 1/4-20

$

$

Currently unavailable

39

Toro 6295

Ass-y Axle-Rear

$

$

Currently unavailable

40

Toro 6301

Cap-Rear Axle Support

$

$

Currently unavailable

41

Toro MW-4205

Screw Hex 1/4-20 x 7/8 Self Tap

$

$

Currently unavailable

42

Toro 6635

KNOB

$

$

Not available

43

Toro 6634

Spring

$

$

Not available

44

Toro 6633

PLUNGER

$

$

Not available

45

Toro 7155

Ass-y Height Adjustment Lever

$

$

Currently unavailable

46

Toro 6230

BRONZE BUSHING

$

$

Not available

47

Toro 6291

Spring
(Superseded to 8594)

$

$

Not available

48

Toro 933160

ROLL PIN 1/8 X 1 1/2

$

$

Not available

49

Toro 6294

Cap

$

$

Currently unavailable

50

Toro 6283

Axle-Front

$

$

Not available

51

Toro 937007

WOODRUFF KEY

$

$

Not available

52

Toro MW-4327

Washer-Thrust

$

$

Currently unavailable

53

Toro 2091

Spacer

$

$

Not available

54

Toro 908020-4

Bolt 5/16-18 x 11/4

$

$

Currently unavailable

55

Toro 920038-4

Washer

$

$

Currently unavailable

56

Toro 915662-4

Nut 5/16-18

$

$

Currently unavailable

57

Toro 7157

Rod-Wheel Adjustment Link

$

$

Currently unavailable

58

Toro 933504-4

Hairpin

$

$

Currently unavailable

59

Toro 7158

Wheel & Tire Assembly

$

$

Not available

60

Toro 7159

Wheel & Tire Assembly

$

$

Not available

61

Toro 6312

Cap-Hub

$

$

Currently unavailable

62

Toro 932008-4

Hairpin

$

$

Currently unavailable

63

Toro 920011-4

Washer

$

$

Currently unavailable

64

Toro 920009-4

Washer

$

$

Currently unavailable

65

Toro MW-4405

Washer

$

$

Currently unavailable

66

Toro 7160

Quadrant-Height Adjustor

$

$

Currently unavailable

67

Toro 926466-4

Screw

$

$

Currently unavailable

68

Toro 920120-4

Lockwasher #10 External

$

$

Currently unavailable

69

Toro 16214

Case-Transmission R.H.

$

$

Currently unavailable

70

Toro 6215

Case-Trans. L.H.

$

$

Not available

71

Toro 6229

BUSHING

$10.99

$

In Stock, only 3 left!

0

72

Toro 7900

Sprocket-19 Tooth

$

$

Currently unavailable

73

Toro 7901

Bearing

$

$

Currently unavailable

74

Toro 7903

Sprocket 12 Tooth

$

$

Not available

75

Toro 6238

Ass-y Yoke & Shaft

$

$

Not available

76

Toro 7863

Sprocket 8 Tooth

$

$

Not available

77

Toro 7862

Shaft

$

$

Not available

78

Toro 933171

Spirol Pin
(Superseded to 32121-94)

$

$

Not available

79

Toro 7140

Shaft Output

$

$

Not available

80

Toro 5701

E Ring
(Superseded to 32120-47)

$1.49

$

In Stock, Qty 15

0

81

Toro 937158

HI PRO KEY

$

$

Not available

82

Toro 6246

Chain-Roller

$

$

Currently unavailable

83

Toro 6247

Chain-Roller

$

$

Currently unavailable

84

Toro 909138-4

Bolt #10-32

$

$

Currently unavailable

85

Toro 909149-4

Bolt #10-32 x 234 Round Head

$

$

Currently unavailable

86

Toro 5924

HEX NUT 10-32 E.S.

$

$

Not available

87

Toro 7905

Collar-Shift

$

$

Not available

88

Toro 7841

Spiral Pin
(Superseded to 93-3190)

$6.99

$

Usually ships in 3-6 days

0

89

Toro 7162

Block-Transmission Block

$

$

Currently unavailable

90

Toro 926491-4

Screw Hex 1/4-20 x 1 1/8 Type "F"

$

$

Currently unavailable

91

Toro 920122-4

Lockwasher

$

$

Currently unavailable

92

Toro 7163

Bracket Lever-Shift

$

$

Not available

93

Toro 7133

Pin-Groove 7/64 x 1/2

$

$

Not available

94

Toro 7164

Lever-Shift

$

$

Currently unavailable

95

Toro 7165

Spacer Pivot

$

$

Currently unavailable

96

Toro 920005-4

Washer-#10 SAE

$

$

Currently unavailable

97

Toro 909140-4

Screw Round Head # 10-32 x 7/8

$

$

Currently unavailable

98

Toro 7058

Nut-Tinnerman

$

$

Currently unavailable

99

Toro 7922

CLIP-CABLE

$3.49

$

Usually ships in 3-6 days

0

100

Toro 926234-4

Screw #10 x 1/2 Type A

$

$

Currently unavailable

101

Toro 6252

Housing-Drive R.H.

$

$

Not available

102

Toro 6253

Housing-Drive L.H.

$

$

Not available

103

Toro 6254

BUSHING

$18.99

$

Usually ships in 3-6 days

0

104

Toro 6255

Ass-y.-Sprocket & Hub
(Superseded to 100279)

$

$

Not available

105

Toro 7866

Sprocket 8 Tooth

$

$

Currently unavailable

106

Toro 6261

Guide-Upper

$

$

Currently unavailable

107

Toro 6262

Guide-Lower

$

$

Not available

108

Toro 6263

Chain-Roller

$

$

Not available

109

Toro 6318

Screw-Machine #10-32 x 1 1/4

$

$

Currently unavailable

110

Toro 910068-4

Nut Hex #10-32 Elastic Stop

$

$

Currently unavailable

111

Toro 6390

Spring

$

$

Not available

112

Toro 7108

Coupling

$

$

Currently unavailable

113

Toro 933197

Roll Pin

$

$

Not available

114

Toro 7131

Spacer

$

$

Not available

115

Toro 7110

Decal

$

$

Currently unavailable

116

Toro 7170

Decal-Control Panel

$

$

Currently unavailable

117

Toro 7171

Decal-Control Panel

$

$

Not available

118

Toro 7172

MANUAL

$3.23

$

Usually ships in 3-6 days

0

119

Toro 7125

Decal-Lever Instructions

$

$

Currently unavailable

120

Toro 7173

Decal-Regal IV

$

$

Currently unavailable

121

Toro 6332

4XC6485 GIS ROTARY

$3.23

$

Usually ships in 3-6 days

0

122

Toro 6181

Decal-Caution
(Superseded to 704093)

$

$

Not available

123

Toro 6313

Decal-Height Indicator

$

$

Currently unavailable

124

Toro 6314

Decal-Chain Adjustment

$

$

Currently unavailable
