LCT18BV483 - Exmark 48" Lazer Z CT Zero-Turn Mower, 18hp Briggs & Stratton (SN: 720000 - 789999) (2008) Mainframe Group (cont.) Parts Diagram

48" Lazer Z CT Zero-Turn Mower, 18hp Briggs & Stratton

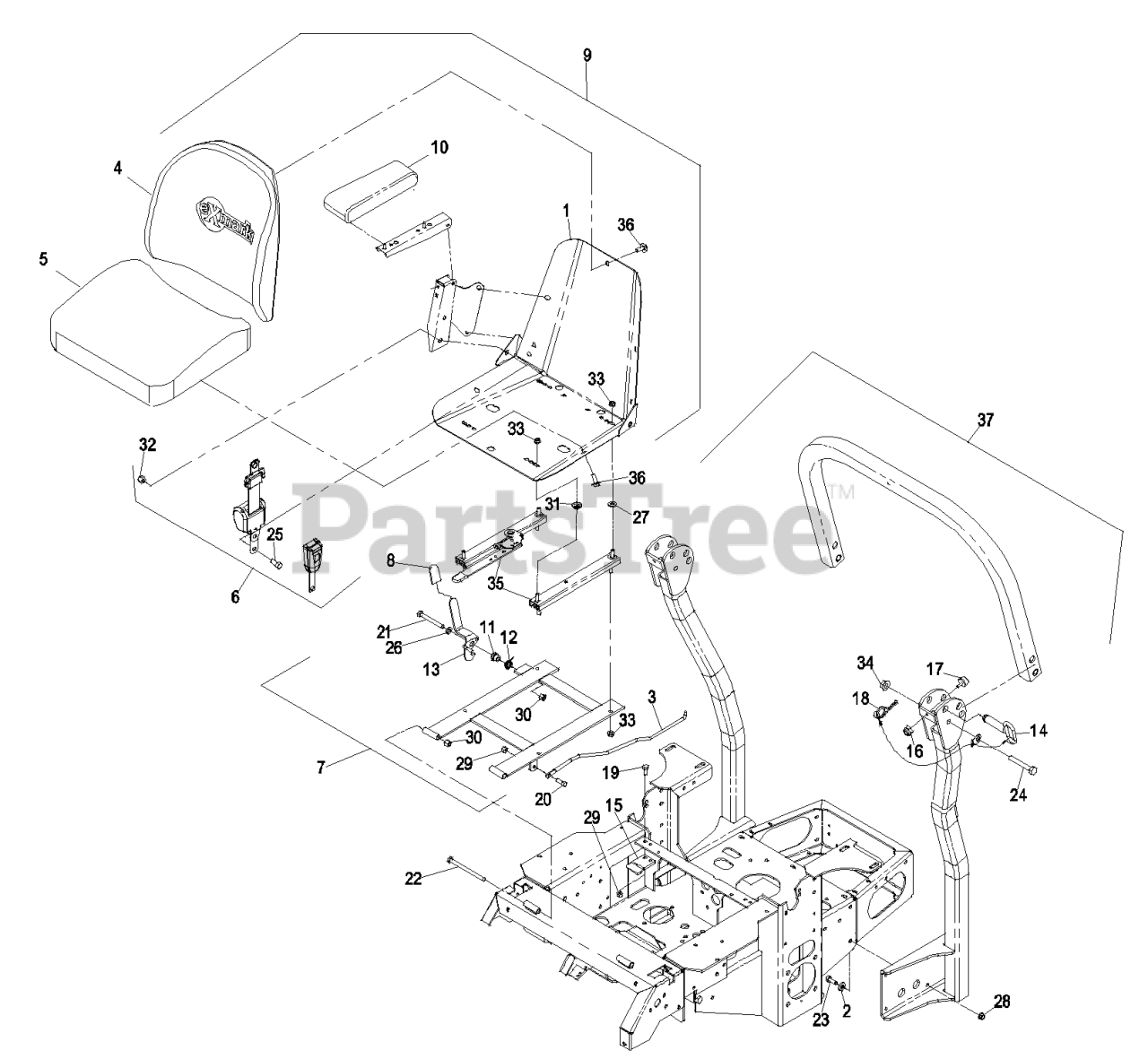

Mainframe Group (cont.) Parts Diagram

  • Title

1

Exmark 1-633859

FRAME-SEAT

$203.99

$

In Stock, only 2 left!

0

2

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

3

Exmark 103-1731

ROD-RETAINER, SEAT

$21.99

$

In Stock, only 1 left!

0

4

Exmark 103-3520

CUSHION,SEAT BACK

$249.99

$

Usually ships in 3-6 days

0

5

Exmark 103-3521

CUSHION,SEAT BOTTOM

$275.99

$

In Stock, Qty 5

0

6

Exmark 110-0883

RETRACTABLE SEATBELT KIT

$290.99

$

Usually ships in 3-6 days

0

7

Exmark 103-4423

ASM,SEAT FRAME

$231.99

$

Usually ships in 3-6 days

0

8

Exmark 103-4434

GRIP-LEVER

$2.99

$

In Stock, Qty 5

0

9

Exmark 103-3524

KIT,SEAT W/ARMREST ADJ.

Note: Includes armrests and seat back decal. Does not include seat belt or tracks.

$727.99

$

Usually ships in 3-6 days

0

10

Exmark 103-0292

CUSHION,ARMREST RH

Note: (RH)

$104.99

$

In Stock, only 2 left!

0

Exmark 103-0291

CUSHION,ARMREST LH

Note: (LH)

$104.99

$

In Stock, only 2 left!

0

11

Exmark 107-0075

BUSHING-LATCH, SEAT

$5.49

$

Usually ships in 3-6 days

0

12

Exmark 107-0076

SPRING-TORSION

$14.99

$

Usually ships in 3-6 days

0

13

Exmark 107-3083

LATCH ASM

$31.99

$

Usually ships in 3-6 days

0

14

Exmark 103-4553

PIN-FOLD, ROPS

Note: Includes ROPS fold pin plus hairpin item #18.

$79.99

$

Usually ships in 3-6 days

0

15

Exmark 103-5961

CATCH-LATCH, SEAT

$

$

Not available

16

Exmark 3296-73

NUT-LOCK, NI

Note: (black)

$5.49

$

In Stock, Qty 20+

0

17

Exmark 109-2365

BUMPER-RUBBER

$5.49

$

In Stock, Qty 13

0

18

Exmark 107-3155

HAIRPIN

$6.99

$

Usually ships in 3-6 days

0

19

Exmark 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

20

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

21

Exmark 323-20

SCREW-HH

$3.99

$

In Stock, Qty 11

0

22

Exmark 323-39

SCREW-HH

$12.99

$

In Stock, Qty 20+

0

23

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

24

Exmark 325-13

SCREW-HH

$0.99

$

In Stock, Qty 17

0

25

Exmark 3212-4

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

26

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

27

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

28

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

29

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

30

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

31

Exmark 1-543401

SPACER-TRACK

$5.49

$

In Stock, Qty 8

0

32

Exmark 3296-7

NUT-LOCK

$4.49

$

Usually ships in 3-6 days

0

33

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

34

Exmark 32128-23

NUT-HF

$2.49

$

In Stock, Qty 20+

0

35

Exmark 1-643255

TRACK-SEAT

Note: (4" Adjustable)

$230.99

$

In Stock, only 2 left!

0

Exmark 103-8386

116-1685
(Superseded to 116-1685)

$39.99

$

In Stock, only 1 left!

0

36

Exmark 103-8383

BOLT-SEAT

$2.99

$

Usually ships in 3-6 days

0

37

Frpsl Kit, Rops Lhp

Note: Rollover protection frame is serviced as a complete assembly only. Includes complete ROPS frame, mounting hardware, fold pivot and locking hardware, seat frame assembly item #7, catch item #15, and seat belt assembly item #6.

$

$

Not available
