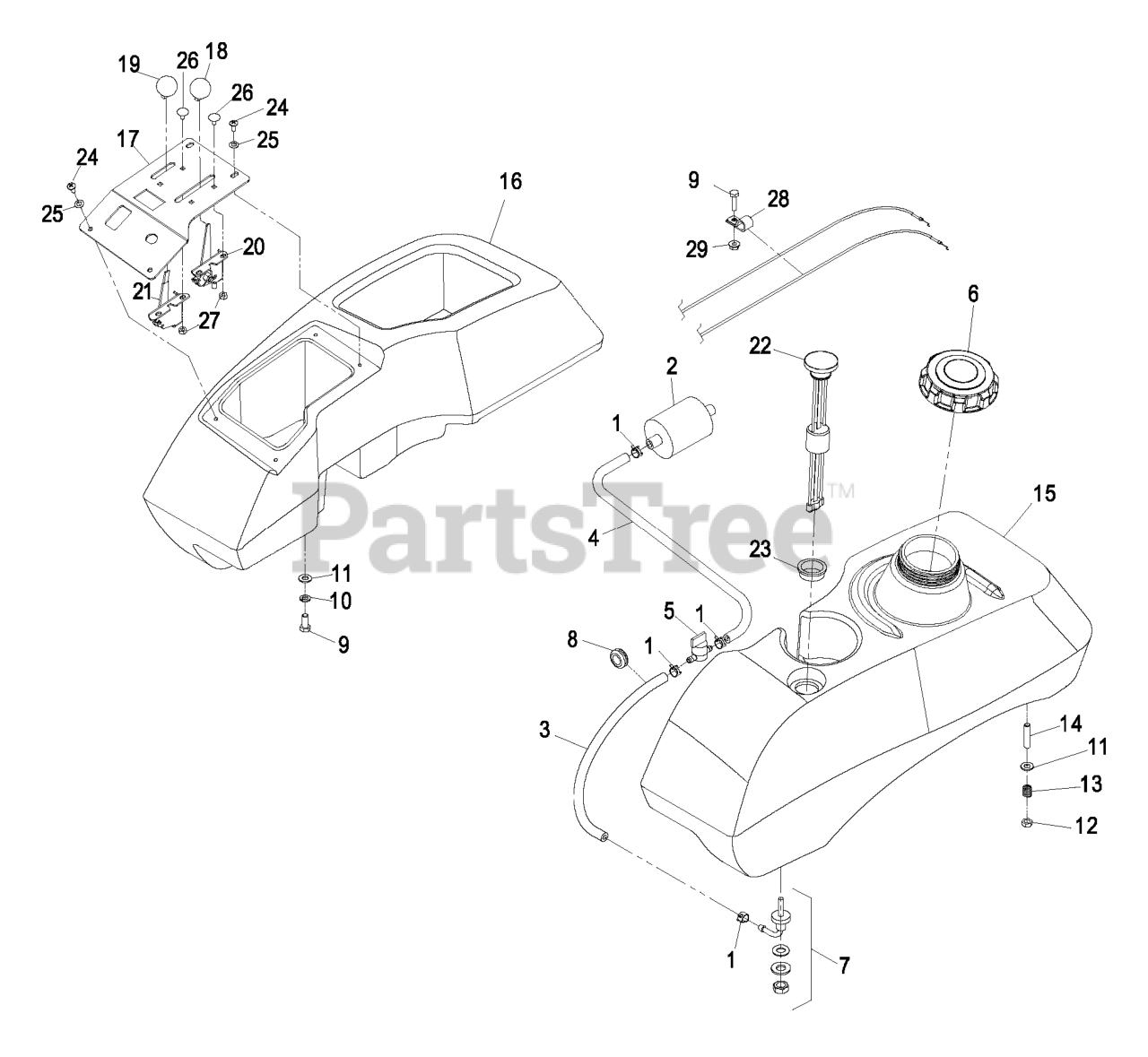

LCT21BV523 - Exmark 52" Lazer Z CT Zero-Turn Mower, 21hp Briggs & Stratton (SN: 600000 - 669999) (2006) Fuel Group Parts Diagram

52" Lazer Z CT Zero-Turn Mower, 21hp Briggs & Stratton

Fuel Group Parts Diagram

  • Title

1

Exmark 1-303077

CLAMP

$1.49

$

In Stock, Qty 20+

0

2

Exmark 493629

Fuel Filter "Briggs & Stratton"

Note: Refer to Engine Owner's manual. (Fuel filter Must be 15 Micron or smaller).

$

$

Currently unavailable

3

Exmark 109-0298

HOSE-FUEL

$15.99

$

Usually ships in 3-6 days

0

4

Exmark 109-0306

HOSE-FUEL

$5.49

$

Usually ships in 3-6 days

0

5

Exmark 1-603770

VALVE-FUEL

$7.99

$

In Stock, Qty 18

0

6

Exmark 109-0346

CAP-FUEL, GAS

$21.99

$

In Stock, Qty 16

0

7

Exmark 103-2605

FITTING-FUEL, BULKHEAD

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on fuel fitting.

$35.99

$

In Stock, Qty 13

0

Exmark 103-2784

O-RING,BULKHEAD FITTING

$13.99

$

In Stock, only 3 left!

0

8

Exmark 1-543296

GROMMET

$8.49

$

In Stock, Qty 7

0

9

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

10

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

11

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

12

Exmark 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

13

Exmark 1-633349

SPRING-TANK, FUEL

$5.49

$

In Stock, Qty 10

0

14

Exmark 1-633023

STUD

Note: Use Pro-Lock, Retaining Type (P/N 1-840023, .5ml tube) on stud threads going into tank.

$6.49

$

In Stock, only 3 left!

0

15

Exmark 103-5995

KIT,FUEL TANK LH LCT

Note: Includes tank, studs, cap, fitting and fuel gauge.

$

$

Not available

16

Exmark 109-0711

ASM, TANK RH LCT S.O.

Note: Includes tank, studs, control panel and decal.

$711.99

$

Usually ships in 3-6 days

0

17

Exmark 109-0687

DISCONTINUED-SEE NOTES FO

$

$

Not available

18

Exmark 1-513592

KNOB-BALL

$6.49

$

In Stock, Qty 20+

0

19

Exmark 1-513593

KNOB-BALL, BLACK

$5.49

$

In Stock, Qty 15

0

20

Exmark 103-3086

CONTROL-THROTTLE

$55.99

$

Usually ships in 3-6 days

0

21

Exmark 103-4091

CABLE-THROTTLE

$55.99

$

In Stock, Qty 15

0

22

Exmark 103-5797

103-6564
(Superseded to 103-6564)

$65.99

$

In Stock, Qty 9

0

23

Exmark 95-8972

CONTACT ORDER SERVICES

$11.99

$

In Stock, only 2 left!

0

24

Exmark 109-2661

SCREW-PPH

Note: Snug fit only on slotted holes, Do Not Over tighten, tank must be able to expand.

$1.49

$

In Stock, Qty 19

0

25

Exmark 1-303435

WASHER-SPRING

$1.49

$

In Stock, Qty 20+

0

26

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 18

0

27

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

28

Exmark 1-633396

CLIP-LOOM

$5.49

$

Usually ships in 3-6 days

0

29

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0
