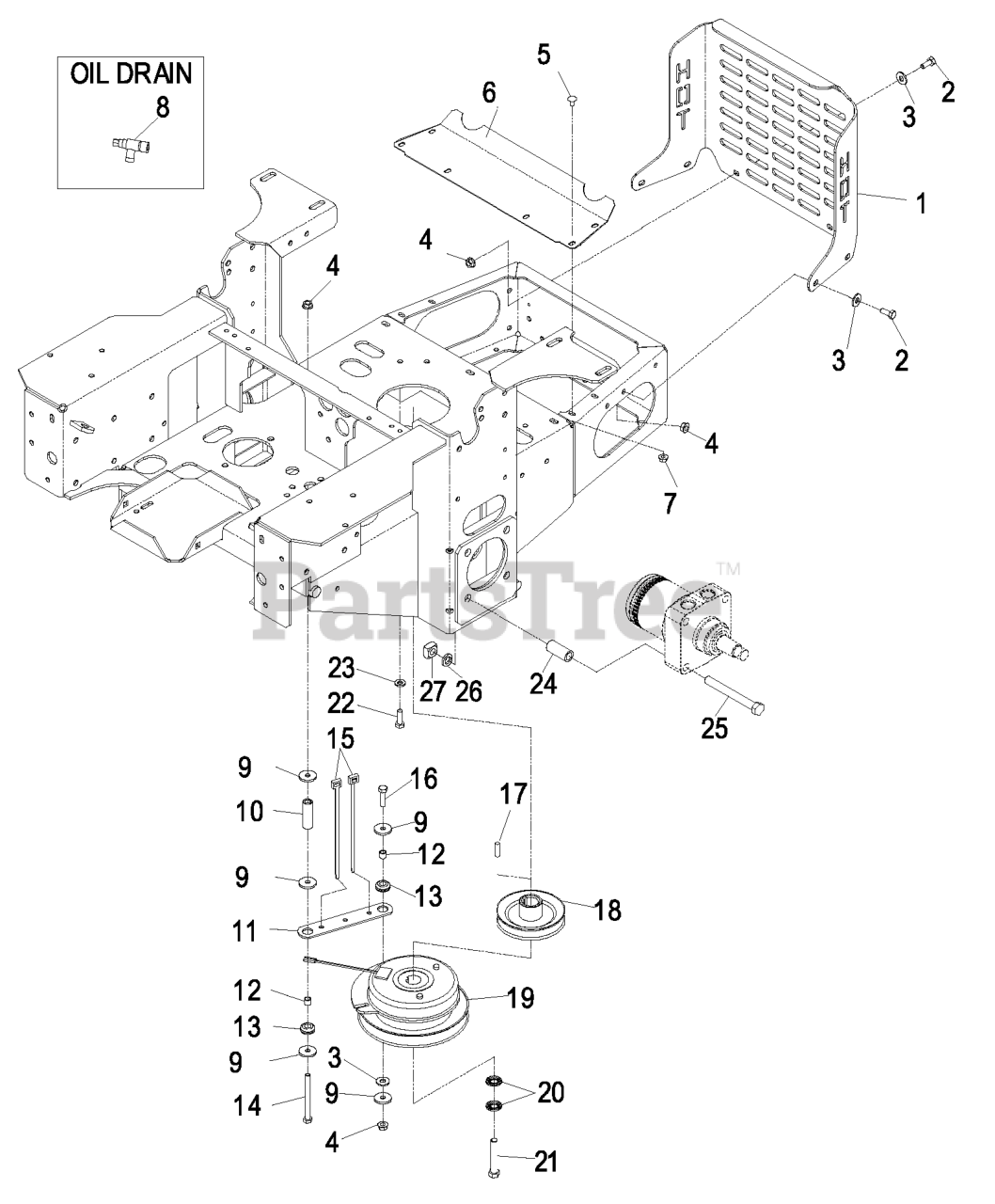

LCT4418KC - Exmark 44" Lazer Z CT Zero-Turn Mower, 18hp Kohler (SN: 370000 - 439999) (2003) Engine Group Parts Diagram

44" Lazer Z CT Zero-Turn Mower, 18hp Kohler

Engine Group Parts Diagram

  • Title

1

Exmark 103-4048-03

BUMPER-REAR

$

$

Not available

2

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

3

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

5

Exmark 3229-10

SCREW-CARR

$1.49

$

In Stock, Qty 5

0

6

Exmark 103-2740-03

DEFLECTOR-SHORT

$27.99

$

Usually ships in 3-6 days

0

7

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

8

Exmark 103-1965

VALVE-DRAIN, OIL

Note: Use a Teflon Pipe Sealant or equivalent on threads of drain valve.

$55.99

$

In Stock, only 1 left!

0

9

Exmark 1-613235

WASHER

$1.99

$

In Stock, Qty 20+

0

10

Exmark 103-2614

SPACER

$

$

Not available

11

Exmark 1-633543-03

STRAP-CLUTCH, BRAKE

$14.99

$

In Stock, only 4 left!

0

12

Exmark 1-633545

SPACER

$2.99

$

In Stock, Qty 20+

0

13

Exmark 1-633630

GROMMET

$5.49

$

In Stock, Qty 20+

0

14

Exmark 322-22

SCREW-HH

$4.49

$

In Stock, Qty 12

0

15

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 14

0

16

Exmark 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

17

Exmark 1-807259

KEY

$2.99

$

In Stock, Qty 14

0

18

Exmark 1-653035

PULLEY

$71.99

$

In Stock, only 2 left!

0

19

Exmark 104-3624

109-7035
(Superseded to 109-7035)

$485.99

$

Usually ships in 3-6 days

0

20

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

21

Exmark 3212-10

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on clutch bolt.

$6.49

$

In Stock, only 4 left!

0

22

Exmark 33114-025

SCREW-HH

$1.99

$

In Stock, Qty 20+

0

23

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, Qty 7

0

24

Exmark 103-4042

SPACER-MOTOR, WHEEL

$

$

Not available

25

Exmark 325-18

SCREW-HH

$3.49

$

Usually ships in 3-6 days

0

26

Exmark 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

27

Exmark 103-0131

109-5618
(Superseded to 109-5618)

$2.99

$

In Stock, Qty 20+

0
