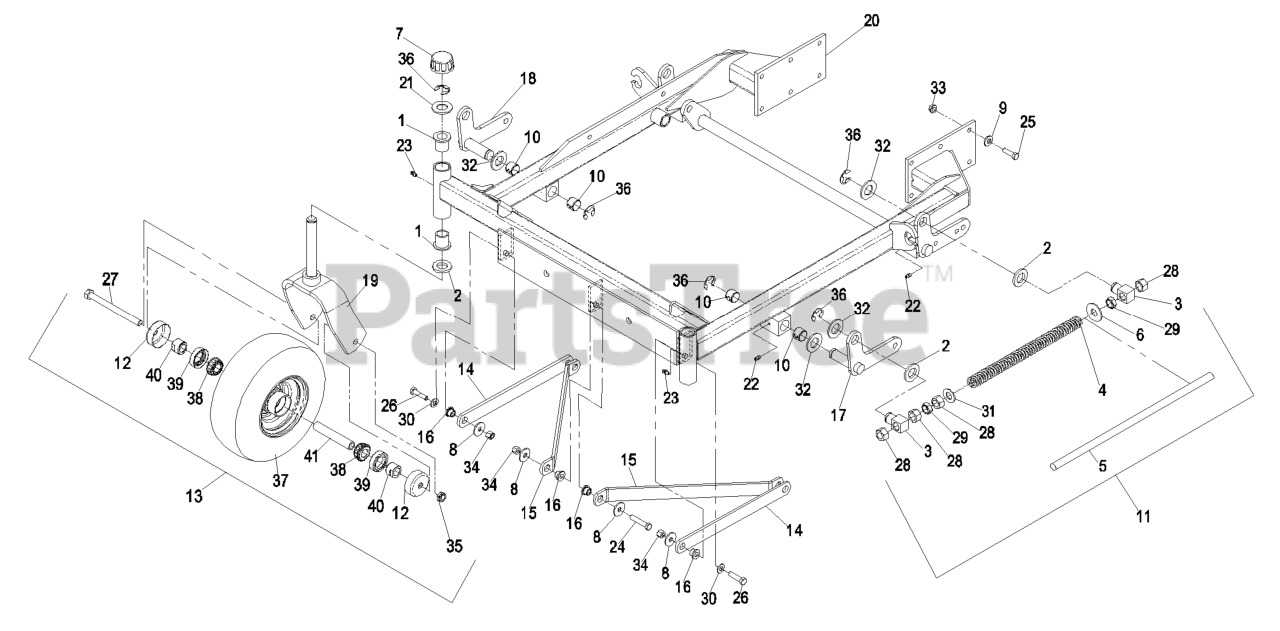

LCT4418KC - Exmark 44" Lazer Z CT Zero-Turn Mower, 18hp Kohler (SN: 440000 - 509999) (2004) Front Frame Group Parts Diagram

44" Lazer Z CT Zero-Turn Mower, 18hp Kohler

Front Frame Group Parts Diagram

  • Title

1

Exmark 1-303514

BEARING-FLANGED

$13.99

$

In Stock, Qty 20+

0

2

Exmark 1-513338

WASHER-FLAT

$4.49

$

In Stock, Qty 20+

0

3

Exmark 1-633441

SWIVEL-DECK MOUNT, REAR

$28.99

$

Usually ships in 3-6 days

0

4

Exmark 1-653009

SPRING-COMPRESSION

$19.99

$

Usually ships in 3-6 days

0

5

Exmark 1-653011

ROD-LIFT, DECK

$

$

Not available

6

Exmark 1-805517

WASHER

$

$

Not available

7

Exmark 61-9780

CAP-HUB

$8.49

$

In Stock, Qty 20+

0

8

Exmark 63-8410

WASHER

$2.49

$

In Stock, Qty 10

0

9

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

10

Exmark 103-1982

BUSHING,SPRING

$

$

Not available

11

Exmark 103-1987

FRONT SPRING ASM

$88.99

$

In Stock, only 1 left!

0

12

Exmark 103-2768

GUARD-SEAL

$3.99

$

In Stock, Qty 20+

0

13

Exmark 103-3800

WHEEL AND TIRE ASM

$247.99

$

In Stock, only 3 left!

0

14

Exmark 103-3898-01

103-3898
(Superseded to 103-3898)

$27.99

$

In Stock, only 4 left!

0

15

Exmark 103-3899-01

103-3899
(Superseded to 103-3899)

$31.99

$

Usually ships in 3-6 days

0

16

Exmark 103-3900

SPACER-STRUT

$8.99

$

In Stock, Qty 8

0

17

Exmark 103-3902-01

WLD,SHAFT LH

$

$

Not available

18

Exmark 103-3903-01

WLD,SHAFT RH

$

$

Not available

19

Exmark 103-3904-01

WLD,CASTER FORK

$166.99

$

Usually ships in 3-6 days

0

20

Exmark 103-4338-01

DISCONTINUED

Note: Includes frame weldment, plus items #10, #17, #18, #22, #32(2) & #36(2). Does not include grease fittings item #23.

$

$

Not available

Exmark 103-5918-01

ASM,FRONT FRAME LCT 52

$

$

Not available

21

Exmark 104-8076

WASHER

$5.49

$

In Stock, Qty 12

0

22

Exmark 302-19

FITTING-GREASE

$2.99

$

In Stock, Qty 20+

0

23

Exmark 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

24

Exmark 323-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

25

Exmark 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

26

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

27

Exmark 325-20

SCREW-HH

$8.49

$

In Stock, Qty 20+

0

28

Exmark 3217-11

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

29

Exmark 3218-6

NUT-JAM

$6.99

$

In Stock, Qty 18

0

30

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

31

Exmark 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 15

0

32

Exmark 3256-29

WASHER-FLAT

$2.99

$

In Stock, only 2 left!

0

33

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

34

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

35

Exmark 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

36

Exmark 32151-103

RING-RETAINING, EXT

$3.49

$

In Stock, Qty 20+

0

37

Exmark 1-513032

TIRE

$99.99

$

In Stock, only 2 left!

0

38

Exmark 1-633585

BEARING-CONE, TAPERED ROLLER

$22.99

$

In Stock, Qty 20+

0

39

Exmark 103-0063

SEAL-CASTER

$9.49

$

In Stock, Qty 20+

0

40

Exmark 103-3051

SPACER-NUT

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on spacer nut Item #40.

$9.49

$

In Stock, Qty 20+

0

41

Exmark 103-3157

126-5359
(Superseded to 126-5359)

$19.99

$

In Stock, Qty 15

0

Exmark 1-850337

PAINT,SPRAY RED

$36.99

$

In Stock, Qty 12

0
