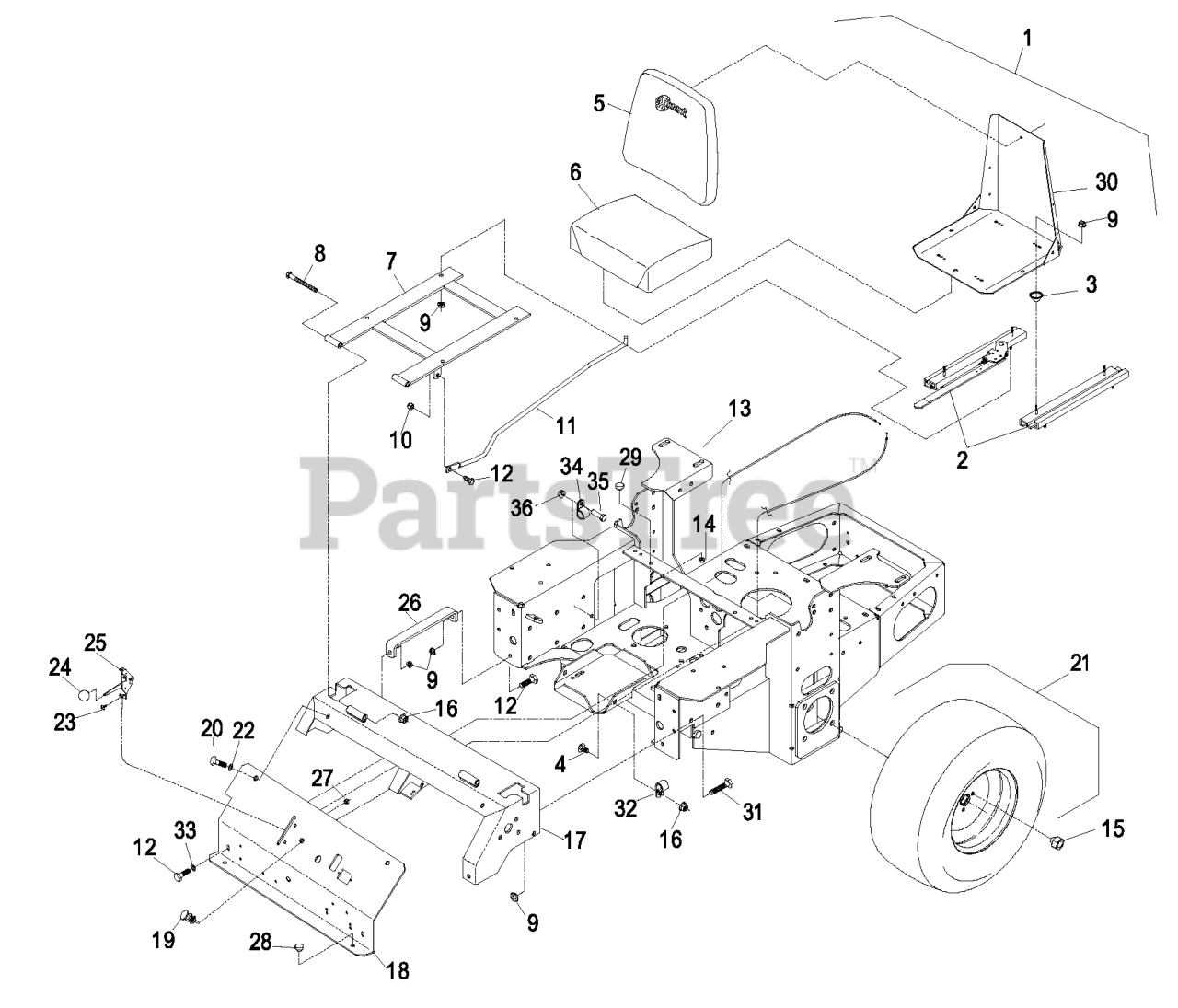

LCT4818KC - Exmark 48" Lazer Z CT Zero-Turn Mower, 18hp Kohler (SN: 370000 - 439999) (2003) Mainframe Group Parts Diagram

48" Lazer Z CT Zero-Turn Mower, 18hp Kohler

Mainframe Group Parts Diagram

  • Title

1

Exmark 103-4394

DISCONTINUED

$

$

Not available

2

Exmark 1-643255

TRACK-SEAT

$230.99

$

In Stock, only 2 left!

0

3

Exmark 1-543401

SPACER-TRACK

$5.49

$

In Stock, Qty 8

0

4

Exmark 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

5

Exmark 103-0289

103-3520
(Superseded to 103-3520)

$249.99

$

Usually ships in 3-6 days

0

6

Exmark 103-0290

103-3521
(Superseded to 103-3521)

$275.99

$

In Stock, Qty 5

0

7

Exmark 1-632187-03

107-3052-03
(Superseded to 107-3052-03)

$368.99

$

Usually ships in 3-6 days

0

8

Exmark 323-39

SCREW-HH

$12.99

$

In Stock, Qty 20+

0

9

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

10

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

11

Exmark 103-1731

ROD-RETAINER, SEAT

$21.99

$

In Stock, only 1 left!

0

12

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

13

Exmark 103-4035-03

109-4916
(Superseded to 109-4916)

$3219.99

$

Usually ships in 3-6 days

0

14

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

15

Exmark 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, only 1 left!

0

16

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

17

Exmark 103-3452

ASM,CONSOLE WELDMENT W/DE

$

$

Not available

18

Exmark 103-0724

DISCONTINUED

$

$

Not available

19

Exmark 103-4090

CONTROL-CHOKE

$47.99

$

In Stock, only 2 left!

0

20

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

21

Exmark 103-3978

WHEEL AND TIRE ASM

$378.99

$

Usually ships in 3-6 days

0

Exmark 103-4269

WHEEL

$257.99

$

Usually ships in 3-6 days

0

Exmark 103-4270

TIRE,20 X 10-10

$

$

Not available

22

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

23

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 20+

0

24

Exmark 1-513592

KNOB-BALL

$7.49

$

In Stock, Qty 20+

0

25

Exmark 103-4091

CABLE-THROTTLE

$58.99

$

In Stock, Qty 17

0

26

Exmark 1-653089-03

103-7935-03
(Superseded to 103-7935-03)

$

$

Not available

27

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

28

Exmark 1-513658

BUMPER

$6.99

$

In Stock, Qty 20+

0

29

Exmark 1-523420

109-2365

$15.99

$

Usually ships in 3-6 days

0

30

Exmark 1-633859

FRAME-SEAT

$203.99

$

In Stock, only 2 left!

0

31

Exmark 322-2

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

32

Exmark 1-603727

CLIP-LOOM

$2.99

$

Usually ships in 3-6 days

0

33

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

34

Exmark 1-513762

CLIP-LOOM

$8.49

$

In Stock, only 1 left!

0

35

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

36

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0
