LCTUV - Exmark Ultra Vac Bagger for Lazer Z CT Mower (SN: 600000 - 669999) (2006)

Ultra Vac Bagger for Lazer Z CT Mower

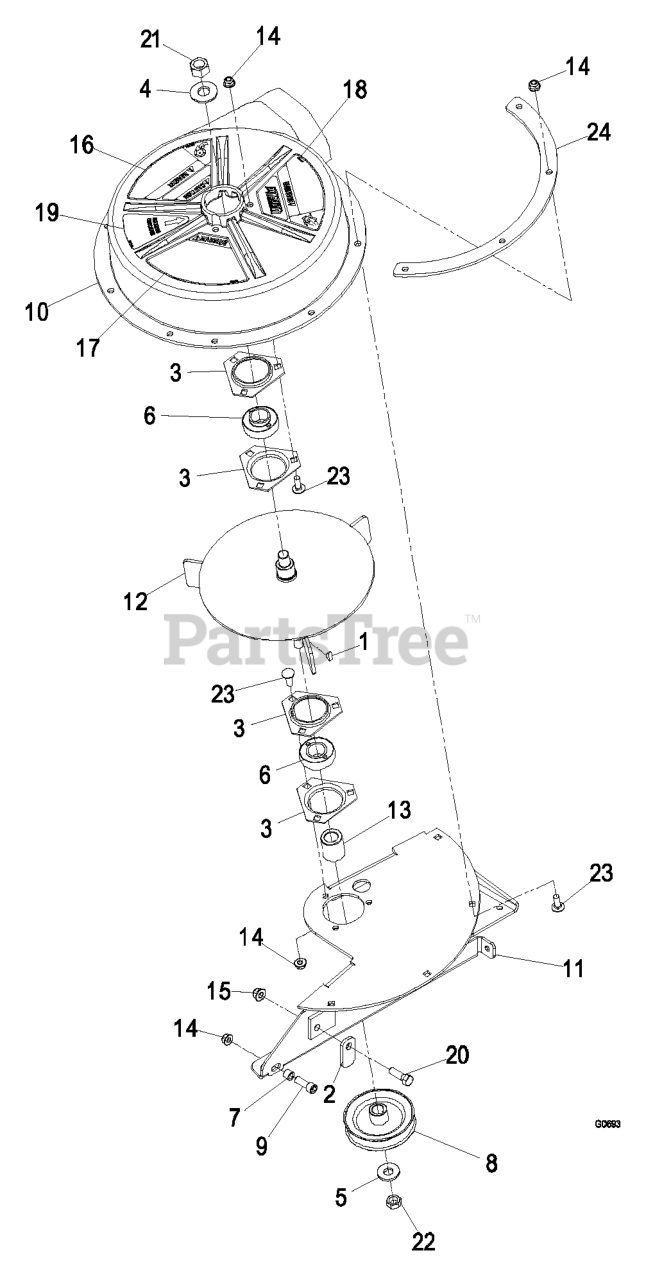

LCTUV - Exmark Ultra Vac Bagger for Lazer Z CT Mower (SN: 600000 - 669999) (2006) > Parts Diagrams (6) > Blower Assembly

  • Title
3257-32

1

Key, Woodruff 3/16 X 5/8

Part# 3257-32

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.98

1-353054

2

Latch, Grass Catcher

Part# 1-353054

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.00

1-513013

3

Housing, Flange

Part# 1-513013

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.46

1-513208

4

Washer, Spring Disk 5/8

Part# 1-513208

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.88

1-513435

5

Washer, Spring Disk 1/2

Part# 1-513435

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.46

1-653346

6

Bearing

Part# 1-653346

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $48.47

103-0126

7

Bushing

Part# 103-0126

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.61

103-1047

8

Sheave, Blower

Part# 103-1047

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $54.25

3274-7

9

Screw, Sh 3/8-16 X 1

Part# 3274-7

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.09

109-2031

10

Asm, Blower Housing W/Decals

Part# 109-2031

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $252.86

103-7154-03

11

Wld, Blower Frame

Part# 103-7154-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $285.68

103-7155

12

Wld, Impeller

Part# 103-7155

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $247.98

103-7163

13

Spacer, Blower

Part# 103-7163

OEM Warranty Repair Part for Exmark

Not available

104-8300

14

Nut, Nyloc 5/16-18 Flg

Part# 104-8300

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.82

104-8301

15

Nut, Nyloc 3/8-16 Flg

Part# 104-8301

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.93

109-1081

16

Decal, Blower

Part# 109-1081

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $15.79

109-1082

17

Decal, Weight

Part# 109-1082

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $15.79

109-1083

18

Decal, Discharge

Part# 109-1083

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $19.44

109-1084

19

Decal, Rotation Ind.

Part# 109-1084

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $7.27

323-7

20

Screw, Hh 3/8-16 X 1 1/4

Part# 323-7

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.29

3219-6

21

Nut, Hex 5/18-18

Part# 3219-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.09

3220-5

22

Nut, Jam 1/2-20

Part# 3220-5

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.23

3230-10

23

Bolt, Carriage 5/16-18 X 7/8

Part# 3230-10

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.82

109-1094

24

Flange, Support

Part# 109-1094

OEM Warranty Repair Part for Exmark

Currently unavailable

103-0583

Kit

Part# 103-0583

Note: Available to repair the welded-on accessory mounting tube on all 44"-52" decks.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $58.34
