LCTUV - Exmark Ultra Vac Bagger for Lazer Z CT Mower (SN: 600000 - 669999) (2006)

Ultra Vac Bagger for Lazer Z CT Mower

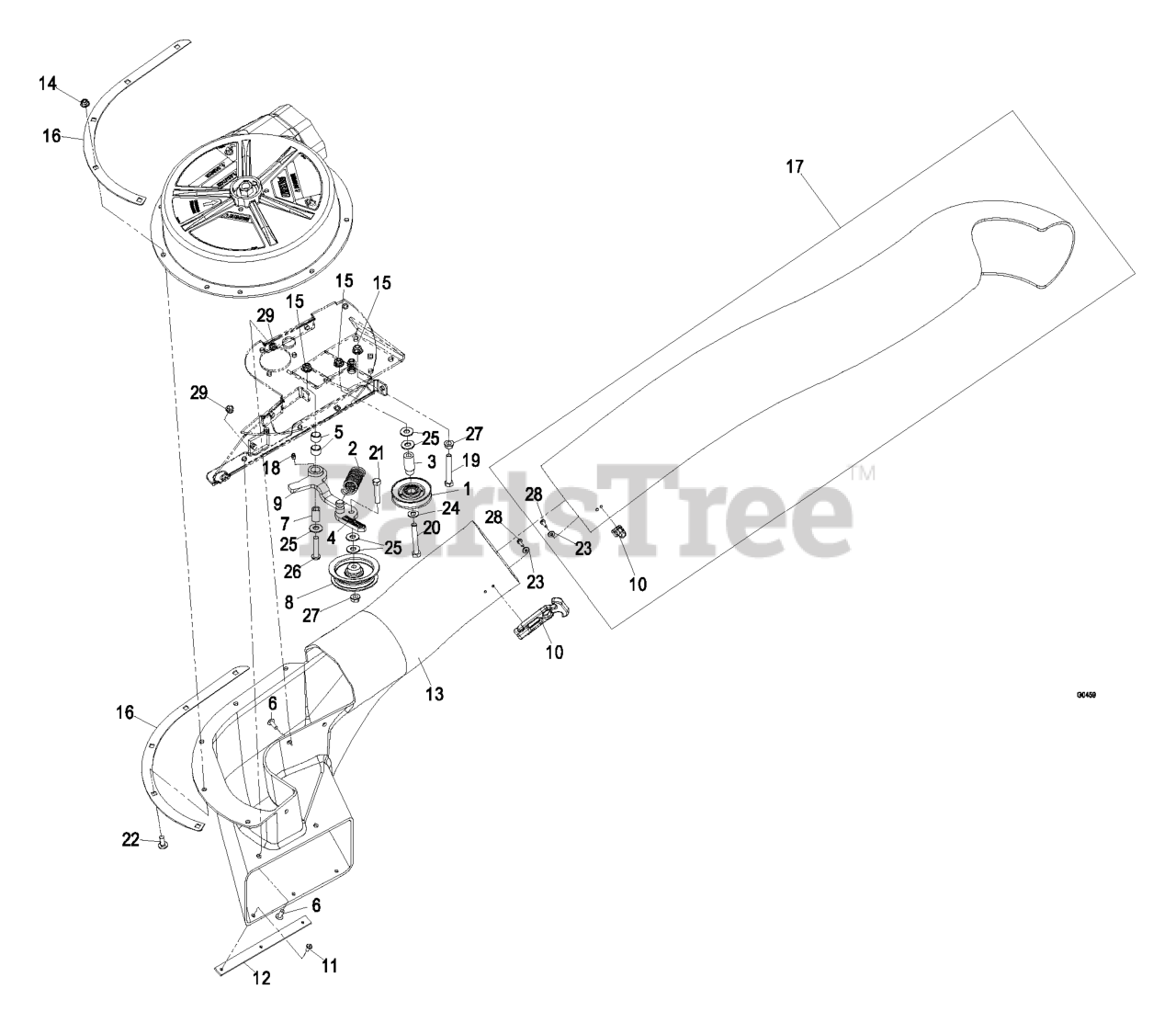

LCTUV - Exmark Ultra Vac Bagger for Lazer Z CT Mower (SN: 600000 - 669999) (2006) > Parts Diagrams (6) > Blower Assembly (Cont.)

  • Title
1-653322

1

Pulley, Idler

Part# 1-653322

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $46.16

1-653331

2

Spring

Part# 1-653331

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.91

1-653366

3

Hub, Spacer

Part# 1-653366

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $17.88

1-653558

4

Decal, Hot Sheave

Part# 1-653558

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.61

1-653600

5

Bearing

Part# 1-653600

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $14.37

1-803076

6

Screw, Pph #1/4 X 3/4

Part# 1-803076

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.95

103-0130

7

Bushing

Part# 103-0130

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.68

103-1103

8

Pulley, Idler

Part# 103-1103

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $49.63

109-2876

9

Asm, Idler W/Decal & Bushings

Part# 109-2876

OEM Warranty Repair Part for Exmark

Currently unavailable

1-653429

10

Asm, Latch

Part# 1-653429

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $48.61

114439

11

Rivet

Part# 114439

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.59

103-4752-03

12

Plate, Reinforcement

Part# 103-4752-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.94

103-7151

13

Housing, Blower

Part# 103-7151

OEM Warranty Repair Part for Exmark

Not available

104-8300

14

Nut, Nyloc 5/16-18 Flg

Part# 104-8300

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.82

104-8301

15

Nut, Nyloc 3/8-16 Flg

Part# 104-8301

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.93

109-1075-03

16

Flange, Cover

Part# 109-1075-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $17.48

109-1939

17

Asm, Upper Tube

Part# 109-1939

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $279.33

302-19

18

Zerk, 1/4-28 Str

Part# 302-19

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.82

323-12

19

Screw, Hh 3/8-16 X 2 1/2

Part# 323-12

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.99

323-13

20

Screw, Hh 3/8-16 X 2 3/4

Part# 323-13

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.91

323-9

21

Screw, Hh 3/8-16 X 1 3/4

Part# 323-9

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.94

3230-10

22

Bolt, Carriage 5/16-18 X 7/8

Part# 3230-10

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.82

3256-14

23

Washer, #10 Std

Part# 3256-14

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.16

3256-24

24

Washer, 3/8 SAE

Part# 3256-24

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.51

3256-4

25

Washer, 3/8 Std

Part# 3256-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.23

3274-107

26

Screw, Button Head 3/8-16 X 1 3/4

Part# 3274-107

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.94

3290-357

27

Nut, Whizlock 3/8-16

Part# 3290-357

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.75

3290-500

28

Screw, Pph #10-24 X 5/8

Part# 3290-500

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.84

32128-33

29

Nut, Whizlock 1/4-20

Part# 32128-33

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.64

103-0583

Mount Tube Kit

Part# 103-0583

Note: Available to repair the welded-on accessory mounting tube on all 44"-52" decks.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $58.34
