LCTUV - Exmark Ultra Vac Bagger for Lazer Z CT Mower (SN: 600000 - 669999) (2006)

Ultra Vac Bagger for Lazer Z CT Mower

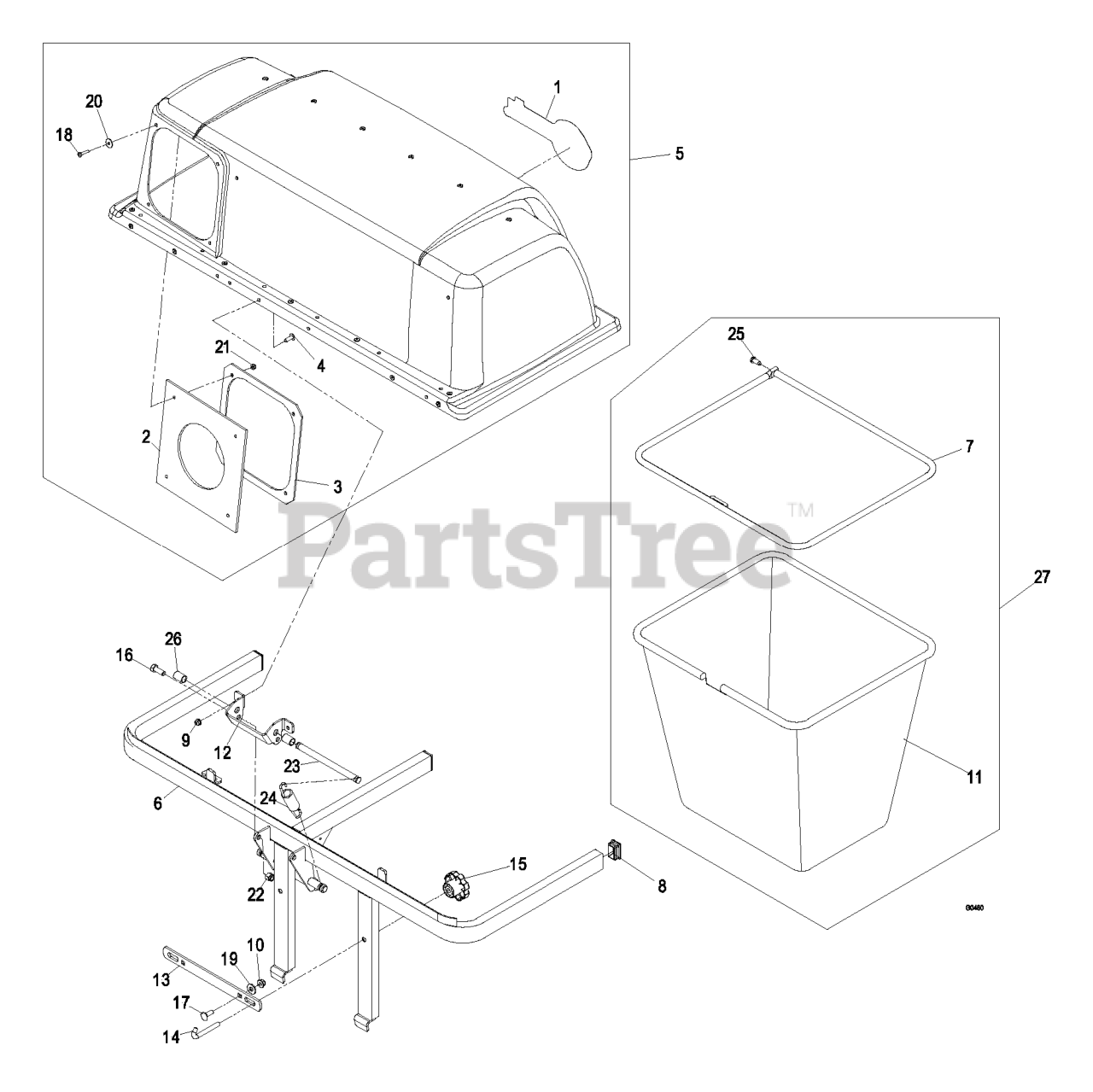

LCTUV - Exmark Ultra Vac Bagger for Lazer Z CT Mower (SN: 600000 - 669999) (2006) > Parts Diagrams (6) > Hood And Bag Assembly

  • Title
1-653546

1

Decal, Exmark

Part# 1-653546

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $14.58

1-653561

2

Seal, Chute

Part# 1-653561

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $13.09

1-653598-03

3

Clamp, Seal

Part# 1-653598-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $55.40

1-803076

4

Screw, Pph 1/4-20 X 3/4

Part# 1-803076

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.95

103-6966

5

Asm, Hood

Part# 103-6966

OEM Warranty Repair Part for Exmark

Not available

103-6967-03

6

Wld, Bagger Frame

Part# 103-6967-03

OEM Warranty Repair Part for Exmark

Not available

103-7145-03

7

Wld, Bag Frame

Part# 103-7145-03

OEM Warranty Repair Part for Exmark

Not available

103-7148

8

Cap, Tube

Part# 103-7148

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.42

104-7201

9

Nut, Nyloc 1/4-20 Flg

Part# 104-7201

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.03

104-8300

10

Nut, Nyloc 5/16-18 Flg

Part# 104-8300

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.82

105-6980

11

Bag, Grass

Part# 105-6980

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $81.44

109-1077-03

12

Hinge, Bagger Top

Part# 109-1077-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $35.78

109-1090

13

Bracket, Bagger Mt

Part# 109-1090

OEM Warranty Repair Part for Exmark

Currently unavailable

109-1091

14

Rod, Bagger Mt

Part# 109-1091

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $6.07

109-1092

15

Knob

Part# 109-1092

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.56

323-6

16

Screw, Hh 3/8-16 X 1

Part# 323-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.97

3230-10

17

Bolt, Carriage 5/16-18 X 7/8

Part# 3230-10

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.82

3250-27

18

Screw, Pph #10-24 X 7/8

Part# 3250-27

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.57

3256-3

19

Washer, 5/16 Std

Part# 3256-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.35

3256-61

20

Washer

Part# 3256-61

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.34

3296-2

21

Nut, Nyloc #10-24

Part# 3296-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.29

3296-39

22

Nut, Nyloc 3/8-16

Part# 3296-39

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.11

114960

23

Pin, Spring

Part# 114960

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $19.60

114962

24

Spring

Part# 114962

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $9.22

613381

25

Screw, Button Head 5/16-18 X .725 Tf

Part# 613381

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.46

9790944

26

Spacer

Part# 9790944

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.77

109-1938

27

Asm, Bag Complete

Part# 109-1938

OEM Warranty Repair Part for Exmark

Not available
