LE 100 (25B-552J710) - Cub Cadet Edger (2016) Wheels & Height Adjustment Parts Diagram

Edger

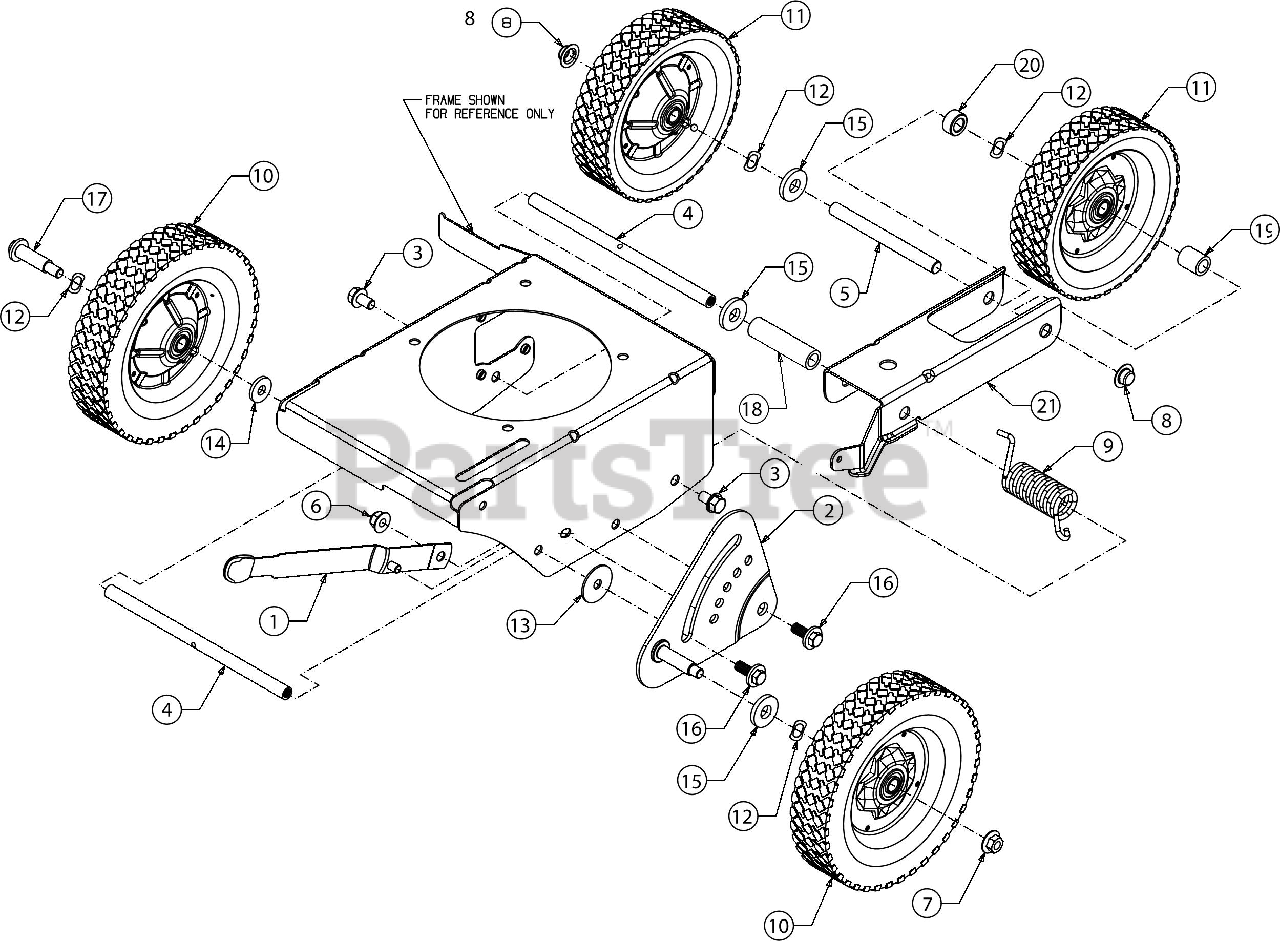

Wheels & Height Adjustment Parts Diagram

  • Title

1

Cub Cadet 687-02022

WHEEL ADJUSTMENT LEVER ASSEMBLY

$65.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 720-0426

HEIGHT ADJUSTMENT KNOB
(Superseded to 731-13116-1)

$12.99

$

In Stock, only 2 left!

0

2

Cub Cadet 687-02585

HEIGHT ADJUMENT ASSEMBLY

$28.99

$

In Stock, only 1 left!

0

3

Cub Cadet 710-0870

SCREW 3/8-16X.625 GR 5

$5.99

$

In Stock, only 2 left!

0

4

Cub Cadet 711-04440

SPACER .50 x 9.25

$27.99

$

In Stock, only 1 left!

0

5

Cub Cadet 711-05696

SHAFT

$5.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 712-04217

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 726-0299

PUSH CAP

$7.49

$

In Stock, Qty 20+

0

9

Cub Cadet 732-04045

TORSION SPRING

$14.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 734-04623

TIRE & WHEEL ASSEMBLY

$45.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 941-0484

BALL BEARING

$6.99

$

In Stock, only 2 left!

0

11

Cub Cadet 734-05075

COMPLETE WHEEL 7 x 1.75

$37.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 936-0232

WAVE WASHER
(Superseded to 736-0232)

$4.49

$

In Stock, Qty 17

0

13

Cub Cadet 736-0234

FLAT WASHER .390 ID x 1.50 OD x .075

$5.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 736-0258

FLAT WASHER .385 x 1.00 x .135

$4.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 736-04019

FLAT WASHER .531 x 1.25 x .181

$7.49

$

In Stock, only 1 left!

0

16

Cub Cadet 738-04149

SCREW

$4.49

$

Usually ships in 3-6 days

0

17

Cub Cadet 738-0929

SHOULDER SCREW .496X1.44 3/8-16

$7.49

$

In Stock, only 2 left!

0

18

Cub Cadet 750-04129

SPACER

$4.49

$

Usually ships in 3-6 days

0

19

Cub Cadet 750-05548

SPACER

$3.49

$

Usually ships in 3-6 days

0

20

Cub Cadet 750-0664

SPACER-.505 1D

$6.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 787-01240-4021

WHEEL BRACKET

$27.99

$

Usually ships in 3-6 days

0
