LE 116 P (967628404) - Husqvarna Walk-Behind Mower (2018-02) MOTOR Parts Diagram

Walk-Behind Mower

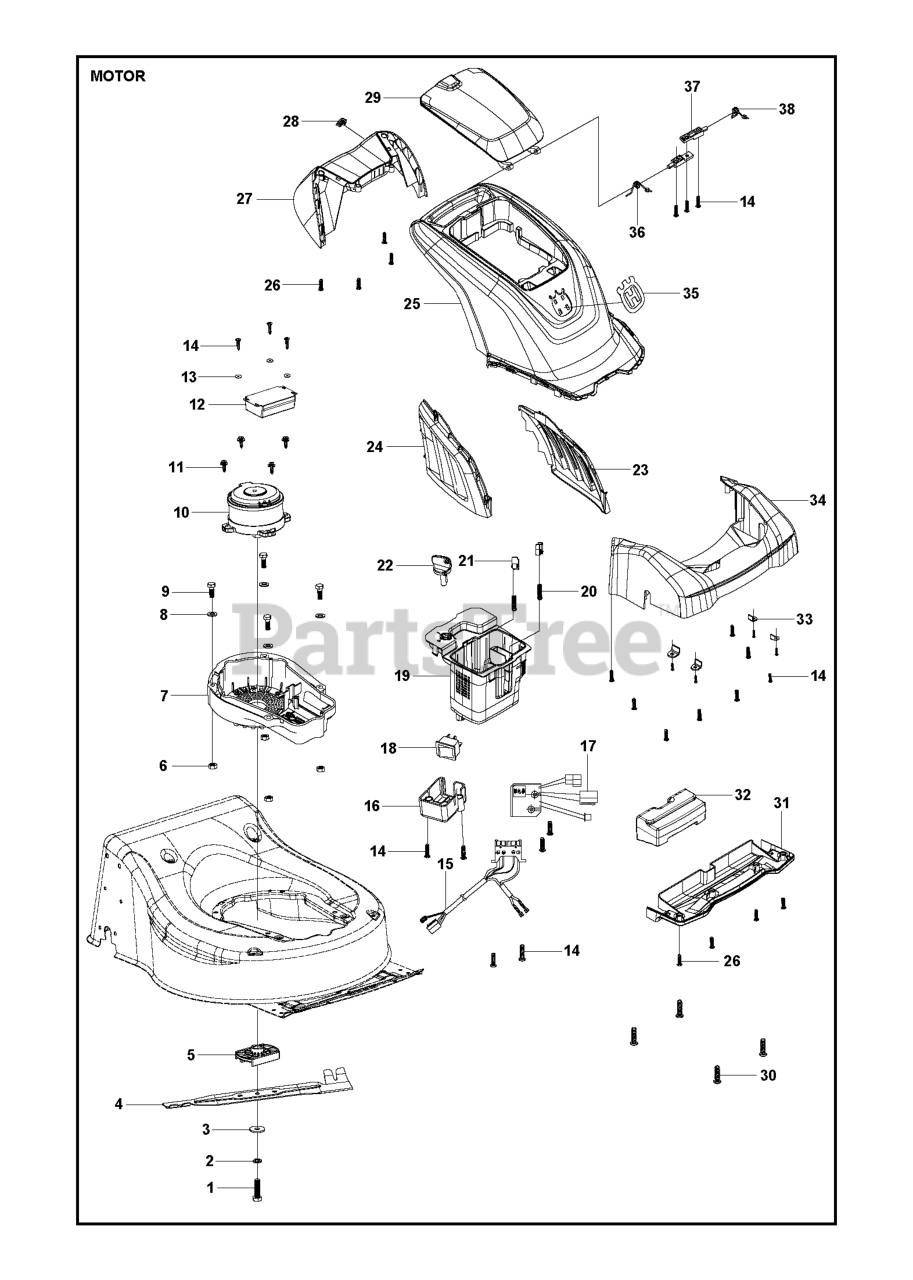

MOTOR Parts Diagram

  • Title

14

Husqvarna 579685501

SCREW

$3.49

$

Usually ships in 3-10 days

0

20

Husqvarna 579687001

SPRING

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 579684201

SPRING WASHER

$3.49

$

Usually ships in 3-10 days

0

38

Husqvarna 579687801

TORSION SPRING LEFT

$5.99

$

Usually ships in 3-10 days

0

9

Husqvarna 579686101

BOLT

$4.99

$

Usually ships in 3-10 days

0

26

Husqvarna 579686701

SCREW

$3.49

$

Usually ships in 3-10 days

0

1

Husqvarna 579684101

BOLT

$3.49

$

Usually ships in 3-10 days

0

29

Husqvarna 501488301

COVER BATTERY LID

$28.99

$

Usually ships in 3-10 days

0

25

Husqvarna 501488401

COVER MOTOR COVER

$45.99

$

Usually ships in 3-10 days

0

28

Husqvarna 579687101

WIRE

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 579685901

HOLDER

$45.99

$

Usually ships in 3-10 days

0

22

Husqvarna 501490101

KEY

$6.99

$

In Stock, only 1 left!

0

3

Husqvarna 579684301

WASHER

$3.49

$

Usually ships in 3-10 days

0

12

Husqvarna 598764501

NEEDS DESCRIPTION

$

$

Currently unavailable

30

Husqvarna 579687501

SCREW

$4.99

$

Usually ships in 3-10 days

0

10

Husqvarna 598764301

NEEDS DESCRIPTION

$

$

Currently unavailable

6

Husqvarna 579685801

NUT LOCKING

$3.49

$

Usually ships in 3-10 days

0

37

Husqvarna 501489801

HINGE BATTERY LID HINGE

$4.99

$

Usually ships in 3-10 days

0

21

Husqvarna 501490201

CAP COMPRESSION SPRING CAP

$5.99

$

Usually ships in 3-10 days

0

32

Husqvarna 579843901

WEIGHT # 25100184101

$28.99

$

Usually ships in 3-10 days

0

8

Husqvarna 579686001

WASHER

$4.99

$

Usually ships in 3-10 days

0

36

Husqvarna 579687701

TORSION SPRING

$3.99

$

Usually ships in 3-10 days

0

4

Husqvarna 501171601

MOWER BLADE MULCH 40CM PRODUCT
(Superseded to 501171610)

$31.99

$

Usually ships in 3-10 days

0

23

Husqvarna 501488501

COVER LEFT AIR WINDOW PLATE

$22.99

$

Usually ships in 3-10 days

0

34

Husqvarna 501488901

COVER FRONT COVER

$34.99

$

Usually ships in 3-10 days

0

27

Husqvarna 501488801

COVER BACK COVER

$28.99

$

Usually ships in 3-10 days

0

5

Husqvarna 579684501

BLADE SUPPORT

$17.99

$

Usually ships in 3-10 days

0

17

Husqvarna 582029202

PRINTED CIRCUIT ASSY PUSH

$56.99

$

Usually ships in 3-10 days

0

19

Husqvarna 501489601

BOX BATTERY BOX

$26.99

$

Usually ships in 3-10 days

0

13

Husqvarna 579686501

WASHER

$3.49

$

Usually ships in 3-10 days

0

24

Husqvarna 501488701

COVER RIGHT AIR WINDOW PLATE

$22.99

$

Usually ships in 3-10 days

0

33

Husqvarna 579687601

WASHER

$3.49

$

Usually ships in 3-10 days

0

18

Husqvarna 579686901

KEY SWITCH

$6.99

$

Usually ships in 3-10 days

0

11

Husqvarna 579686301

SCREW

$3.49

$

Usually ships in 3-10 days

0

35

Husqvarna 501489101

DECAL LOGO

$3.49

$

Usually ships in 3-10 days

0

31

Husqvarna 501489501

COVER FRONT HANDLE (UNDER SIDE

$28.99

$

Usually ships in 3-10 days

0

15

Husqvarna 579686602

WIRE BATTERY CONNECTOR

$74.99

$

Usually ships in 3-10 days

0

16

Husqvarna 579686801

PLATE

$4.99

$

Usually ships in 3-10 days

0
