LE 116 R (967820601) - Husqvarna Walk-Behind Mower (2018-02) HANDLE Parts Diagram

Walk-Behind Mower

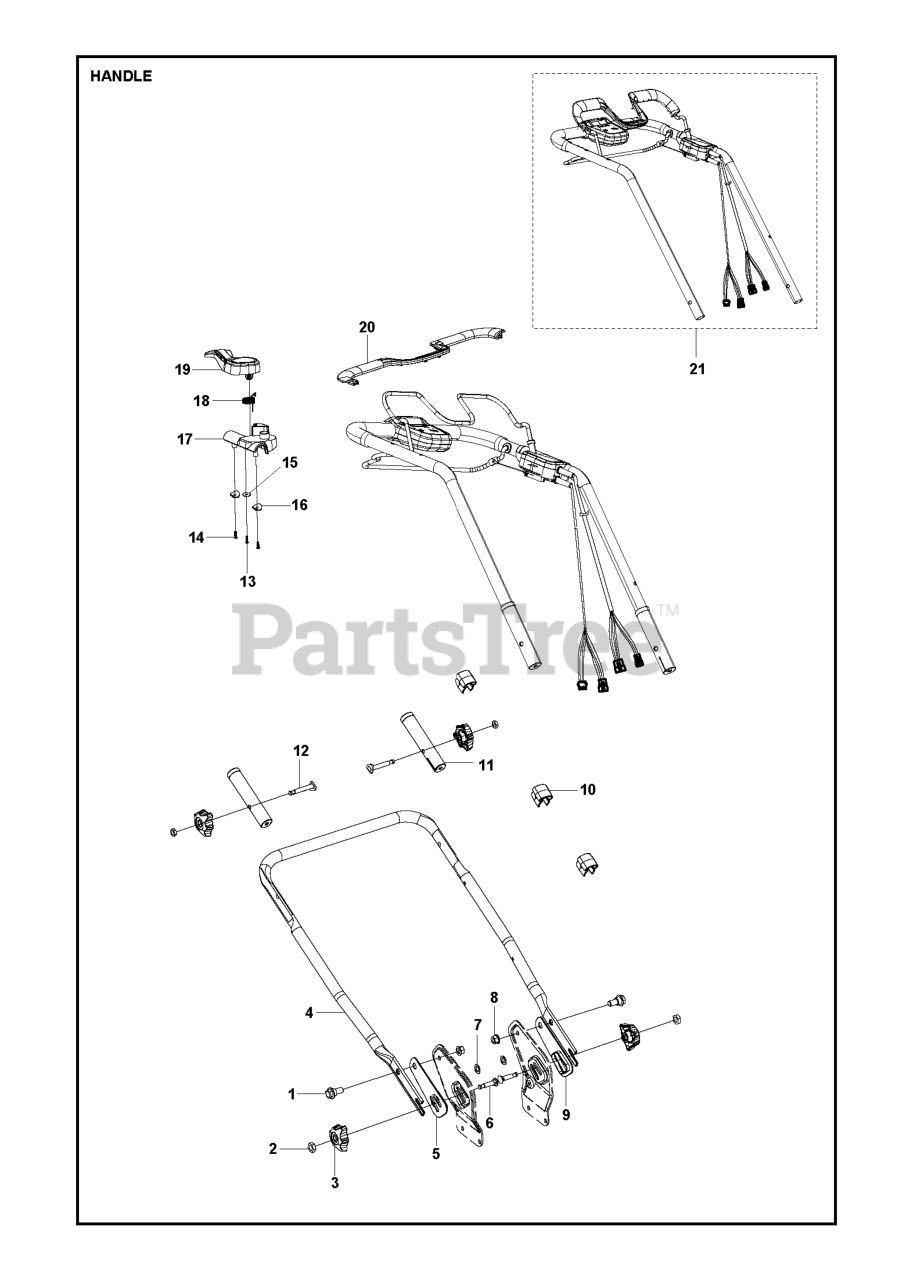

HANDLE Parts Diagram

  • Title

19

Husqvarna 501490401

COVER BAIL STOP SOLUTION

$20.99

$

Usually ships in 3-10 days

0

11

Husqvarna 501055401

COVER

$7.99

$

Usually ships in 3-10 days

0

18

Husqvarna 579688801

TORSION SPRING

$6.49

$

Usually ships in 3-10 days

0

5

Husqvarna 501055601

PLATE RIGHT

$10.99

$

Usually ships in 3-10 days

0

10

Husqvarna 501055701

HOLDER CABLE

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 501490301

HOLDER BAIL STOP SOLUTION HOLD

$11.99

$

Usually ships in 3-10 days

0

4

Husqvarna 579688001

HANDLEBAR LOWER

$62.99

$

Usually ships in 3-10 days

0

14

Husqvarna 579687501

SCREW

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 502259901

BOLT

$7.49

$

Usually ships in 3-10 days

0

8

Husqvarna 587913501

LOCKING BOLT M8,GB6187.1 #2680

$3.49

$

Usually ships in 3-10 days

0

16

Husqvarna 579688701

WASHER

$4.99

$

Usually ships in 3-10 days

0

3

Husqvarna 587585801

KNOB #25341500101

$10.99

$

Usually ships in 3-10 days

0

9

Husqvarna 501055501

PLATE LEFT

$10.99

$

Usually ships in 3-10 days

0

15

Husqvarna 579686501

WASHER

$4.99

$

Usually ships in 3-10 days

0

1

Husqvarna 502429901

BOLT

$4.99

$

Usually ships in 3-10 days

0

20

Husqvarna 501491301

COVER BAIL ARM COVER

$14.99

$

Usually ships in 3-10 days

0

12

Husqvarna 502402101

BOLT

$8.99

$

Usually ships in 3-10 days

0

2

Husqvarna 587913301

HEXAGON NUT #26800502301

$4.99

$

Usually ships in 3-10 days

0

13

Husqvarna 579686701

SCREW

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 589969901

HANDLE KIT DAYE# 90000305301

$159.99

$

Usually ships in 3-10 days

0

7

Husqvarna 502258701

SPACER RING

$4.99

$

Usually ships in 3-10 days

0
