LE 221 R (967820501) - Husqvarna Walk-Behind Mower (2018-01) HANDLE Parts Diagram

Walk-Behind Mower

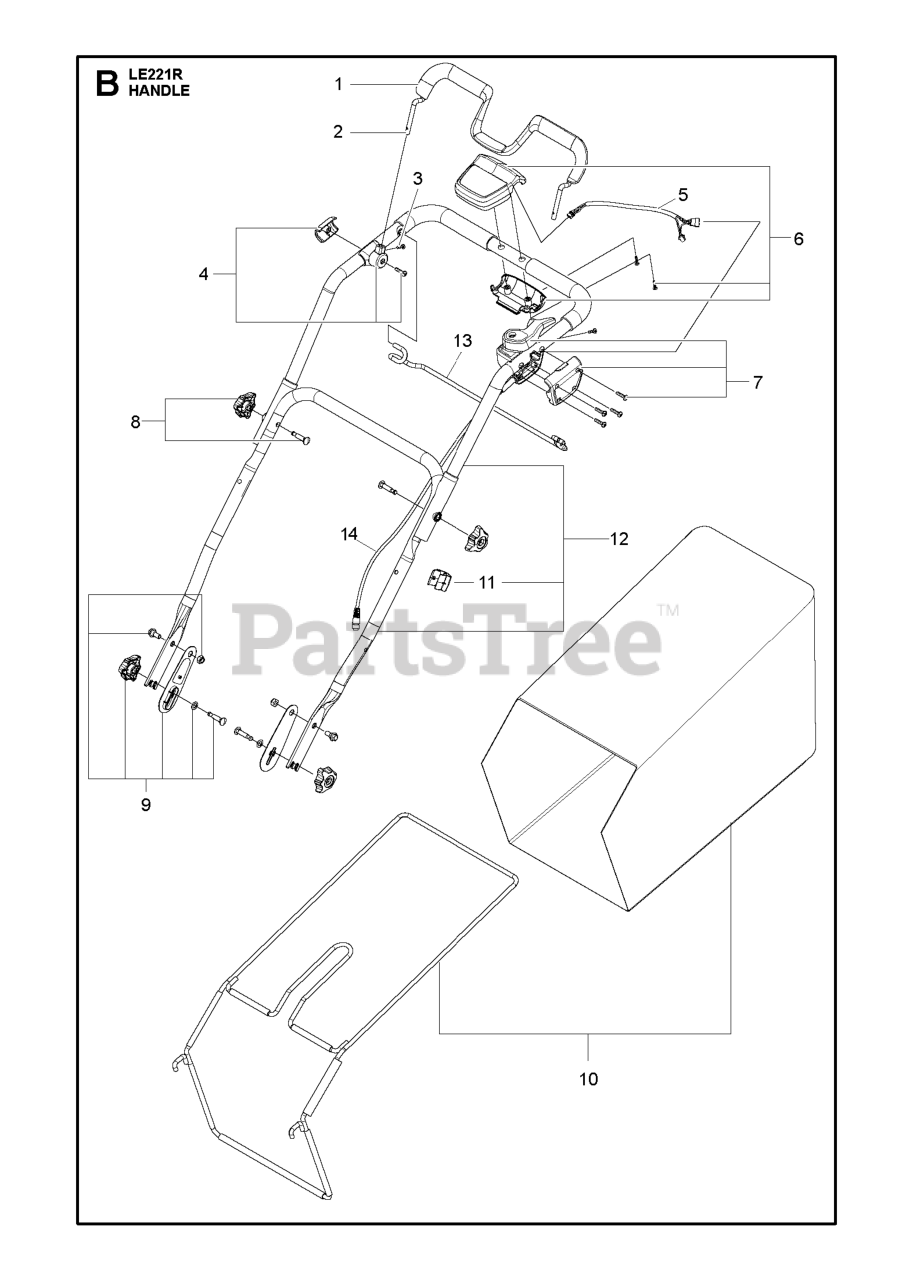

HANDLE Parts Diagram

  • Title

7

Husqvarna 593118001

SWITCHBOX ASSY SPARE PART ASSY

Note: Spare part assy

$71.99

$

Usually ships in 3-10 days

0

10

Husqvarna 593738001

GRASS BAG ASSY LE121P / LE221

Note: Grassbag, 593297601 + frame, 593297501

$89.99

$

Usually ships in 3-10 days

0

2

Husqvarna 590593902

BAIL HANDLE ASSY OPC BAIL

Note: OPC bail

$23.99

$

Usually ships in 3-10 days

0

12

Husqvarna 593737502

HANDLE ASSY

Note: Upper & lower handle + grip + clamp

$89.99

$

Usually ships in 3-10 days

0

3

Husqvarna 593198701

DRIVE SCREW HANDLE ASSY M4 BAI

Note: M4 bail screw

$3.99

$

Usually ships in 3-10 days

0

1

Husqvarna 590593801

GRIP HANDLE ASSY OPC BAIL

Note: Bail ergonomic grip

$9.99

$

Usually ships in 3-10 days

0

6

Husqvarna 593736701

CONTROL BOARD ASSY LE221R

Note: LE Drive

$89.99

$

Usually ships in 3-10 days

0

11

Husqvarna 591086401

CABLE HOLDER HANDLE ASSY

Note: Handle clip

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 593297801

BAIL HANDLE ASSY DRIVE BAIL

Note: Drive bail

$29.99

$

Usually ships in 3-10 days

0

4

Husqvarna 593118701

BAIL ARM ASSY SPARE PART ASSY

Note: Spare part assy

$14.99

$

Usually ships in 3-10 days

0

9

Husqvarna 593736801

KNOB ASSY LOWER HANDLE SCREW K

Note: Handle-chassy fastening assy

$17.99

$

Usually ships in 3-10 days

0

8

Husqvarna 593297301

KNOB KNOB ASSY UPPER

Note: Knob assy upper

$3.99

$

In Stock, only 2 left!

0

14

Husqvarna 597688701

Cables

$21.99

$

In Stock, only 2 left!

0

5

Husqvarna 593198601

EXTENSION CABLE CONTROL PANEL

Note: Control board cable

$8.49

$

Usually ships in 3-10 days

0
