LE 235 - Shindaiwa Lawn Edger (SN: T86914001001 - T86914999999) GEAR CASE S/N T86914001001 - T86914004271 Parts Diagram

Lawn Edger

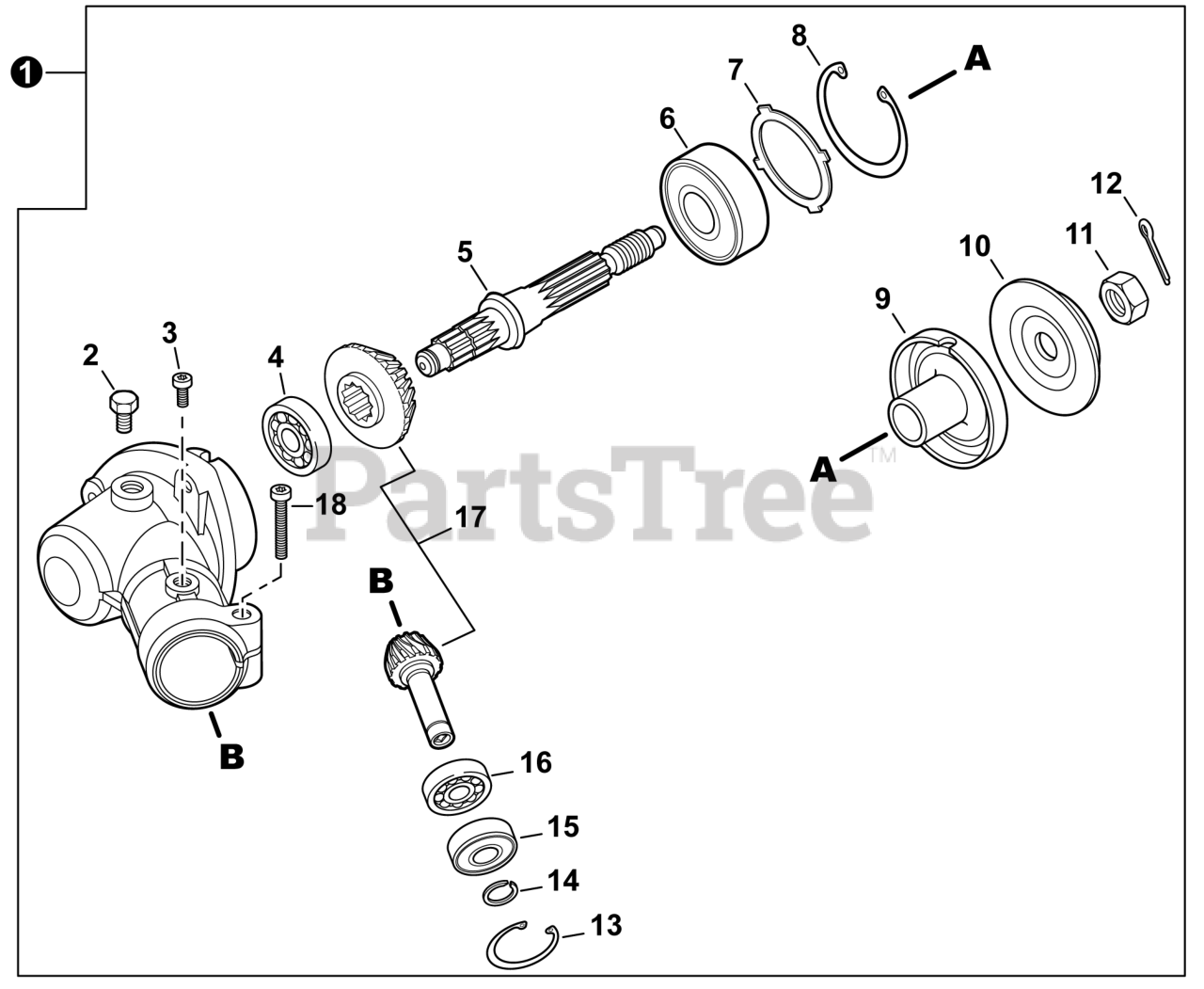

GEAR CASE S/N T86914001001 - T86914004271 Parts Diagram

  • Title

1

Echo P021051870

GEAR CASE ASSY
(Superseded to P021054060)

Note: Includes Items 2-18

$107.99

$

Usually ships in 2-4 days

0

2

Echo 61043450031

BOLT M8x8

$1.99

$

In Stock, only 1 left!

0

3

Echo V805000140

BOLT, TORX 5x12

$0.99

$

In Stock, Qty 20+

0

4

Echo 9411000629

BEARING, BALL 629A

$10.99

$

Usually ships in 2-4 days

0

5

Echo C534001090

SHAFT, GEAR

$50.99

$

In Stock, only 1 left!

0

6

Echo 90081206201

BEARING, BALL 6201

$12.99

$

In Stock, Qty 8

0

7

Echo V340000180

WASHER

$1.49

$

In Stock, Qty 20+

0

8

Echo 90070200032

RING, SNAP 32

$1.99

$

In Stock, Qty 20+

0

9

Echo C535001240

PLATE, ADAPTOR - UPPER

$19.99

$

In Stock, only 1 left!

0

10

Echo C535000150

PLATE, ADAPTOR - LOWER

$9.49

$

In Stock, Qty 20+

0

11

Echo 90051300010

NUT 10x1.25 LH

$1.49

$

In Stock, Qty 20+

0

12

Echo 90030020022

PIN, COTTER 2x22

$0.99

$

In Stock, Qty 20+

0

13

Echo 90070200025

RING, SNAP 25

$1.99

$

In Stock, Qty 5

0

14

Echo 90070100009

RING, SNAP 9

$0.99

$

Usually ships in 2-4 days

0

15

Echo 9411100609

BEARING, BALL 609ZA

$10.99

$

In Stock, only 1 left!

0

16

Echo 9411000609

BEARING, BALL 609A

$10.99

$

Usually ships in 2-4 days

0

17

Echo V000000250

GEAR SET

$69.99

$

In Stock, only 1 left!

0

18

Echo V805000170

BOLT, TORX 5x25

$0.99

$

In Stock, Qty 20+

0
