LE 250 - Shindaiwa Lawn Edger Trigger Grip Assembly Parts Diagram

Lawn Edger

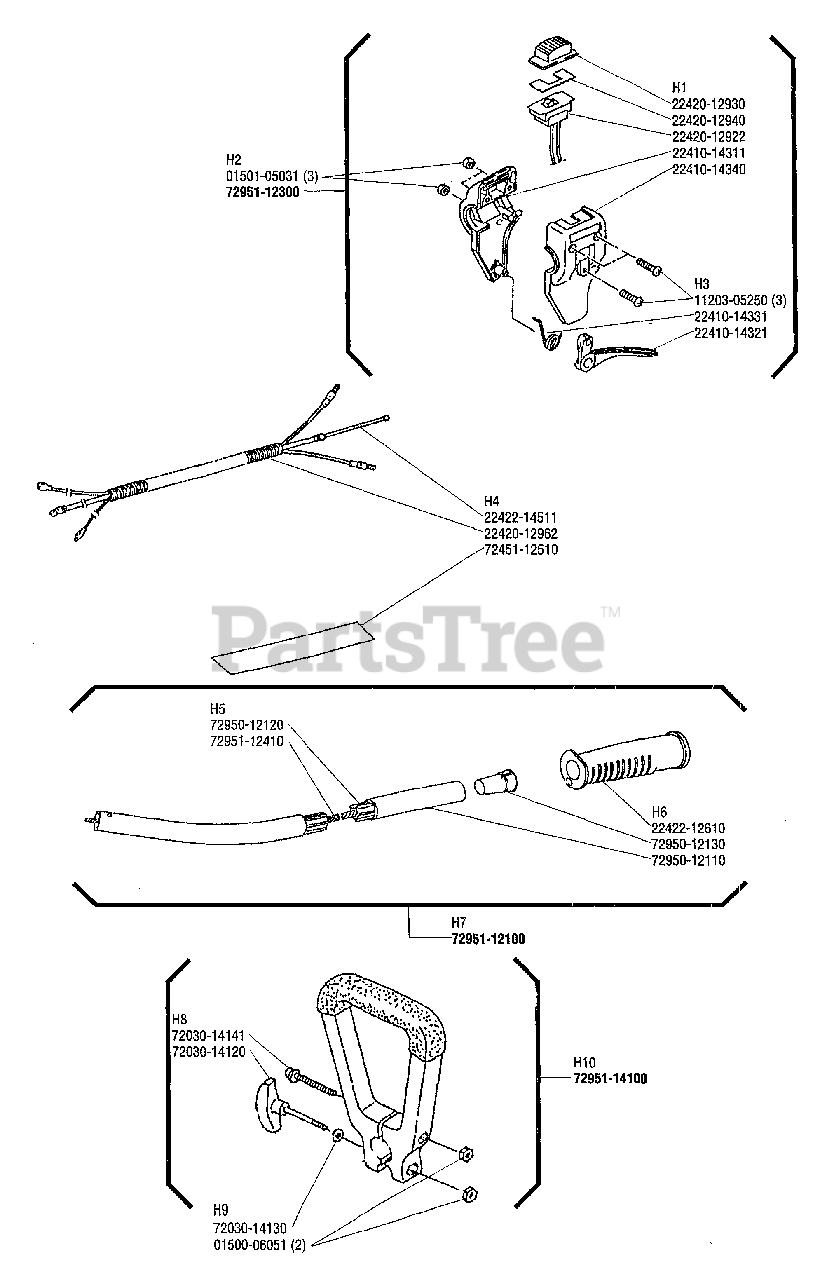

Trigger Grip Assembly Parts Diagram

  • Title

H1-22420-12930

Echo 22420-12930

KNOB
(Superseded to A444000090)

$2.99

$

In Stock, only 4 left!

0

H1-22420-12940

Echo 22420-12940

PLATE
(Superseded to X510000500)

$2.99

$

Usually ships in 2-4 days

0

H1-22420-12922

Echo 22420-12922

SWITCH COMPLETE
(Superseded to Discontinued)

$

$

Not available

H1-22410-14311

Echo 22410-14311

BRACKET, R, USE 22410-14312
(Superseded to 22410-14312)

$6.49

$

In Stock, Qty 6

0

H1-22410-14340

Echo 22410-14340

BRACKET L
(Superseded to 22410-14341)

$6.99

$

In Stock, Qty 7

0

H3-11203-05250

Echo 11203-05250

SCREW
(Superseded to 9157805025)

$0.99

$

In Stock, Qty 7

0

H3-22410-14331

Echo 22410-14331

SPRING
(Superseded to V452000440)

$1.99

$

In Stock, Qty 11

0

H3-22410-14321

Echo 22410-14321

LEVER
(Superseded to C450000460)

$7.99

$

In Stock, Qty 18

0

H2-01501-05031

Echo 01501-05031

NUT
(Superseded to 90050200005)

$0.99

$

In Stock, Qty 8

0

H2-72951-12300

Echo 72951-12300

THROTTLE LEVER ASY.
(Superseded to Discontinued)

$

$

Not available

H4-22422-14511

Echo 22422-14511

THROTTLE CABLE
(Superseded to Discontinued)

$

$

Not available

H4-22420-12962

Echo 22420-12962

TUBE
(Superseded to 22420-12963)

$1.99

$

Usually ships in 2-4 days

0

H4-72451-12510

Echo 72451-12510

LABEL, NAME PLATE
(Superseded to Discontinued)

$

$

Not available

H5-72950-12120

Echo 72950-12120

LINER
(Superseded to 72950-12121)

$48.99

$

Usually ships in 2-4 days

0

H5-72951-12410

Echo 72951-12410

SHAFT, FLEX
(Superseded to C506000180)

$11.99

$

In Stock, only 2 left!

0

H6-22422-12610

Echo 22422-12610

GRIP
(Superseded to C412000390)

$14.99

$

In Stock, only 2 left!

0

H6-72950-12130

Echo 72950-12130

SPACER
(Superseded to 72495-12130)

$1.99

$

Usually ships in 2-4 days

0

H6-72950-12110

Echo 72950-12110

OUTER PIPE, USE 80027
(Superseded to 80027)

$205.99

$

Usually ships in 2-4 days

0

H7-72951-12100

Echo 72951-12100

OUTER TUBE ASSY
(Superseded to 72951-12101)

$217.99

$

Usually ships in 2-4 days

0

H10-72951-14100

Echo 72951-14100

HANDLE ASSY
(Superseded to P021034490)

$42.99

$

Usually ships in 2-4 days

0

H8-72030-14141

Echo 72030-14141

SCREW
(Superseded to V254000040)

$1.49

$

Usually ships in 2-4 days

0

H8-72030-14120

Echo 72030-14120

KNOB
(Superseded to V299000380)

$5.99

$

Usually ships in 2-4 days

0

H9-72030-14130

Echo 72030-14130

WASHER
(Superseded to V304000160)

$1.49

$

In Stock, Qty 12

0

H9-01500-06051

Echo 01500-06051

NUT
(Superseded to 90050000006)

$0.99

$

In Stock, Qty 20+

0
