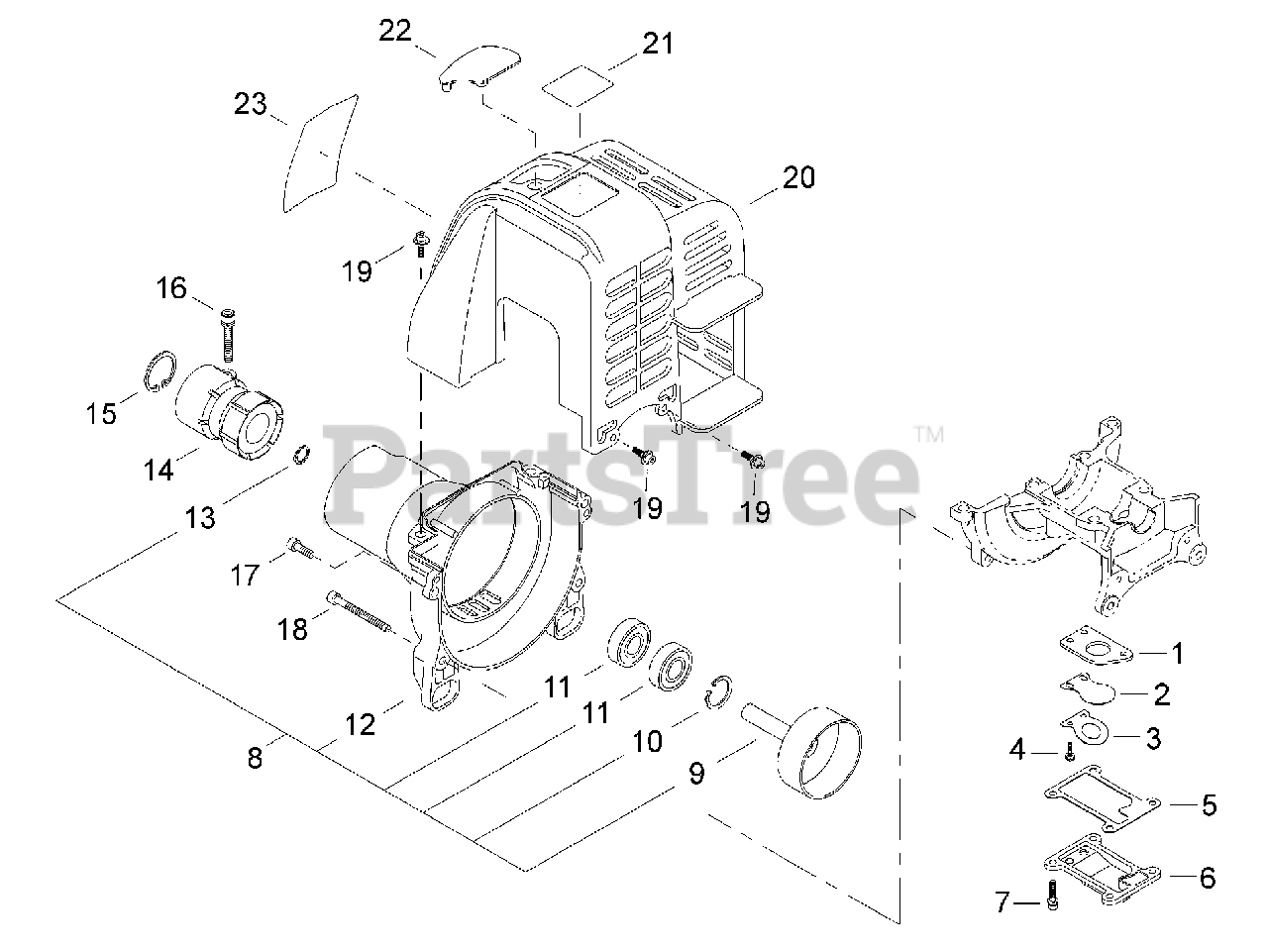

LE 2510 - Shindaiwa Lawn Edger Engine Cover, Fan Cover, Reed Valve Parts Diagram

Lawn Edger

Engine Cover, Fan Cover, Reed Valve Parts Diagram

  • Title

1

Echo 62901-21320

PLATE, REED BACKING
(Superseded to A200000750)

$12.99

$

Usually ships in 2-4 days

0

2

Echo 72320-83121

VALVE, REED
(Superseded to A211000030)

$5.99

$

Usually ships in 2-4 days

0

3

Echo 72320-83132

STOP, REED VALVE
(Superseded to A212000040)

$3.49

$

Usually ships in 2-4 days

0

4

Echo 01211-03100

SCREW - 3X10
(Superseded to 9134103010)

$1.49

$

Usually ships in 2-4 days

0

5

Echo 62901-21130

GASKET, REED VALVE
(Superseded to V109000100)

$1.99

$

In Stock, Qty 5

0

6

Echo 62901-21120

COVER, REED VALVE
(Superseded to A123000000)

$6.49

$

Usually ships in 2-4 days

0

7

Echo 11022-04120

SCREW - 4X12
(Superseded to V202000340)

$1.49

$

Usually ships in 2-4 days

0

8

Echo 62500-31011

FAN CASE ASSY
(Superseded to P021028160)

$110.99

$

Usually ships in 2-4 days

0

9

Echo 70137-31210

DRUM, CLUTCH
(Superseded to A556000780)

$33.99

$

Usually ships in 2-4 days

0

10

Echo 02432-26120

RING, RETAINING - 26
(Superseded to 9242426000)

$1.49

$

In Stock, Qty 5

0

11

Echo 02002-06000

BEARING, BALL - 6000
(Superseded to 90080406000)

$10.99

$

In Stock, Qty 9

0

12

Echo 62901-31112

CASE, FAN
(Superseded to A172001840)

$56.99

$

Usually ships in 2-4 days

0

13

Echo 22000-13320

RING, RETAINING
(Superseded to V583000160)

$1.49

$

In Stock, Qty 20+

0

14

Echo 20087-31411

CUSHION
(Superseded to A575000190)

$18.99

$

In Stock, only 2 left!

0

15

Echo 02432-40170

RING, RETAINING - 40
(Superseded to 9242440000)

$1.99

$

In Stock, only 4 left!

0

16

Echo 11020-05220

SCREW - 5X22
(Superseded to V203000620)

$0.99

$

Usually ships in 2-4 days

0

17

Echo 01020-05160

SCREW - 5X16
(Superseded to 90010505016)

$1.49

$

In Stock, only 2 left!

0

18

Echo 11022-05450

SCREW - 5X45
(Superseded to V203000610)

$1.99

$

In Stock, Qty 20+

0

19

Echo 11024-04160

SCREW - 4X16
(Superseded to V202000300)

$0.99

$

In Stock, Qty 17

0

20

Echo 62901-32111

COVER, ENGINE
(Superseded to A160001861)

$28.99

$

Usually ships in 2-4 days

0

21

Echo 62500-91320

LABEL - MODEL LE2510
(Superseded to X504002090)

$3.99

$

Usually ships in 2-4 days

0

22

Echo 62901-32312

COVER, SPARK PLUG
(Superseded to A429000140)

$2.99

$

Usually ships in 2-4 days

0

23

Echo 19420-00106

LABEL - C4
(Superseded to X504002530)

$2.49

$

Usually ships in 2-4 days

0
