LE 254 - Shindaiwa Lawn Edger (SN: T76314001001 - T76314999999) EDGER SHIELD Parts Diagram

Lawn Edger

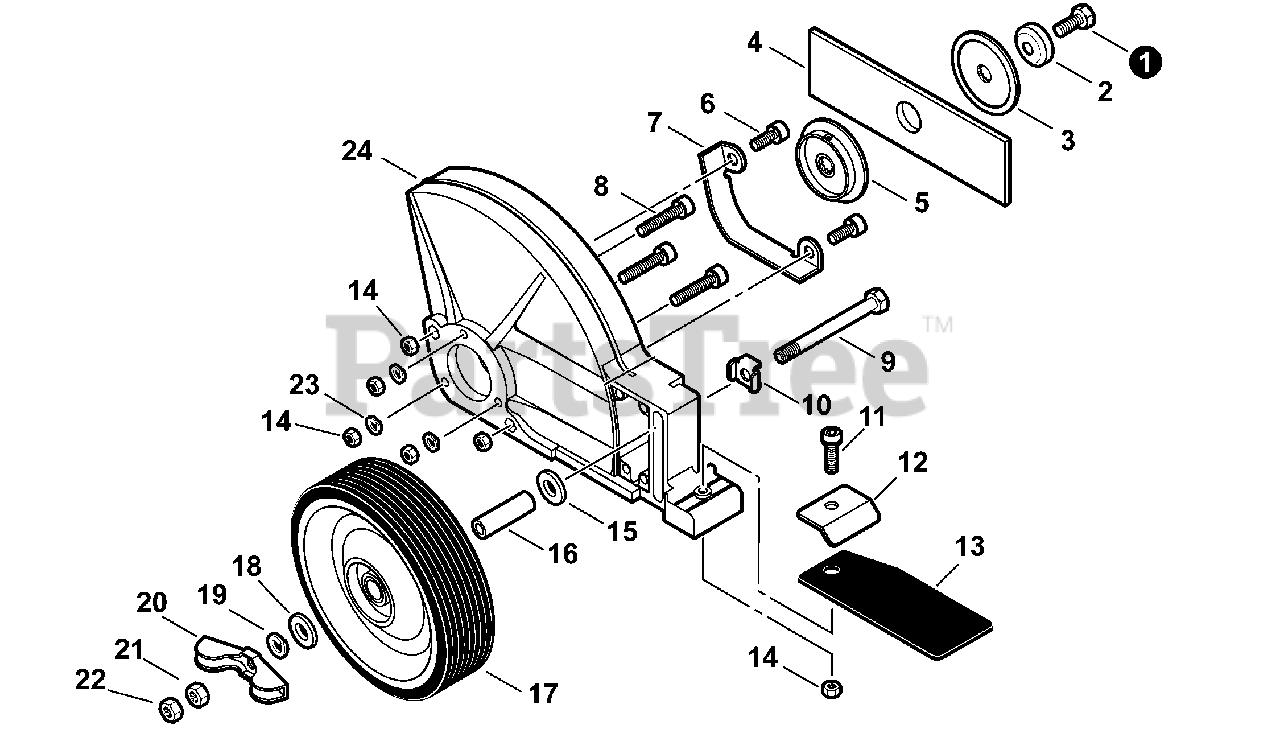

EDGER SHIELD Parts Diagram

  • Title

1

Echo V205000480

BOLT 8

$2.99

$

In Stock, Qty 9

0

2

Echo C535000860

GUARD, BOLT

$2.99

$

In Stock, only 3 left!

0

3

Echo C535000851

PLATE, ADAPTOR - LOWER

$17.99

$

In Stock, only 1 left!

0

4

Echo 80419C

BLADE - 2 PK

$7.99

$

Usually ships in 2-4 days

0

5

Echo C535000891

PLATE, ADAPTOR - UPPER

$21.99

$

Usually ships in 2-4 days

0

6

Echo V203000950

BOLT M5×12

$0.99

$

In Stock, Qty 8

0

7

Echo C557000100

PROTECTOR, GEAR CASE

$9.49

$

In Stock, only 2 left!

0

8

Echo V203000560

BOLT M5×25

$1.99

$

In Stock, Qty 5

0

9

Echo 90010008090

BOLT M8×90

$1.99

$

In Stock, only 2 left!

0

10

Echo V152002400

PLATE, LOCK

$2.99

$

In Stock, Qty 18

0

11

Echo V203000720

BOLT M5×16
(Superseded to 9112205016)

$1.49

$

In Stock, Qty 13

0

12

Echo V152002410

PLATE, FLAP

$7.99

$

In Stock, only 2 left!

0

13

Echo C550000470

FLAP, DEBRIS

$4.99

$

In Stock, Qty 11

0

14

Echo 90050000005

NUT 5

$0.99

$

In Stock, Qty 20+

0

15

Echo V306000300

WASHER

$1.49

$

In Stock, Qty 8

0

16

Echo V355000450

SLEEVE

$4.99

$

In Stock, only 2 left!

0

17

Echo C730000050

WHEEL
(Superseded to P200000900)

$27.99

$

In Stock, only 3 left!

0

18

Echo V306000300

WASHER

$1.49

$

In Stock, Qty 8

0

19

Echo 90060500008

WASHER, SPRING 8

$0.99

$

In Stock, Qty 20+

0

20

Echo V299000440

KNOB, FASTENER
(Superseded to V299000441)

$6.99

$

In Stock, Qty 17

0

21

Echo 90050000008

NUT M8

$0.99

$

In Stock, Qty 10

0

22

Echo V265000340

NUT, LOCK M8

$1.49

$

In Stock, Qty 20+

0

23

Echo 90060500005

WASHER, SPRING 5

$0.99

$

In Stock, only 2 left!

0

24

Echo C550000460

SHIELD, DEBRIS

$55.99

$

Usually ships in 2-4 days

0
