LE 260 - Shindaiwa Lawn Edger Fan Cover Parts Diagram

Lawn Edger

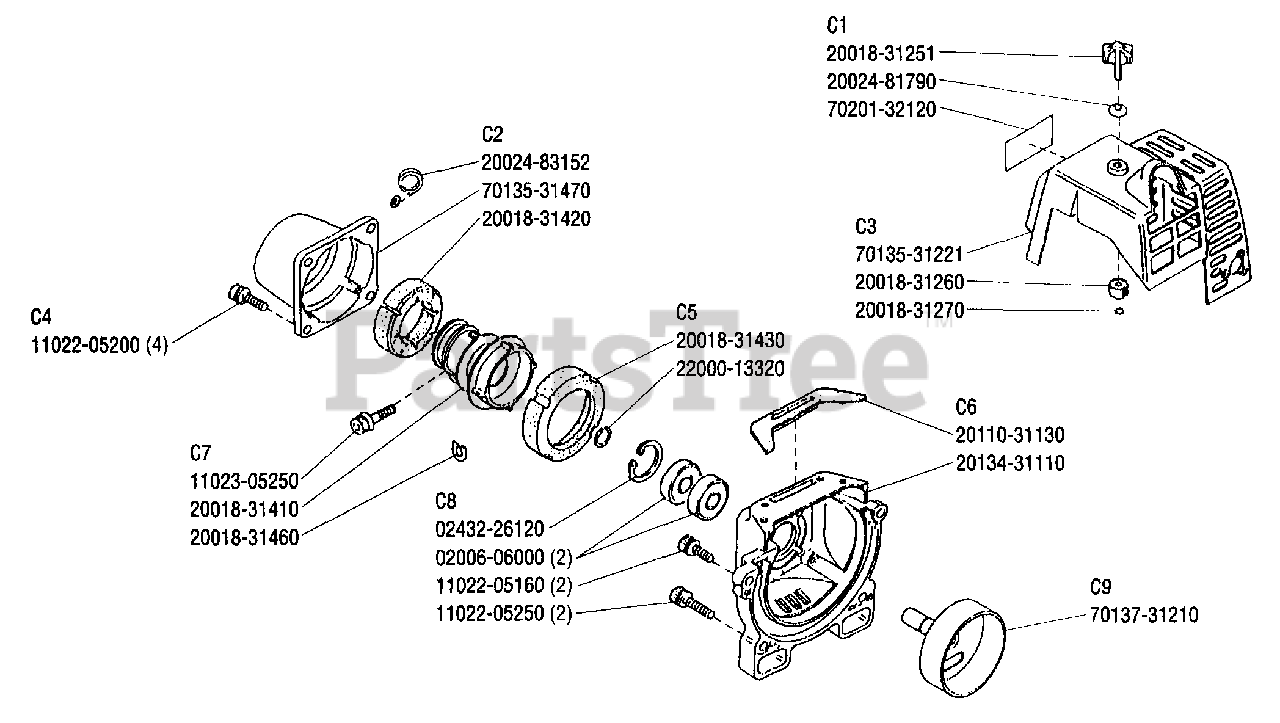

Fan Cover Parts Diagram

  • Title

C1-20018-31251

Echo 20018-31251

THUMBSCREW
(Superseded to V299000420)

$4.49

$

In Stock, only 2 left!

0

C1-20024-81790

Echo 20024-81790

WASHER, CONE M6
(Superseded to V347000030)

$1.49

$

In Stock, Qty 9

0

C1-70201-32120

Echo 70201-32120

NAME LABEL
(Superseded to X504002210)

$1.99

$

In Stock, Qty 8

0

C2-20018-31420

Echo 20018-31420

CUSHION, FRONT
(Superseded to V420002640)

$4.49

$

Usually ships in 2-4 days

0

C2-20024-83152

Echo 20024-83152

HOLDER, THROTTLE CABLE
(Superseded to C487000220)

$1.99

$

In Stock, only 2 left!

0

C2-70135-31470

Echo 70135-31470

COVER, AV CUSHION (RED)
(Superseded to A575000460)

$9.49

$

Usually ships in 2-4 days

0

C3-20018-31260

Echo 20018-31260

INSULATOR 5 MM
(Superseded to V353000430)

$1.99

$

In Stock, only 3 left!

0

C3-20018-31270

Echo 20018-31270

CLIP
(Superseded to V490000680)

$1.49

$

In Stock, Qty 5

0

C3-70135-31221

Echo 70135-31221

COVER, ENGINE
(Superseded to 20134-32110)

$18.99

$

Usually ships in 2-4 days

0

C4-11022-05200

Echo 11022-05200

BOLT M5×20
(Superseded to V203000350)

$1.49

$

In Stock, Qty 8

0

C5-20018-31430

Echo 20018-31430

HOLDER, REAR CUSHION
(Superseded to V420002650)

$5.49

$

In Stock, only 2 left!

0

C5-22000-13320

Echo 22000-13320

RING, SNAP WR10
(Superseded to V583000160)

$1.49

$

In Stock, Qty 20+

0

C6-20110-31130

Echo 20110-31130

CUSHION

$2.49

$

Usually ships in 2-4 days

0

C6-20134-31110

Echo 20134-31110

COVER, FAN
(Superseded to A172001190)

$53.99

$

Usually ships in 2-4 days

0

C7-20018-31410

Echo 20018-31410

JOINT
(Superseded to 20018-31411)

$22.99

$

In Stock, only 1 left!

0

C7-20018-31460

Echo 20018-31460

D-WASHER
(Superseded to V340000240)

$

$

Not available

C7-11023-05250

Echo 11023-05250

BOLT M5×25
(Superseded to V203000560)

$1.99

$

In Stock, only 3 left!

0

C8-02006-06000

Echo 02006-06000

BEARING, BALL 6000DDU
(Superseded to 90080206000)

$16.99

$

In Stock, Qty 15

0

C8-02432-26120

Echo 02432-26120

RING, SNAP Ø26
(Superseded to 9242426000)

$1.49

$

In Stock, Qty 5

0

C8-11022-05160

Echo 11022-05160

BOLT M5×16
(Superseded to V203000590)

$1.49

$

In Stock, Qty 6

0

C8-11022-05250

Echo 11022-05250

BOLT M5×25
(Superseded to V203000630)

$1.49

$

In Stock, Qty 20+

0

C9-70137-31210

Echo 70137-31210

DRUM, CLUTCH
(Superseded to A556000780)

$35.99

$

Usually ships in 2-4 days

0
