LE 260 - Shindaiwa Lawn Edger Guard Parts Diagram

Lawn Edger

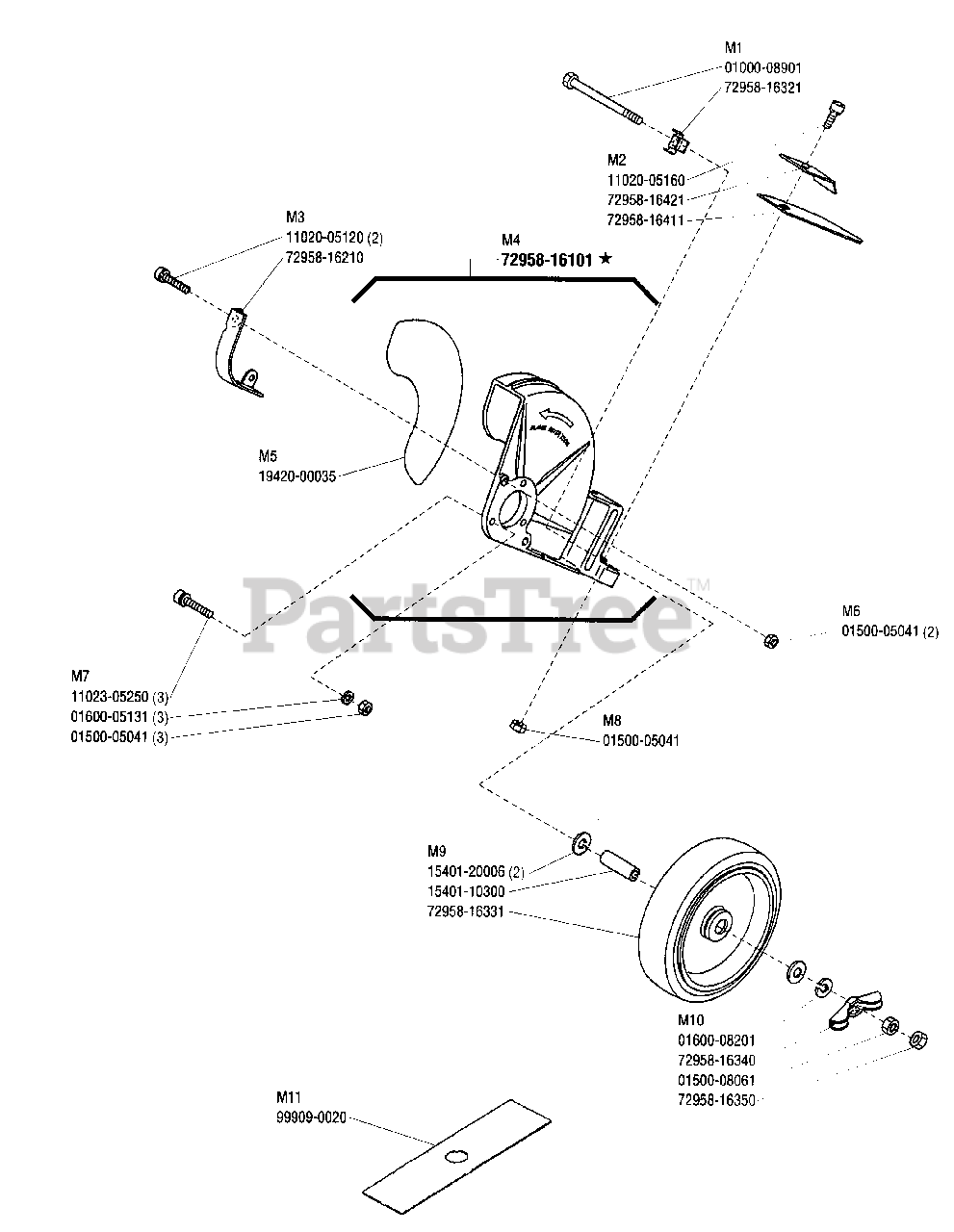

Guard Parts Diagram

  • Title

M1-72958-16321

Echo 72958-16321

BRACKET
(Superseded to V152002400)

$2.99

$

In Stock, Qty 14

0

M1-01000-08901

Echo 01000-08901

BOLT - 8X90
(Superseded to 90010008090)

$1.99

$

In Stock, only 3 left!

0

M2-72958-16411

Echo 72958-16411

DEFLECTOR
(Superseded to C550000470)

$5.49

$

Usually ships in 2-4 days

0

M2-72958-16421

Echo 72958-16421

PLATE
(Superseded to V152002410)

$8.49

$

In Stock, only 2 left!

0

M2-11020-05160

Echo 11020-05160

SCREW - 5X16
(Superseded to V203000720)

$1.49

$

In Stock, only 2 left!

0

M3-11020-05120

Echo 11020-05120

SCREW - 5X12
(Superseded to 11022-05120)

$1.49

$

In Stock, Qty 20+

0

M3-72958-16210

Echo 72958-16210

PROTECTOR
(Superseded to C557000100)

$9.99

$

In Stock, only 2 left!

0

M4-72958-16101

Echo 72958-16101

GUARD ASSY
(Superseded to 72958-16113)

$59.99

$

Usually ships in 2-4 days

0

M5-19420-00035

Echo 19420-00035

LABEL - TRADE
(Superseded to Discontinued)

$

$

Not available

M6-01500-05041

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

M7-01500-05041

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

M7-01600-05131

Echo 01600-05131

LOCKWASHER - 5
(Superseded to 90060500005)

$0.99

$

In Stock, Qty 10

0

M7-11023-05250

Echo 11023-05250

SCREW - 5X25
(Superseded to V203000560)

$1.99

$

In Stock, only 3 left!

0

M8-01500-05041

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

M9-15401-10300

Echo 15401-10300

COLLAR
(Superseded to V355000450)

$5.49

$

In Stock, only 2 left!

0

M9-15401-20006

Echo 15401-20006

WASHER
(Superseded to V306000300)

$1.49

$

In Stock, Qty 5

0

M9-72958-16331

Echo 72958-16331

WHEEL
(Superseded to C730000050)

$29.99

$

In Stock, only 2 left!

0

M10-01500-08061

Echo 01500-08061

NUT - 8
(Superseded to 90050000008)

$0.99

$

In Stock, Qty 20+

0

M10-01600-08201

Echo 01600-08201

LOCKWASHER - 8
(Superseded to 90060500008)

$0.99

$

In Stock, Qty 20+

0

M10-72958-16340

Echo 72958-16340

WINGNUT
(Superseded to V299000440)

$7.49

$

In Stock, Qty 8

0

M10-72958-16350

Echo 72958-16350

LOCKNUT
(Superseded to V265000340)

$1.49

$

In Stock, Qty 18

0

M11-99909-0020

Echo 99909-0020

BLADE, EDGER

$

$

Currently unavailable
