LE 261 - Shindaiwa Lawn Edger Throttle Lever/Outer Tube Parts Diagram

Lawn Edger

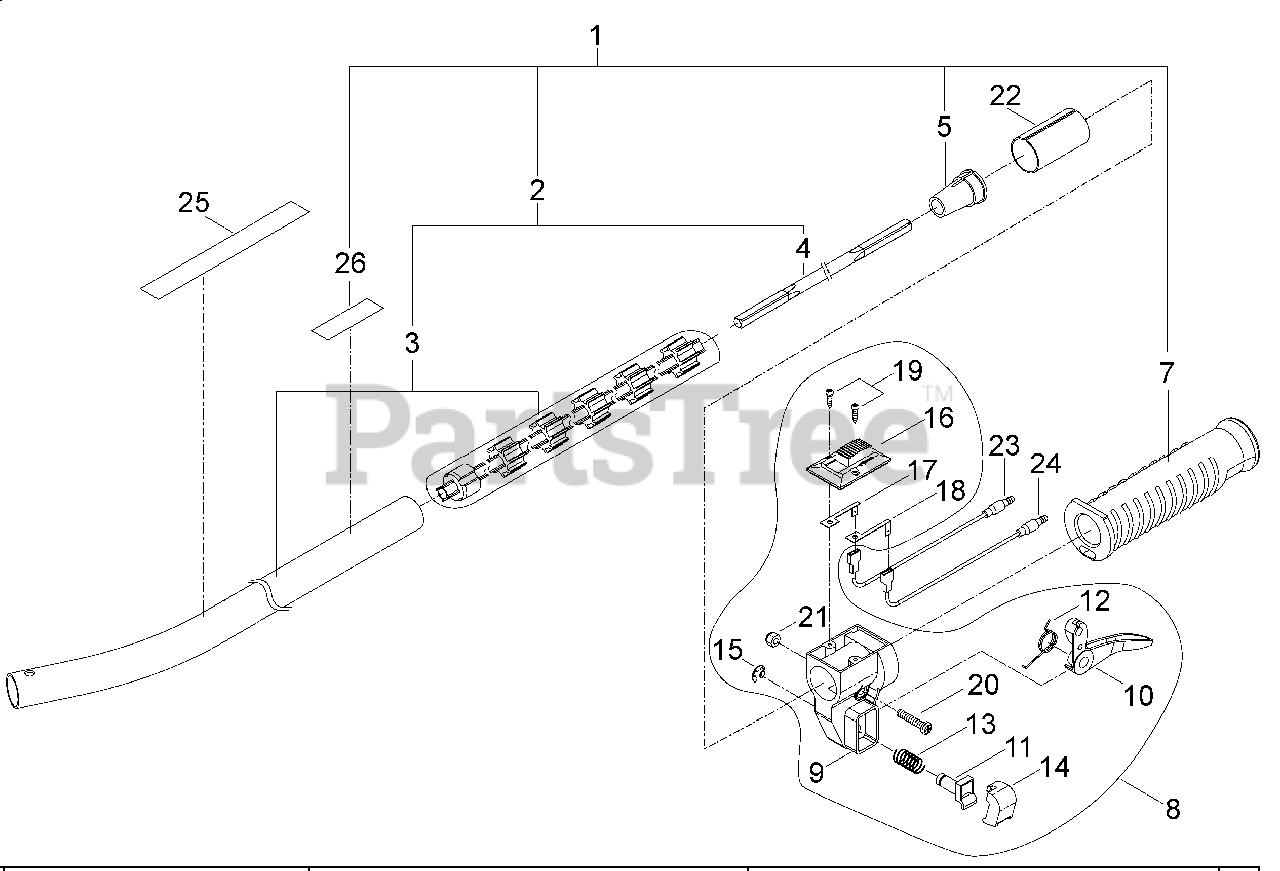

Throttle Lever/Outer Tube Parts Diagram

  • Title

1

Echo 80027

MAIN PIPE ASSY
(Superseded to P021042330)

$221.99

$

Usually ships in 2-4 days

0

2

Echo 72951-12191

MAIN PIPE ASSY
(Superseded to 81370)

$246.99

$

Usually ships in 2-4 days

0

3

Echo 72951-12310

PIPE - OUTER
(Superseded to C050001770)

$140.99

$

In Stock, only 2 left!

0

4

Echo 72951-12410

FLEXIBLE SHAFT
(Superseded to C506000180)

$12.99

$

In Stock, only 2 left!

0

5

Echo 72495-12130

SPACER
(Superseded to C511000090)

$1.99

$

Usually ships in 2-4 days

0

26

Echo 19422-00029

LABEL - CAUTION
(Superseded to X505005890)

$6.49

$

In Stock, only 2 left!

0

7

Echo 22422-12610

GRIP - REAR
(Superseded to C412000390)

$15.99

$

In Stock, only 1 left!

0

8

Echo 22421-14300

THROTTLE LEVER ASSY
(Superseded to C044000650)

$43.99

$

In Stock, only 2 left!

0

9

Echo 22421-14320

BODY
(Superseded to C472000090)

$18.99

$

In Stock, only 2 left!

0

10

Echo 22421-14330

TRIGGER, THROTTLE
(Superseded to C450000500)

$19.99

$

Usually ships in 2-4 days

0

11

Echo 72435-12740

SHAFT
(Superseded to C451000040)

$2.49

$

In Stock, only 1 left!

0

12

Echo 72435-12750

SPRING, TRIGGER
(Superseded to V452000480)

$2.49

$

In Stock, Qty 14

0

13

Echo 72435-12760

SPRING
(Superseded to V450000900)

$3.99

$

Usually ships in 2-4 days

0

14

Echo 72435-12770

BUTTON
(Superseded to C461000040)

$4.49

$

Usually ships in 2-4 days

0

15

Echo 72435-12780

RING, RETAINING
(Superseded to V583000150)

$1.49

$

In Stock, Qty 8

0

16

Echo 72447-14830

SWITCH ASSY
(Superseded to A045000300)

$15.99

$

Usually ships in 2-4 days

0

17

Echo 22421-14860

TERMINAL - GROUND
(Superseded to V486000170)

$1.49

$

Usually ships in 2-4 days

0

18

Echo 22421-14870

TERMINAL - GROUND
(Superseded to V486000180)

$1.49

$

Usually ships in 2-4 days

0

19

Echo 72447-14890

SCREW - TAPPING

$1.49

$

Usually ships in 2-4 days

0

20

Echo 11203-05250

SCREW - 5X20
(Superseded to 9157805025)

$1.49

$

In Stock, Qty 7

0

21

Echo 72447-14950

NYLON NUT
(Superseded to V263000150)

$1.99

$

In Stock, Qty 5

0

22

Echo 22036-14130

SPACER
(Superseded to V363000130)

$4.49

$

Usually ships in 2-4 days

0

23

Echo 72560-14520

WIRE
(Superseded to V485001560)

$2.49

$

In Stock, Qty 12

0

24

Echo 72560-14530

WIRE
(Superseded to V485001570)

$2.49

$

In Stock, only 3 left!

0

25

Echo 19420-00084

LABEL - TRADE
(Superseded to X504002780)

$3.99

$

In Stock, Qty 9

0
