LE 262 - Shindaiwa Lawn Edger (SN: U89112001001 - U89112999999) FUEL SYSTEM Parts Diagram

Lawn Edger

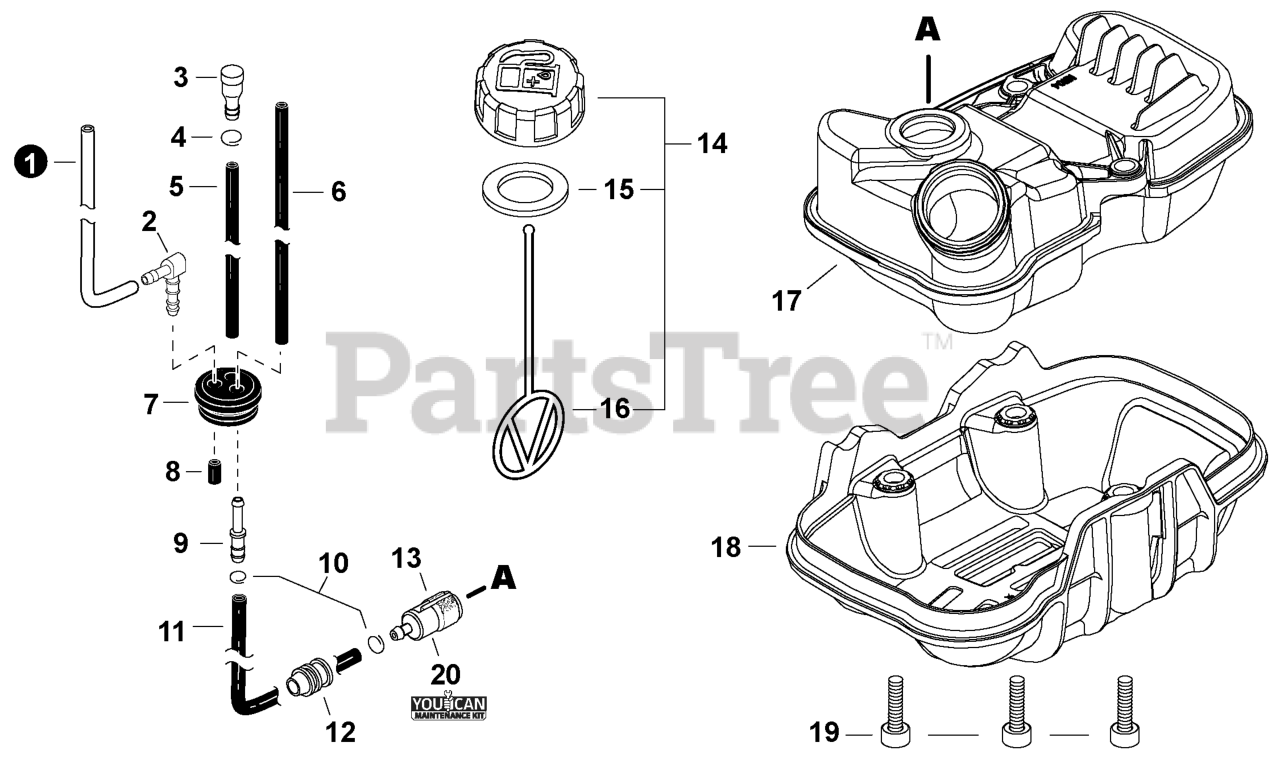

FUEL SYSTEM Parts Diagram

  • Title

1

Echo 13201040830

PIPE, FUEL 3x6x75 CLEAR

$2.49

$

In Stock, Qty 20+

0

2

Echo V186000500

CONNECTOR, PIPE

$0.99

$

In Stock, Qty 20+

0

3

Echo A356000230

VENT ASSY

$9.49

$

Usually ships in 2-4 days

0

4

Echo V490001230

CLIP 6.5 MM

$0.99

$

In Stock, Qty 20+

0

5

Echo 13201006531

PIPE, FUEL 3x6x85 BLACK

$2.99

$

In Stock, only 2 left!

0

6

Echo V471005640

PIPE, FUEL 3x5.5x80 BLACK

$4.49

$

Usually ships in 2-4 days

0

7

Echo 13211555931

GROMMET, FUEL

$2.99

$

In Stock, Qty 20+

0

9

Echo V186000520

CONNECTOR, PIPE 5x3.5

$0.99

$

In Stock, Qty 20+

0

10

Echo V490001240

CLIP 6

$0.99

$

In Stock, Qty 20+

0

11

Echo V471003661

PIPE, FUEL 3x5x115 BLACK

$1.99

$

In Stock, only 2 left!

0

12

Echo A413000190

BOOT

$2.49

$

Usually ships in 2-4 days

0

13

Echo A369000470

FILTER, FUEL

$9.99

$

In Stock, Qty 20+

0

14

Echo P021012211

CAP ASSY, FUEL

Note: Includes Items 14-15

$

$

Not available

15

Echo V107000190

GASKET, FUEL CAP

$1.49

$

In Stock, Qty 19

0

16

Echo A365000060

CONNECTOR, CAP L= 123

$1.49

$

In Stock, Qty 20+

0

17

Echo A350002810

TANK, FUEL

$

$

Currently unavailable

18

Echo A175000460

GUARD, FUEL TANK

$4.49

$

Usually ships in 2-4 days

0

19

Echo V253000990

BOLT 5x20

$1.99

$

In Stock, Qty 20+

0

20

Echo 84024Y

TUNE-UP KIT - YOUCANT

$44.99

$

In Stock, Qty 18

0
