LE 309 - Husqvarna Walk-Behind Edger (1996-01) Engine Assembly Parts Diagram

Walk-Behind Edger

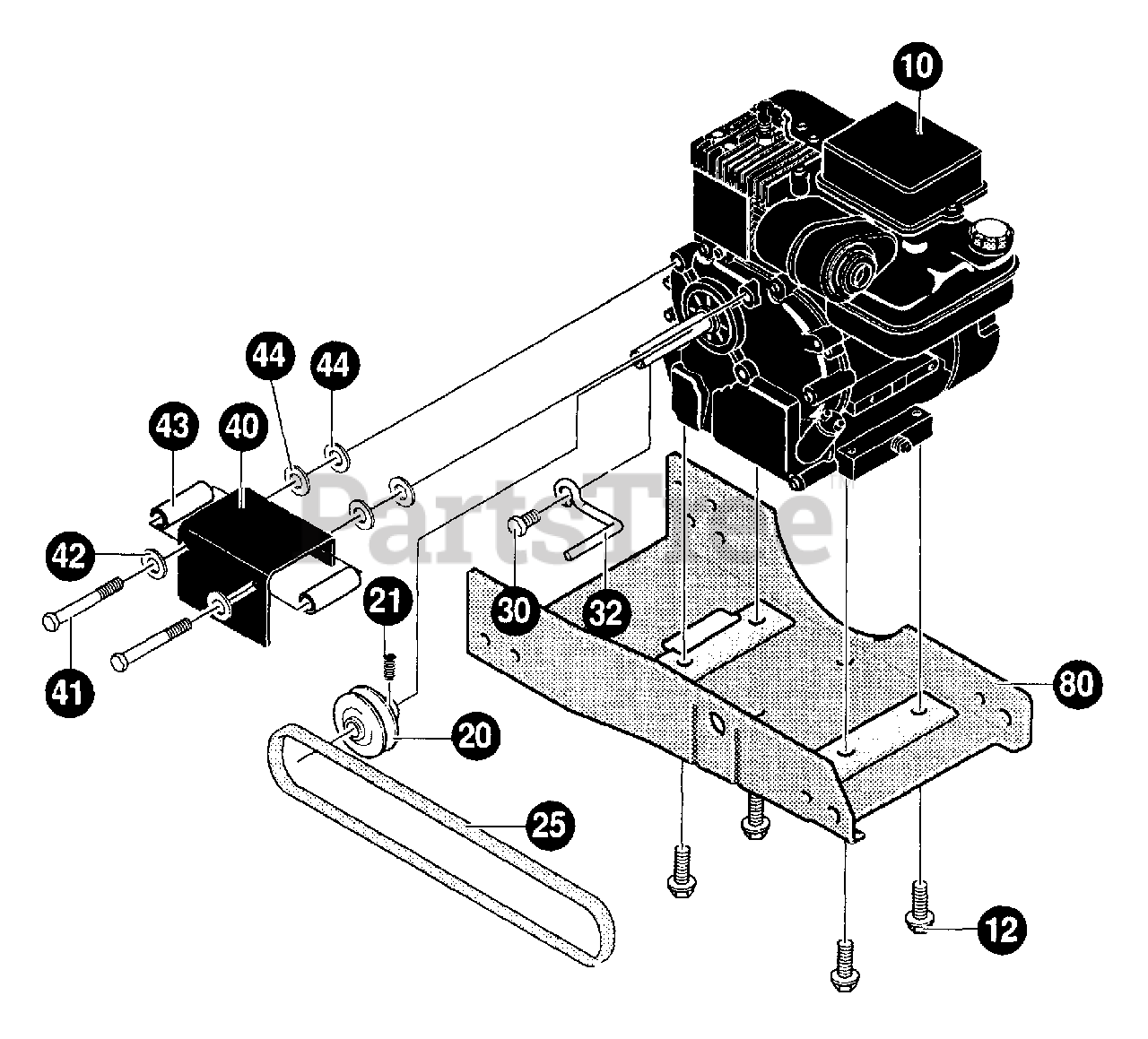

Engine Assembly Parts Diagram

  • Title

10

ENGINE

Note: (See Engine Manual)

$

$

Not available

12

Husqvarna 601000559

SCREW, 3/8-16X1.00

$

$

Not available

20

Husqvarna 601000510

PULLEY, ENGINE

$

$

Not available

21

Husqvarna 601000002

SCREW, 5/16-18X.25 ALHSETCPPL

$

$

Not available

25

Husqvarna 601000509

BELT, V 4L 32.60LG

$

$

Not available

30

Husqvarna 601000078

SCREW AND WASHER ASSEMBLY

$

$

Not available

32

Husqvarna 601000580

GUIDE, BELT

$

$

Not available

40

Husqvarna 601000366

COVER, ENGINE PULLEY

$

$

Not available

41

Husqvarna 601000080

SCREW, 5/16-24X3.00 IN.

$

$

Not available

42

Husqvarna 601000019

FLATWASHER, .344X.69X.065

$5.49

$

In Stock, only 1 left!

0

43

Husqvarna 601000590

SPACER, SLEV .335X.43X2.37

$

$

Not available

44

Husqvarna 601000019

WASHER, FLAT .344X.69X.065

$5.49

$

In Stock, only 1 left!

0

80

Husqvarna 601000364

FRAME, EDGER

$

$

Not available

Husqvarna 601001857

MANUAL, OWNER'S

Note: (NOT SHOWN)

$

$

Not available
