LE 309 - Husqvarna Walk-Behind Edger (1996-01) Engine Assembly Parts Diagram

Walk-Behind Edger

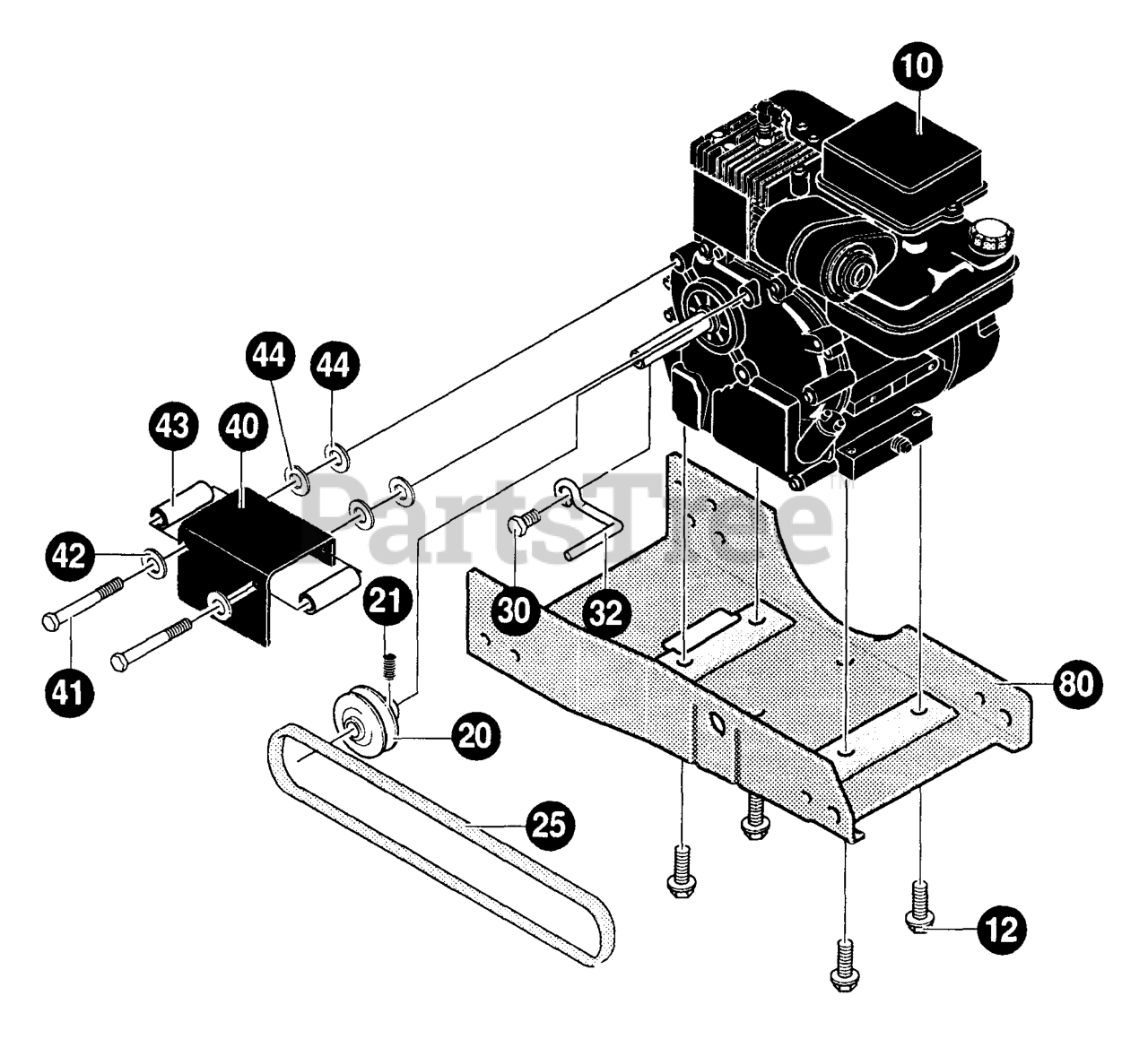

Engine Assembly Parts Diagram

  • Title

10

ENGINE

Note: (See Engine Manual)

$

$

Not available

12

Husqvarna 601000559

SCREW, 3/8-16X1.00 HXWAHD

$

$

Not available

20

Husqvarna 601000510

ENGINE PULLEY

$

$

Not available

21

Husqvarna 601000002

SCREW, 5/16-18X .25 ALHSE

$

$

Not available

25

Husqvarna 601000509

BELT, V4L 32.60LG

$

$

Not available

30

Husqvarna 601000078

SCREW, 5/16-24X .63 HHC

$

$

Not available

32

Husqvarna 601000580

BELT GUIDE

$

$

Not available

40

Husqvarna 601000366

COVER

$

$

Not available

41

Husqvarna 601000080

SCREW, 5/16-24X3.00 IN.

$

$

Not available

42

Husqvarna 601000019

WASHER, FLAT .344X .69X.

$

$

Not available

43

Husqvarna 601000590

SPACER

$

$

Not available

44

Husqvarna 601000019

WASHER, FLAT .344X .69X.

$

$

Not available

80

Husqvarna 601000364

FRAME

$

$

Not available

Husqvarna 601001857

SCREW, 1/4-20X1.25 HHC

Note: (NOT SHOWN)

$

$

Not available
