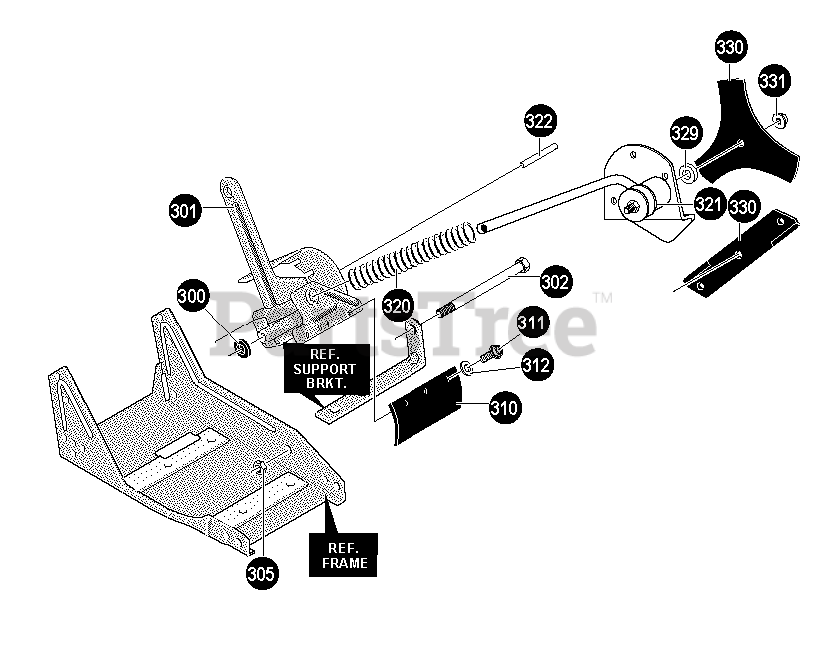

LE 359 - Husqvarna Walk-Behind Edger (1996-11) Blade Assy. Parts Diagram

Walk-Behind Edger

Blade Assy. Parts Diagram

  • Title

300

Husqvarna 601000021

WASHER, FLAT .531X1.06X.

$

$

Not available

301

Husqvarna 601002310

QUILL SUPT ASSY LE-359

$

$

Not available

302

Husqvarna 601002216

SHOULDER BOLT 3/8-16

$

$

Not available

305

Husqvarna 601000060

NUT, 3/8-16 REGHXCTRLK
(Superseded to 601002407)

$

$

Not available

310

Husqvarna 601002217

DEFLECTOR, RUBBER

$

$

Not available

311

Husqvarna 601002218

SCREW

$

$

Not available

312

Husqvarna 601002213

FLATWASHER

$

$

Not available

320

Husqvarna 601000582

SPRING
(Superseded to 601002314)

$

$

Not available

321

Husqvarna 601500005

Quill Assembly, Lrg Suppt.

$

$

Not available

322

Husqvarna 601002219

Spring Pin

$

$

Not available

329

Husqvarna 601000094

WASHER, FLAT .515X1.38X.

$

$

Not available

330

Husqvarna 601001974

BLADE, EDGER
(Superseded to 601002454)

$

$

Not available

Husqvarna 601002246

Triangular Blade Edger

$

$

Not available

331

Husqvarna 601000552

NUT, 1/2-20 WDFL

$10.99

$

Usually ships in 3-10 days
