LE 359 - Husqvarna Walk-Behind Edger (1996-11) Engine Parts Diagram

Walk-Behind Edger

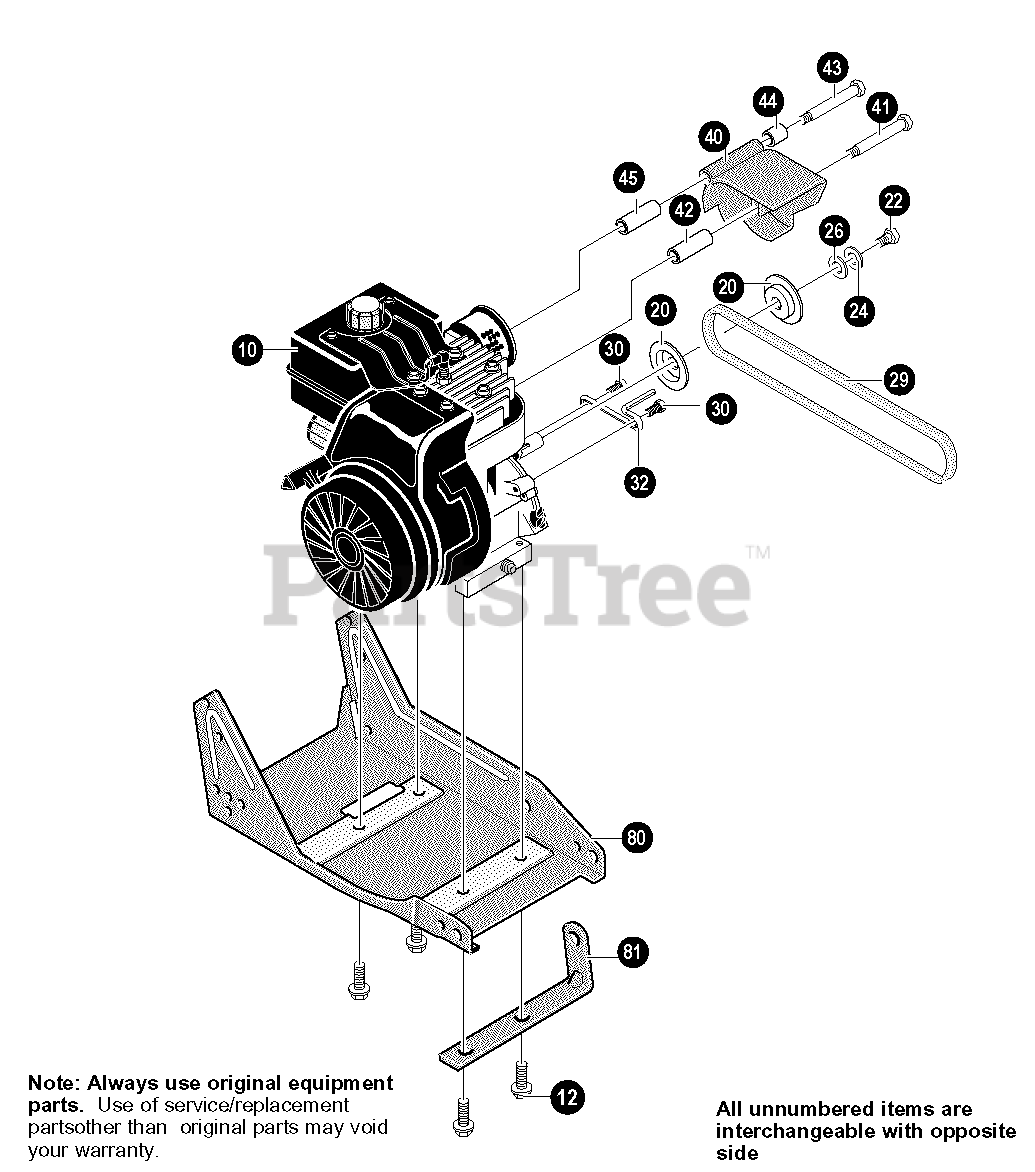

Engine Parts Diagram

  • Title
10

ENGINE

3.5HP

Note: See Engine Manual

$

$

Not available

12

Husqvarna 601002193

Screw, 3/8-16 x 1.00

$

$

Not available

20

Husqvarna 601002203

Pulley, Half V3L

$

$

Not available

22

Husqvarna 601001327

Screw, 5/16-24x 1.00

$

$

Not available

24

Husqvarna 601000023

Washer, .328x.60x.09

$

$

Not available

26

Husqvarna 601000547

Flatwasher .333x.87x.119

$

$

Not available

29

Husqvarna 601000509

Belt, V 4L 32.60LG

$

$

Not available

30

Husqvarna 601001965

Screw and Washer Assy

$

$

Not available

32

Husqvarna 601000580

Belt Guide

$

$

Not available

40

Husqvarna 601002204

Cover, Engine Pulley

$

$

Not available

41

Husqvarna 601000080

Screw, 5/16-24x3.00

$

$

Not available

42

Husqvarna 601002205

Spacer, Sleeve .335x.431x2.50

$

$

Not available

43

Husqvarna 601002206

Screw, 5/16-24x3.75

$

$

Not available

44

Husqvarna 601002207

Spacer, .322ID .562 OD

$

$

Not available

45

Husqvarna 601002205

Spacer, Sleeve .335x.431x2.50

$

$

Not available

80

Husqvarna 601002208

Frame, Assy Edger

$

$

Not available

$

$

Not available

Husqvarna 601002194

Owner's Manual

$

$

Not available
