LE 389 - Husqvarna Walk-Behind Edger (1996-11) Blade Assembly Parts Diagram

Walk-Behind Edger

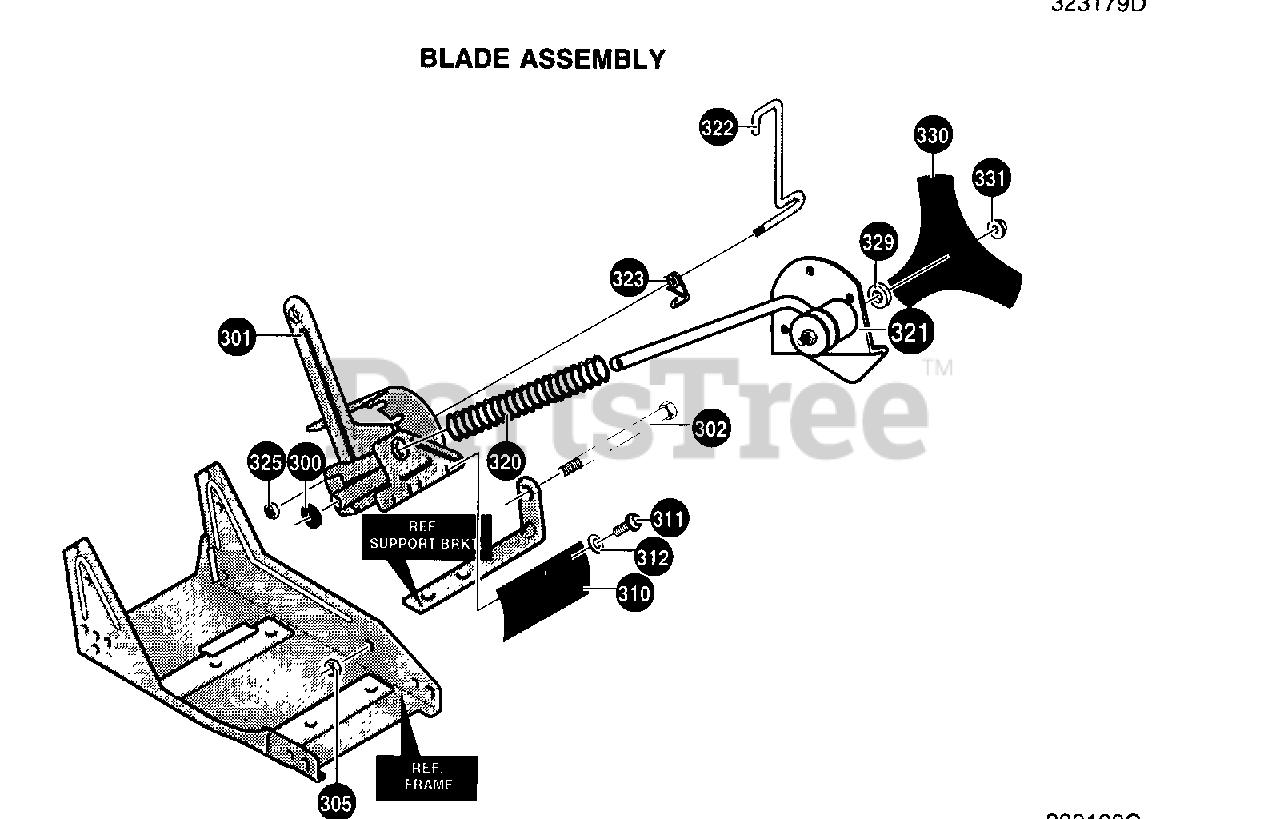

Blade Assembly Parts Diagram

  • Title

300

Husqvarna 601000021

Flatwasher, .531 x 1.06 x .095

$

$

Not available

301

Husqvarna 601002196

Quill Suppt. Assy.

$

$

Not available

302

Husqvarna 601002216

Shoulder Bolt 3/8-16

$

$

Not available

305

Husqvarna 601000060

Nut, 3/8-16 Reghexctrlk
(Superseded to 601002407)

$

$

Not available

310

Husqvarna 601002217

Deflector, Rubber

$

$

Not available

311

Husqvarna 601002218

Screw, 10-16 x .50 Tap

$7.49

$

Usually ships in 3-10 days

0

312

Husqvarna 601002213

Flatwasher, .203 x .56 x .040

$

$

Not available

320

Husqvarna 601000582

Compression Spring
(Superseded to 601002314)

$11.53

$

Usually ships in 3-10 days

0

321

Husqvarna 601002197

Quill Assembly, Lrg Suppt

$

$

Not available

322

Husqvarna 601002244

Index Lever

$

$

Not available

323

Husqvarna 601002245

Torsion Spring

$

$

Not available

325

Husqvarna 601000059

Nut, 5/16-18 Reghexctrlk

$6.99

$

In Stock, only 2 left!

0

329

Husqvarna 601000094

Flatwasher, .515 x 1.38 x .119

$

$

Not available

330

Husqvarna 601002246

Blade Edger

$

$

Not available

331

Husqvarna 601000552

Nut, 1/-20 Wdfl

$10.99

$

In Stock, only 1 left!

0
