LE 389 - Husqvarna Walk-Behind Edger (1996-11) Engine Assembly Parts Diagram

Walk-Behind Edger

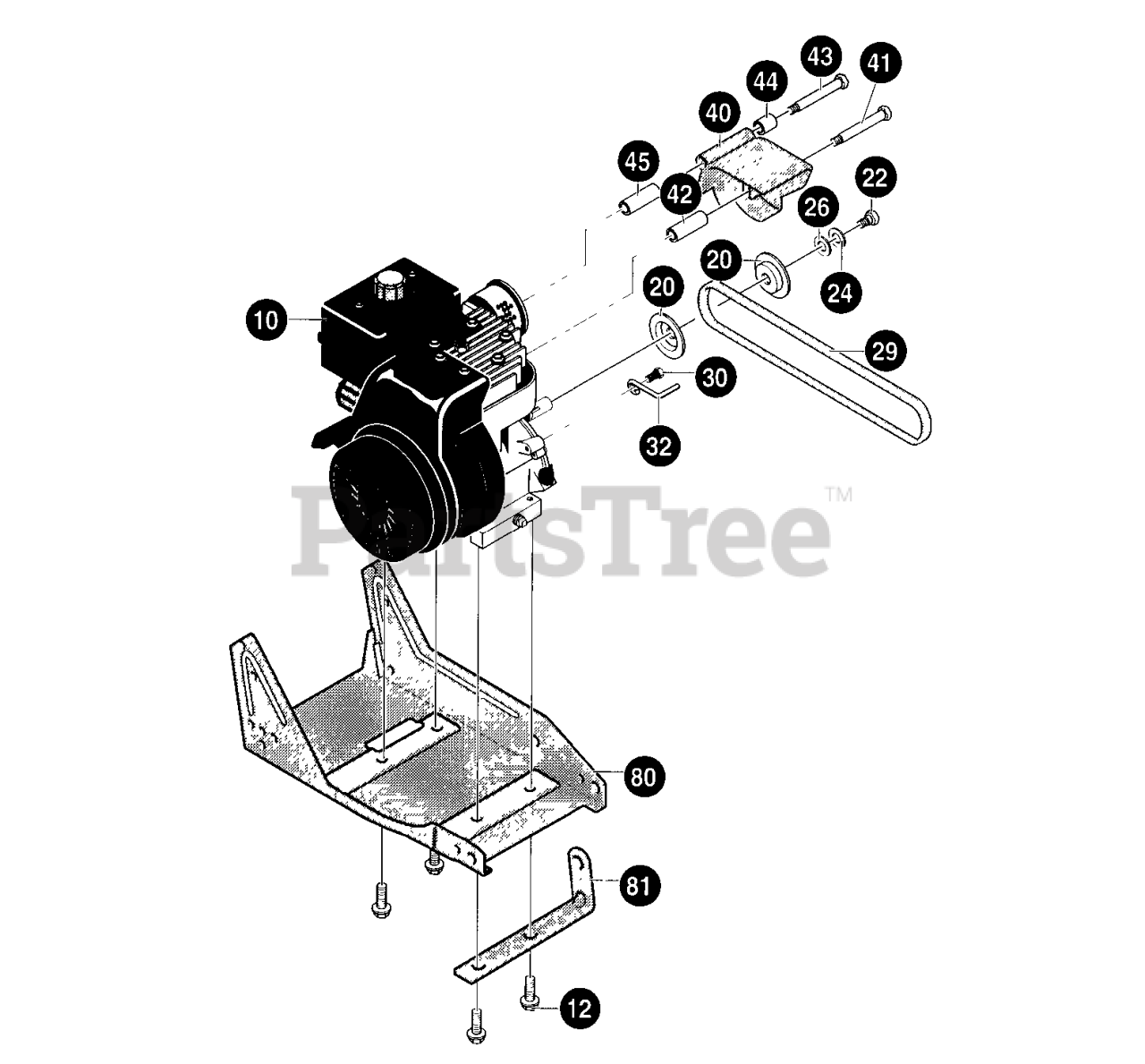

Engine Assembly Parts Diagram

  • Title

10

ENGINE 3.8HP

Note: (See Engine Manual)

$

$

Not available

12

Husqvarna 601002193

SCREW, 3/8-16X1.00

$

$

Not available

20

Husqvarna 601001327

SCREW

$

$

Not available

22

Husqvarna 601001327

SCREW

$

$

Not available

24

Husqvarna 601000023

WASHER, HVSPTLK .328X.60X

$

$

Not available

26

Husqvarna 601000547

WASHER, FLAT .333X .87X.

$

$

Not available

29

Husqvarna 601000509

BELT, V4L 32.60LG

$

$

Not available

30

Husqvarna 601001965

SCREW & WASHER ASSY

$

$

Not available

32

Husqvarna 601000580

BELT GUIDE

$

$

Not available

40

Husqvarna 601002204

COVER, ENGINE PULLEY

$

$

Not available

41

Husqvarna 601000080

Screw, 5/16-24 x 3.00

$

$

Not available

42

Husqvarna 601000080

Spacer, Sleeve .335 x.431 x 2.50

$

$

Not available

43

Husqvarna 601002206

SCREW

$

$

Not available

44

Husqvarna 601002207

Spacer,.322 ID 562 OD

$

$

Not available

45

Husqvarna 601002205

Spacer, Sleeve .335 x .431 x 2.50

$

$

Not available

80

Husqvarna 601002208

FRAME, ASSY EDGER

$

$

Not available

81

Husqvarna 601002209

Strap

$

$

Not available

Husqvarna 601002232

Owner's Manual

$

$

Not available
