LE 389 - Husqvarna Walk-Behind Edger (1996-11) Front Wheel Bracket Assembly Parts Diagram

Walk-Behind Edger

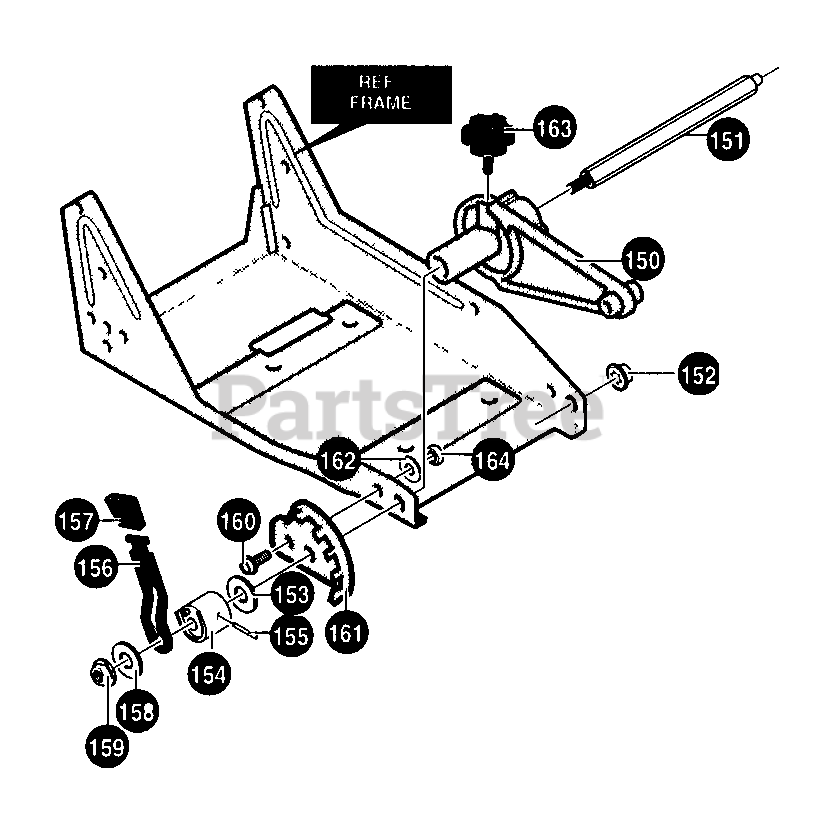

Front Wheel Bracket Assembly Parts Diagram

  • Title

150

Husqvarna 601002233

Arm, Front Wheel

$

$

Not available

151

Husqvarna 601002234

Rod, Front Mount Curb Hopper

$

$

Not available

152

Husqvarna 601002235

Pushnut, Washer

$

$

Not available

153

Husqvarna 601002236

Washer, Plastic

$

$

Not available

154

Husqvarna 601002237

Spacer, Height Adjust

$

$

Not available

155

Husqvarna 601002238

Pin, Spring .187 Dia x 1.50Lg

$

$

Not available

156

Husqvarna 601002239

Lever, Height Adjust

$

$

Not available

157

Husqvarna 601002240

Knob, Rectangle

$

$

Not available

158

Husqvarna 601000094

Flatwasher .515 x 1.38 x .119PL

$

$

Not available

159

Husqvarna 601002241

Nut, 3/8-16 Hwdfllk Mack

$

$

Not available

160

Husqvarna 601002227

Screw, 5/16-18 x .63

$

$

Not available

161

Husqvarna 601002242

Plate, Height Adjust Quad

$

$

Not available

162

Husqvarna 601000019

Flatwasher, .344 x .69 x .065

$3.49

$

In Stock, only 1 left!

0

163

Husqvarna 601002243

Knob, W/5/16-18 Stud

$

$

Not available

164

Husqvarna 601000059

Nut, 5/16-18 Reghexctrlk

$6.99

$

In Stock, only 2 left!

0
