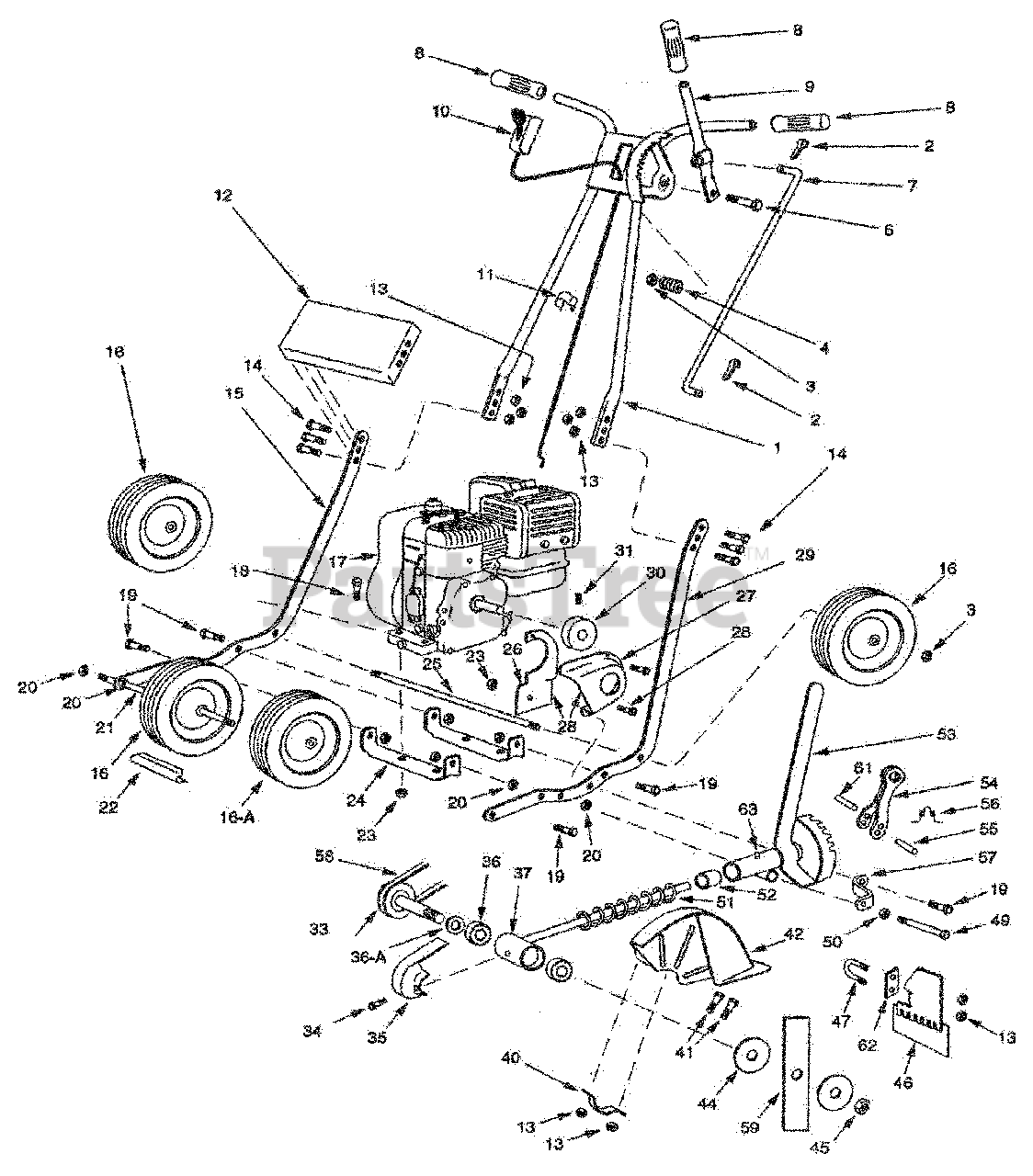

LE 475 (966951101) - Husqvarna Walk-Behind Edger (2008-04) Lawn Edger And Trimmer Parts Diagram

Walk-Behind Edger

Lawn Edger And Trimmer Parts Diagram

  • Title

1

Husqvarna 505289901

Handle

$136.99

$

Usually ships in 3-10 days

0

2

Husqvarna 505289902

Pin, Cotter 1/8 x 3/4 (2 Req.)

$3.49

$

Usually ships in 3-10 days

0

3

Husqvarna 505289903

Nut Lock Hex 7/16" - 14 (4 Req.)

$3.49

$

Usually ships in 3-10 days

0

4

Husqvarna 505289904

Spring

$20.99

$

Usually ships in 3-10 days

0

6

Husqvarna 505289905

Bolt, Hex 7/16 - 14 x 2

$4.99

$

In Stock, only 4 left!

0

7

Husqvarna 505289906

Rod, Clutch & Depth

$37.99

$

Usually ships in 3-10 days

0

8

Husqvarna 505289907

Grip (3 Req.)

$6.99

$

Usually ships in 3-10 days

0

9

Husqvarna 505289908

Lever, Clutch & Depth

$37.99

$

Usually ships in 3-10 days

0

10

Husqvarna 505289909

Throttle Control (3 HP Ball Brg) (40-3/4)

$62.99

$

Usually ships in 3-10 days

0

11

Husqvarna 505289910

Clip, Throttle Cable

$3.49

$

Usually ships in 3-10 days

0

12

Husqvarna 505289911

Cross Brace for Handle

$

$

Not available

13

Husqvarna 505289912

Nut 1/4-28 Hex (10 Req.)

$3.49

$

Usually ships in 3-10 days

0

14

Husqvarna 505289913

Bolt 1/4-28 x 7/8 hex (6 Req.)

$3.49

$

Usually ships in 3-10 days

0

15

Husqvarna 505289914

Frame, Right Hand 8"

$56.99

$

Usually ships in 3-10 days

0

16

Husqvarna 505289915

Hub Cap for 7" & 8" Rear Wheels

$

$

Not available

Husqvarna 505289916

8" Rear Wheel Complete w/Bearings, Wide Tire & Hub Cap

$112.99

$

Usually ships in 3-10 days

0

Husqvarna 505289917

8" Rear Wheel Outside Bearing Only

$

$

Not available

Husqvarna 505289918

8" Rear Wheel Inside Bearing Only. Also for 8" Front Wheel.

Note: (2 needed/front)

$11.99

$

Usually ships in 3-10 days

0

16A

Husqvarna 505289919

8" Front Wheel Complete w/Bearing & Wide Tire

$

$

Not available

Husqvarna 505289920

8" Tire Only

$56.99

$

Usually ships in 3-10 days

0

Husqvarna 505289921

8" Rear Wheel Rim Only

$

$

Not available

Husqvarna 505289922

8" Front Wheel Rim Only

$

$

Not available

17

Engine

Note: (Briggs & Stratton Dist.)

$

$

Not available

18

Husqvarna 505289924

Bolt 5/16-24 x 1-1/2 (4 Req.)

$

$

Not available

19

Husqvarna 505289925

Bolt 5/16-24 x 7/8 Hex (5 Req.)

$3.49

$

In Stock, only 1 left!

0

20

Husqvarna 505289926

Nut 7/16-14 Hex (3 Req.)

$3.49

$

In Stock, Qty 10

0

21

Husqvarna 505289927

8" Front Axle

$26.99

$

Usually ships in 3-10 days

0

22

Husqvarna 505289928

8" Front Wheel Spacer (2-13/16" Use With 7075-7 Wheels)

$22.99

$

In Stock, only 1 left!

0

23

Husqvarna 505289929

Nut 5/16-24 Hex (9 Req.)

$

$

Not available

24

Husqvarna 505289930

8" Fram Crossmember

$

$

Not available

25

Husqvarna 505289931

8" Rear Axle (13-5/8") (Use with 7058 wheels)

$43.99

$

Usually ships in 3-10 days

0

26

Husqvarna 505289932

Bracket, Engine Pulley Guard

$45.99

$

Usually ships in 3-10 days

0

27

Husqvarna 505289933

Guard, Engine Pulley

$26.99

$

Usually ships in 3-10 days

0

28

Husqvarna 505289934

Engine Pulley Guard & Bracket Complete

$45.99

$

Usually ships in 3-10 days

0

28

Husqvarna 505289935

Screw #10 x x1/2 Sheet Metal (4 Req.)

$3.49

$

Usually ships in 3-10 days

0

29

Husqvarna 505289936

8" Fram, Left Hand

$56.99

$

Usually ships in 3-10 days

0

30

Husqvarna 505289937

Engine Pulley

$22.99

$

Usually ships in 3-10 days

0

31

Husqvarna 525594401

Set Screw 5/16-24x5/16

$9.49

$

In Stock, only 1 left!

0

33

Husqvarna 505289938

Cutterhead Pulley & Shaft Compl.

$112.99

$

Usually ships in 3-10 days

0

34

Husqvarna 505289939

Screw 1/4-20 x 1/2 Hex

$3.49

$

Usually ships in 3-10 days

0

35

Husqvarna 505289940

Cutterhead Pulley Guard

$31.99

$

In Stock, only 4 left!

0

36

Husqvarna 505289941

Cutterhead Bearing (2 Req.)

$50.99

$

In Stock, only 2 left!

0

36A

Husqvarna 505289943

Spring Washer (New 01/87)

$4.99

$

In Stock, only 1 left!

0

37

Husqvarna 505289942

Mandrel, Head

$74.99

$

Usually ships in 3-10 days

0

40

Husqvarna 505289944

Clamp, Blade Guard

$5.99

$

Usually ships in 3-10 days

0

41

Husqvarna 505289945

Bolt 1/4-28 x 1-1/2 Hex (2 Req.)

$3.49

$

Usually ships in 3-10 days

0

42

Husqvarna 505289946

Blade Guard Main

$79.99

$

In Stock, only 1 left!

0

Husqvarna 505289947

Complete Blade Guard

$113.99

$

Usually ships in 3-10 days

0

44

Husqvarna 505289948

Washer, Friction (2 Req.)

$9.49

$

In Stock, Qty 6

0

45

Husqvarna 505289949

Nut 1/2-20

$3.49

$

In Stock, Qty 8

0

46

Husqvarna 505289950

Deflector, Debris Sweep

$45.99

$

Usually ships in 3-10 days

0

47

Husqvarna 505289951

U-Clamp

$6.99

$

Usually ships in 3-10 days

0

Husqvarna 505289952

Complete Debris Guard

$

$

Not available

49

Husqvarna 505289953

Pivot Bolt

$

$

Not available

50

Husqvarna 505289954

Flat Washer 7/16

$

$

Not available

51

Husqvarna 505289955

Spring, Head Recoil

$26.99

$

Usually ships in 3-10 days

0

52

Husqvarna 505289956

Cup

$

$

Not available

53

Husqvarna 505289957

Body, Cutterhead

$125.99

$

Usually ships in 3-10 days

0

54

Husqvarna 505289958

Lever, Angle Shifting

$21.99

$

Usually ships in 3-10 days

0

55

Husqvarna 505289959

Pin 5/16 x 2

$3.49

$

Usually ships in 3-10 days

0

56

Husqvarna 505289960

Spring

$7.99

$

Usually ships in 3-10 days

0

57

Husqvarna 505289961

Brace Cutterhead

$22.99

$

Usually ships in 3-10 days

0

58

Husqvarna 505289962

Drive Belt (4L-300)

$31.99

$

In Stock, only 2 left!

0

59

Husqvarna 505289963

Cutting Blade

$12.99

$

In Stock, Qty 20+

0

61

Husqvarna 505289964

1-1/4 Pin

$3.49

$

Usually ships in 3-10 days

0

62

Husqvarna 505289965

U-Clamp Spacer

$4.99

$

Usually ships in 3-10 days

0

63

Husqvarna 505289966

Grease Fitting

$6.99

$

Usually ships in 3-10 days

0

Husqvarna 505289967

Handle and Wheel Bearing

$

$

Not available

Husqvarna 505289968

Cutting Head Complete

Note: (Inc. No 33,53,51,52,54,55,56,61,37,(2)63, (2)36)

$336.99

$

Usually ships in 3-10 days

0

Husqvarna 505289969

LE475 Decal

$

$

Not available
