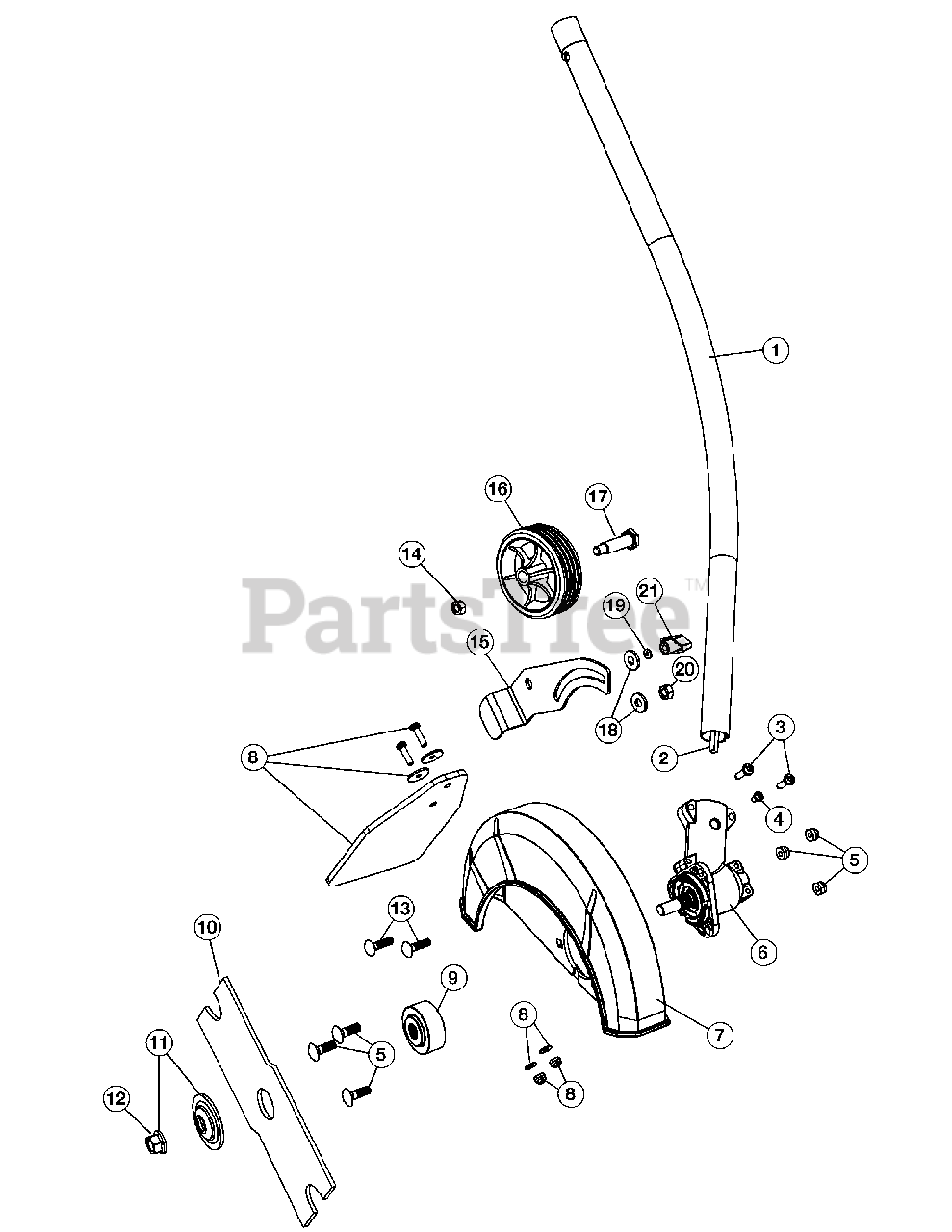

LE 720 (41AJLE-C902) - TrimmerPlus Lawn Edger Attachment General Assembly Parts Diagram

Lawn Edger Attachment

General Assembly Parts Diagram

  • Title

1

MTD 753-04259

Boom Assembly

$54.99

$

Usually ships in 3-6 days

0

2

MTD 753-05267

Drive Shaft

$39.99

$

In Stock, Qty 13

0

3

MTD 791-182195

Boom Mounting Hardware

$6.99

$

In Stock, Qty 15

0

4

MTD 791-182519

Anti-Rotation Screw

$4.99

$

In Stock, Qty 20+

0

5

MTD 753-1217

Guard Mounting Hardware

$2.99

$

In Stock, Qty 11

0

6

MTD 753-04258

Gearbox Assembly

$100.99

$

Usually ships in 3-6 days

0

7

MTD 753-04260

Blade Guard

$53.99

$

In Stock, only 4 left!

0

8

MTD 753-04262

Deflector w/Hardware

$

$

Not available

9

MTD 753-04261

Spacer
(Superseded to 792-10785)

$2.99

$

In Stock, Qty 10

0

10

MTD 791-613223B

Blade

$12.99

$

Usually ships in 3-6 days

0

11

MTD 791-147490

Blade Clamp Washer

$10.99

$

In Stock, Qty 7

0

12

MTD 712-04105

Blade Retainer Nut

$9.99

$

In Stock, only 3 left!

0

13

MTD 753-04270

Wheel Bracket Mounting Bolt

$4.49

$

Usually ships in 3-6 days

0

14

MTD 753-04264

Nut
(Superseded to 912-3000)

$3.99

$

In Stock, Qty 20+

0

15

MTD 753-04265

Edger Guide

$

$

Not available

16

MTD 791-181242

Wheel

$

$

Not available

17

MTD 791-180776

Shoulder Bolt
(Superseded to 5556)

$1.99

$

Usually ships in 3-6 days

0

18

MTD 791-182216

Washer

$

$

Not available

19

MTD 936-0329

Washer

$4.49

$

In Stock, Qty 13

0

20

MTD 712-0324

Nut

$3.49

$

In Stock, Qty 20+

0

21

MTD 791-182214

Edger Guide Knob

$

$

Not available
